| Item | Part No. | Part Name | Qty | Serial No. |
| (104-15-00080) | TRANSMISSION ASS'Y | 64856- | ||
| (\0\104-15-00040) | TRANSMISSION ASS'Y | 60001-64855 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 TO 2517 AND 2553, 2563. | ||||
| (104-15-00510) | TRANSMISSION ASS'Y | 64856- | ||
| (\0\104-15-00410) | TRANSMISSION ASS'Y | 60001-64855 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 TO 2515 AND 2517. | ||||

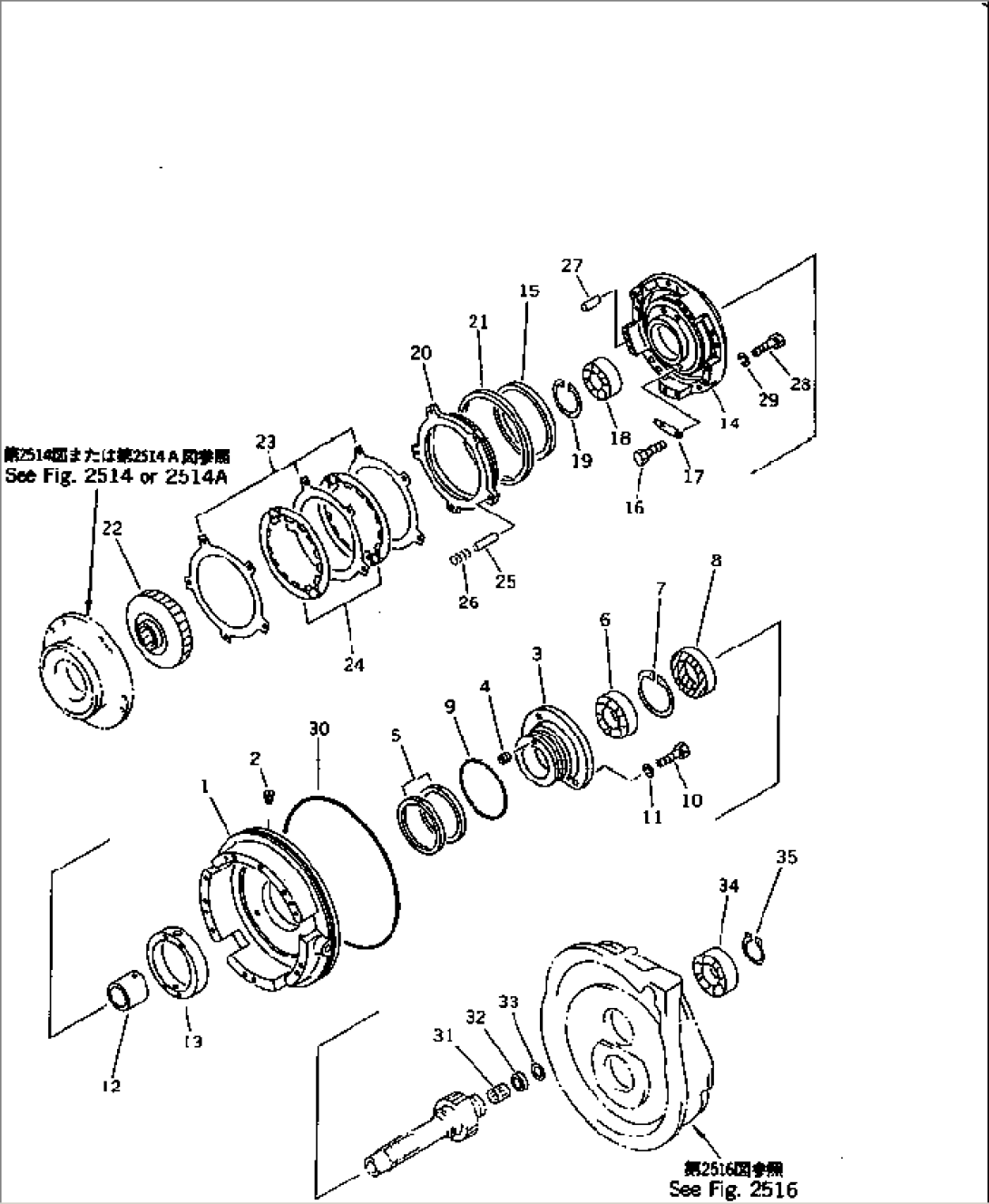

| 104-15-00540 | HOUSING ASS'Y,1ST | 64856- | ||
| \0\104-15-00130 | HOUSING ASS'Y,1ST | 60001-64855 | ||
| 1 | \6\ | HOUSING | 64856- | |
| 1 | \6\ | HOUSING | 60001-64855 | |
| 2 | 07043-00108 | PLUG | 60001- | |
| 3 | 104-15-31210 | CASE | 64856- | |
| 3 | 104-15-21211 | CASE | 60001-64855 | |
| 4 | 175-15-11230 | PLUG | 60001- | |
| 5 | 07018-20954 | RING,SEAL | 60001- | |
| 6 | 06000-06009 | BEARING | 60001- | |
| 7 | 04065-07525 | RING,SNAP | 60001- | |
| 8 | 07011-10058 | SEAL,OIL | 60001- | |
| 9 | 07000-02105 | O-RING | 60001- | |
| 10 | 01010-51020 | BOLT | 64856- | |
| 10 | 01010-51025 | BOLT | 60001-64855 | |
| 11 | 01602-21030 | WASHER,SPRING | 60001- | |
| 12 | 104-15-32160 | SPACER | 64856- | |
| 12 | 104-15-22161 | SPACER | 60001-64855 | |
| 13 | 113-15-22390 | COLLAR | 60001- | |
| 14 | 104-15-32340 | HOUSING | 64856- | |
| 14 | 104-15-22340 | HOUSING | 60001-64855 | |
| 15 | 568-15-12860 | SEAL,RING | 60001- | |
| 16 | 01010-50820 | BOLT | 60001- | |
| 17 | 113-15-22370 | LOCK | 60001- | |
| 18 | 06000-06008 | BEARING | 60001- | |
| 19 | 04065-06825 | RING,SNAP | 60001- | |
| 20 | 113-15-22780 | PISTON,1ST | 60001- | |
| 21 | 287-15-19210 | RING,SEAL | 60001- | |
| 22 | 104-15-32270 | HUB | 64856- | |
| 22 | 104-15-22270 | HUB | 60001-64855 | |
| 23 | 113-15-22750 | PLATE | 60001- | |
| 24 | 103-15-32711 | DISC | 62960- | |
| 24 | 103-15-32710 | DISC | 60001-62959 | |
| 25 | 104-15-21280 | PIN | 60001- | |
| 26 | 104-15-22930 | SPRING | 60001- | |
| 27 | 04020-01024 | PIN,DOWEL | 60001- | |
| 28 | 01010-80845 | BOLT | 60001- | |
| 29 | 01602-20825 | WASHER,SPRING | 60001- | |
| 30 | 07000-05270 | O-RING | 60001- | |
| 31 | 113-15-29440 | BEARING,NEEDLE | 60001- | |
| 32 | 113-15-39120 | SEAL,DUST | 60001- | |
| 33 | 113-15-29520 | RING,SNAP | 60001- | |
| 34 | 06042-00208 | BEARING | 60001- | |
| 35 | 103-15-29510 | RING,SNAP | 60001- |
