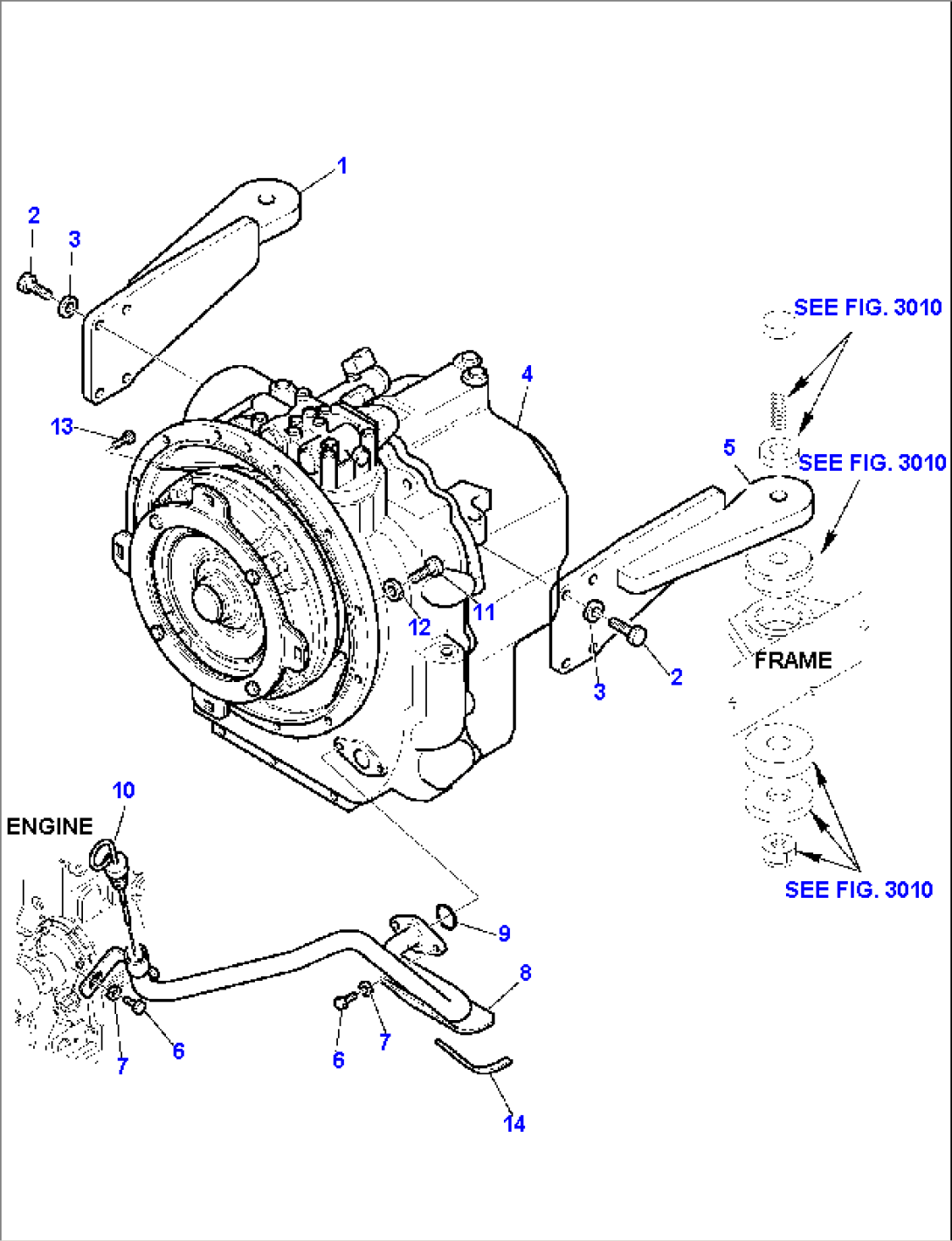

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-01-11621 | SUPPORT, R.H. | F10003- | |
| 2 | 01016-51235 | BOLT | F10003- | |
| 3 | 01643-11232 | WASHER | F10003- | |
| 4 | (42N-15-12300) | TRANSMISSION, ASSY. | F10003- | |
| 5 | 42N-01-11611 | SUPPORT, L.H. | F10003- | |
| 6 | 01010-80825 | BOLT | F10003- | |
| 7 | 01643-10823 | WASHER | F10003- | |
| 8 | 42N-16-11311 | PIPE | F10003- | |
| 9 | 02890-01037 | O-RING | F10003- | |
| 10 | 42N-16-11320 | GAUGE, OIL LEVEL | F10003- | |
| 11 | 01016-51035 | BOLT | F10003- | |
| 12 | 01643-11032 | WASHER | F10003- | |
| 13 | 01252-71025 | BOLT | F10003- | |
| 14 | 42N-16-11730 | GASKET | F10003- | |
| SEE FIG. 3010 |
