| Item | Part No. | Part Name | Qty | Serial No. |

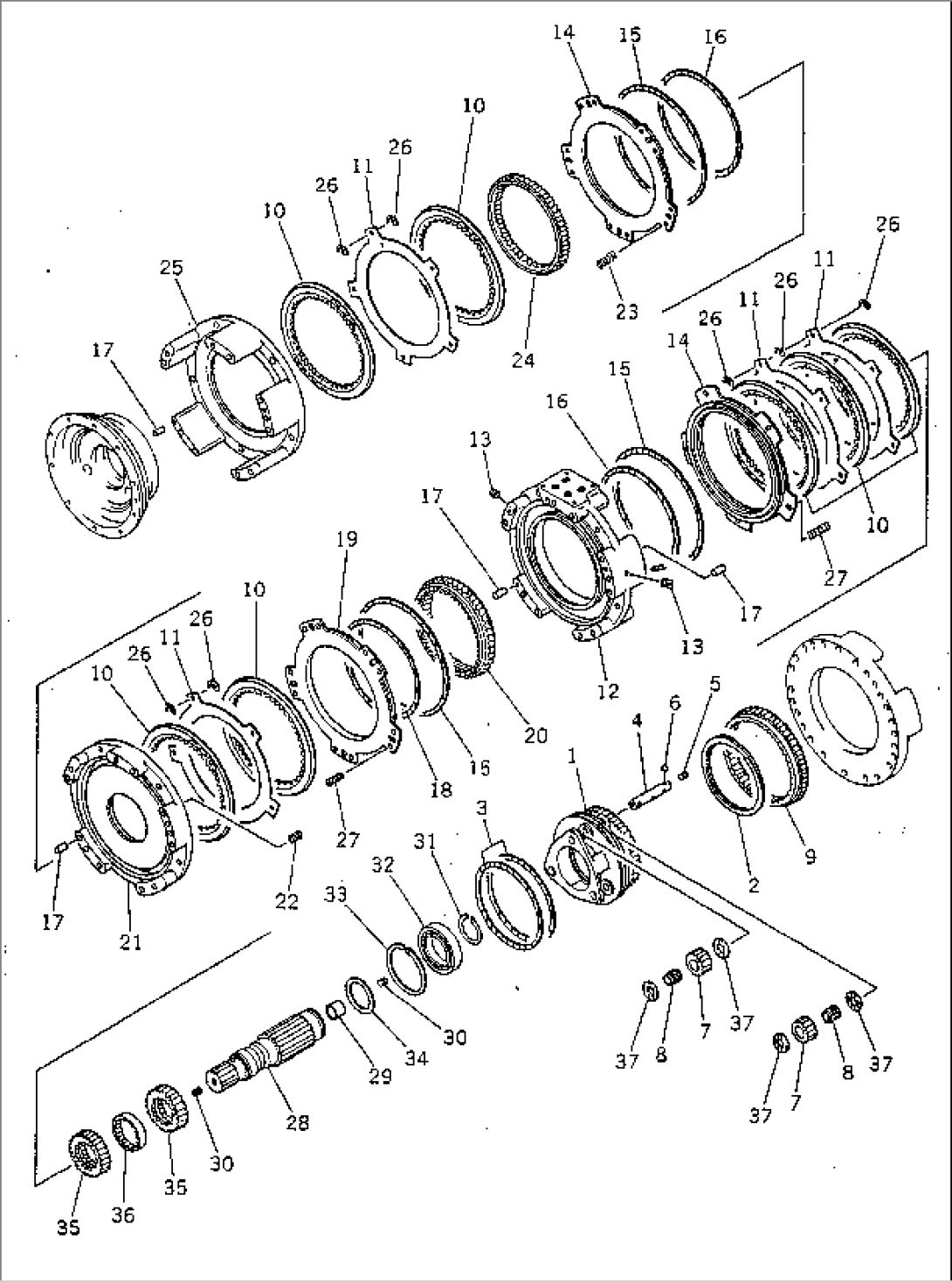

| \1\232-15-00012 | TRANSMISSION ASS'Y | 57001- | ||
| 232-15-00301 | TRANSMISSION ASS'Y (OP) | 57001- | ||
| 1 | 232-15-12320 | CARRIER | 57001- | |
| 2 | 232-15-19530 | RING | 57001- | |
| 3 | 07018-02455 | RING | 57001- | |
| 3 | 232-15-00060 | SHAFT ASS'Y | 57001- | |
| 4 | \6\ | SHAFT | 57001- | |
| 5 | 234-15-12780 | SCREW | 57001- | |
| 6 | 04260-00635 | BALL | 57001- | |
| 7 | 232-15-12420 | GEAR | 57001- | |
| 8 | 09232-02932 | BEARING | 57001- | |
| 9 | 232-15-12630 | GEAR | 57001- | |
| 10 | 135-15-22712 | DISC | 57001- | |
| 11 | 134-15-12720 | PLATE | 57001- | |
| 11 | 232-15-00050 | HOUSING ASS'Y | 57001- | |
| 12 | \6\ | HOUSING | 57001- | |
| 13 | 234-15-12780 | SCREW | 57001- | |
| 14 | 232-15-12730 | PISTON | 57001- | |
| 15 | 134-15-12840 | RING (KIT) | 57001- | |
| 16 | 232-15-19220 | RING (KIT) | 57001- | |
| 17 | 04020-01228 | PIN | 57001- | |
| 18 | 232-15-19210 | RING (KIT) | 57001- | |
| 19 | 232-15-12740 | PISTON | 57001- | |
| 20 | 232-15-12620 | GEAR | 57001- | |
| 21 | 232-15-11150 | HOUSING | 57001- | |
| 22 | \1\09231-01430 | SLEEVE | 57001- | |
| 23 | 125-15-12860 | SPRING | 57001- | |
| 24 | 232-15-12610 | GEAR | 57001- | |
| 25 | 232-15-11140 | HOUSING | 57001- | |
| 26 | 175-15-42880 | SPRING | 57001- | |
| 27 | 125-15-12860 | SPRING | 57001- | |
| 27 | 232-15-00030 | SHAFT ASS'Y | 57001- | |
| 28 | \6\ | SHAFT | 57001- | |
| 29 | 07177-03525 | BUSHING | 57001- | |
| 30 | 125-15-22780 | PLUG,(D=2.0MM) | 57001- | |
| 31 | 04064-08025 | RING | 57001- | |
| 32 | 06000-06016 | BEARING | 57001- | |
| 33 | 04077-00125 | RING | 57001- | |
| 34 | 232-15-12170 | SPACER | 57001- | |
| 35 | 232-15-12210 | GEAR | 57001- | |
| 36 | 232-15-12160 | SPACER | 57001- | |
| 37 | \0\287-15-12550 | WASHER | 57001- |
