| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (428-15-21001) | TRANSMISSION ASS'Y | 51001- | ||
| (428-15-21000) | TRANSMISSION ASS'Y | 50001-51000 | ||

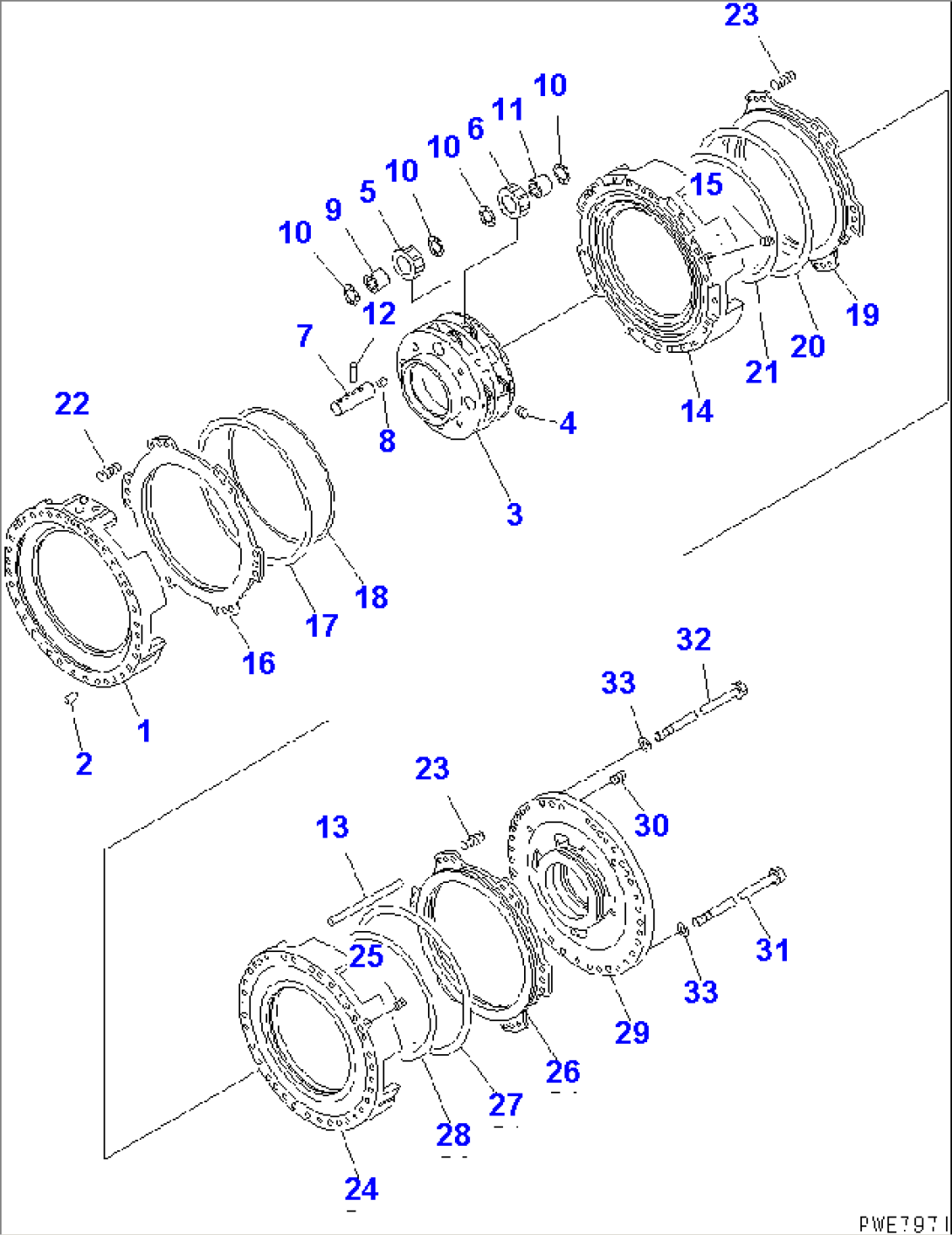

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-68A0. | ||||
| 1 | 428-15-11160 | HOUSING | 50001- | |
| 2 | 569-15-41310 | SLEEVE | 50001- | |
| 428-15-00160 | CARRIER ASS'Y | 50001- | ||
| 3 | \6\ | CARRIER ASS'Y | 50001- | |
| 4 | 145-14-11320 | PLUG | 50001- | |
| 5 | 426-15-12420 | GEAR | 50001- | |
| 6 | 41E-15-12420 | GEAR | 50001- | |
| 41E-15-00140 | SHAFT ASS'Y | 50001- | ||
| 7 | \6\ | SHAFT | 50001- | |
| 8 | 07043-70108 | PLUG | 50001- | |
| 9 | 426-15-19410 | BEARING | 50001- | |
| 10 | 561-15-32570 | WASHER | 50001- | |
| 11 | 41E-15-19410 | BEARING | 50001- | |
| 12 | 04025-00624 | PIN | 50001- | |
| 13 | 428-15-11270 | PIN | 50001- | |
| 428-15-00170 | HOUSING ASS'Y | 50001- | ||
| 14 | \6\ | HOUSING | 50001- | |
| 15 | 145-14-11320 | PLUG | 50001- | |
| 16 | 428-15-12750 | PISTON | 50001- | |
| 17 | 155-15-12811 | RING,SEAL (K3) | 50001- | |
| 18 | 287-15-19220 | RING,SEAL (K3) | 50001- | |
| 19 | 428-15-12741 | PISTON | 50001- | |
| 20 | 195-15-39220 | RING,SEAL (K3) | 50001- | |
| 21 | 198-15-29230 | RING,SEAL (K3) | 50001- | |
| 22 | 234-15-15230 | SPRING, (L= 52.0) | 50001- | |
| 23 | 195-15-12850 | SPRING | 50001- | |
| 428-15-00150 | HOUSING ASS'Y | 50001- | ||
| 24 | \6\ | HOUSING | 50001- | |
| 25 | 145-14-11320 | PLUG | 50001- | |
| 26 | 428-15-12730 | PISTON | 50001- | |
| 27 | 155-15-12811 | RING,SEAL (K3) | 50001- | |
| 28 | 287-15-19220 | RING,SEAL (K3) | 50001- | |
| 428-15-00220 | HOUSING ASS'Y | 50001- | ||
| 29 | \6\ | HOUSING | 50001- | |
| 30 | 562-15-11450 | PLUG | 50001- | |
| 31 | 428-15-11250 | BOLT | 50001- | |
| 32 | 428-15-11260 | BOLT | 50001- | |
| 33 | 145-14-11571 | WASHER | (10013)- | |
| 33 | 145-14-11570 | WASHER | 50001-(10012) |
