| Item | Part No. | Part Name | Qty | Serial No. |
| | SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | | |
| (714-11-10003) | TRANSMISSION ASS'Y | | (68569)- |
| (714-11-10002) | TRANSMISSION ASS'Y | | 50001-(68568) |
| (714-11-10043) | TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING) | | (68573)- |
| (714-11-10042) | TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING) | | 50001-(68572) |

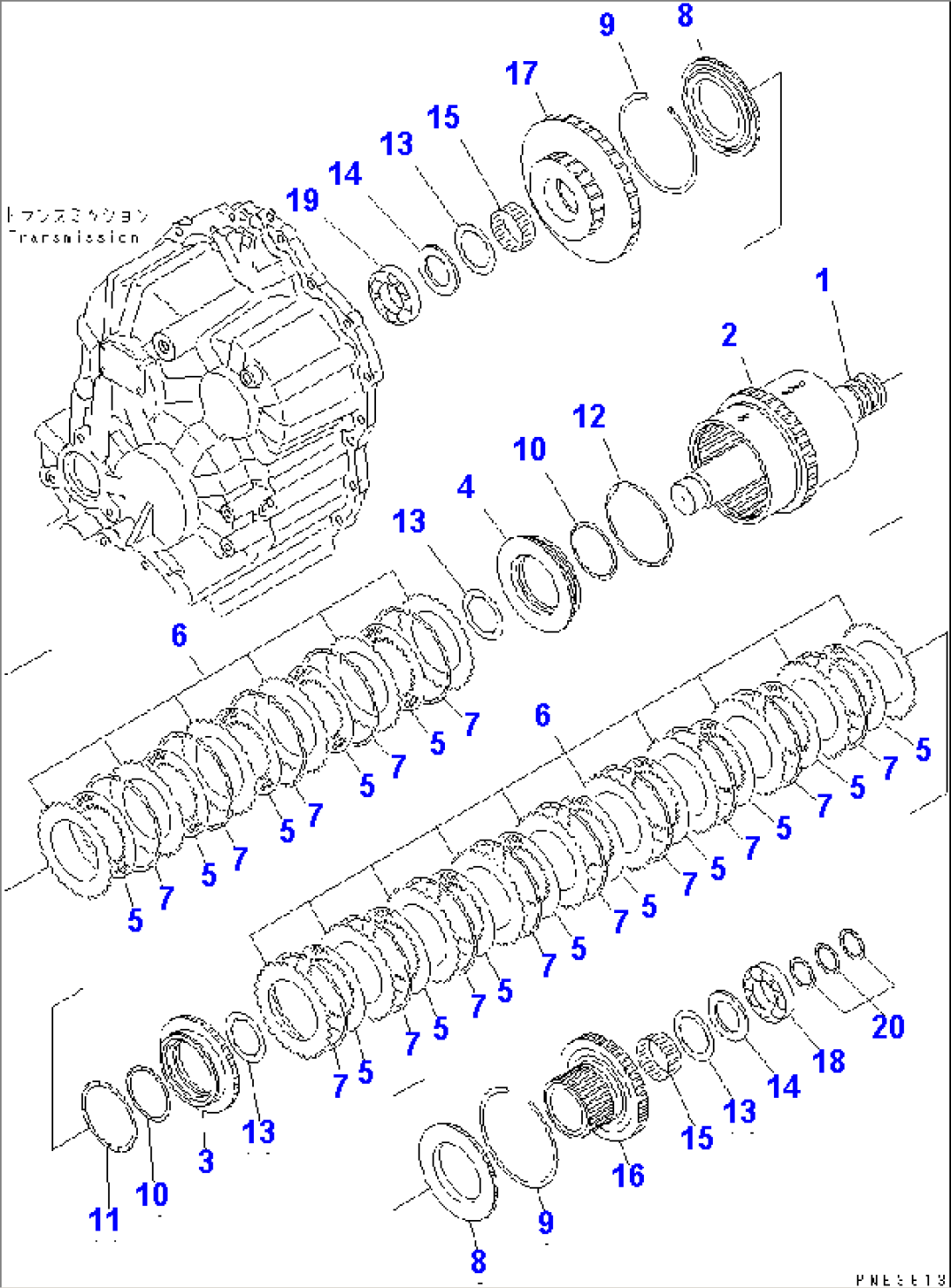

| | THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-68A0. | | |
| 714-11-12020 | CLUTCH ASS'Y,FORWARD AND 2ND | | 50001- |
| 714-11-12141 | SHAFT ASS'Y | | 50001- |
| 1 | \6\ | SHAFT | | 50001- |
| 2 | \6\ | HOUSING ASS'Y | | 50001- |
| 3 | 714-11-12650 | PISTON,FORWARD | | 50001- |
| 4 | 714-11-12660 | PISTON,2ND | | 50001- |
| 5 | 714-08-19710 | DISC | | 50001- |
| 6 | 714-08-19730 | PLATE,SEPARATE | | 50001- |
| 7 | 714-08-12911 | SPRING,WAVE | | 50001- |
| 7 | (\2\714-08-12910) | SPRING,WAVE | | (50001-(170423)) |
| 8 | 714-08-12610 | PLATE,END | | 50001- |
| 9 | 714-08-19510 | RING,SNAP | | 50001- |
| 10 | 714-08-19210 | RING,SEAL | | 50001- |
| 11 | 714-11-19240 | RING,SEAL | | 50001- |
| 12 | 714-11-19230 | RING,SEAL | | 50001- |
| 13 | 714-11-19510 | WASHER,THRUST | | 50001- |
| 14 | 714-11-12710 | SPACER | | 50001- |
| 15 | 419-15-12271 | BEARING | | (68893)- |
| 15 | \0\419-15-12270 | BEARING,NEEDLE | | 50001-(68892) |
| 16 | 714-11-12430 | GEAR, 47 TEETH,FORWARD | | 50001- |
| 17 | 714-11-12440 | GEAR, 27-49 TEETH,2ND | | 50001- |
| 18 | 06040-06210 | BEARING | | 50001- |
| 19 | 06040-06310 | BEARING | | 50001- |
| 20 | 419-15-12122 | RING,SEAL | | 50001- |
