| Item | Part No. | Part Name | Qty | Serial No. |
| | SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | | |
| (714-12-20004) | TRANSMISSION ASS'Y | | 62274- |
| (714-12-20003) | TRANSMISSION ASS'Y | | (10320)-00062273 |
| (\2\714-12-20002) | TRANSMISSION ASS'Y | | ((10320)-(111306)) |
| (\2\714-12-20001) | TRANSMISSION ASS'Y | | ((10320)-(111258)) |
| (714-12-20000) | TRANSMISSION ASS'Y | | 60001-(10319) |
| (714-12-20303) | TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.) | | 62274- |
| | TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.) | | 60001-62273 |
| (\2\714-12-20301) | TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.) | | (60001-(111306)) |
| (\2\714-12-20300) | TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.) | | (60001-(111258)) |
| | THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-63A0. | | |

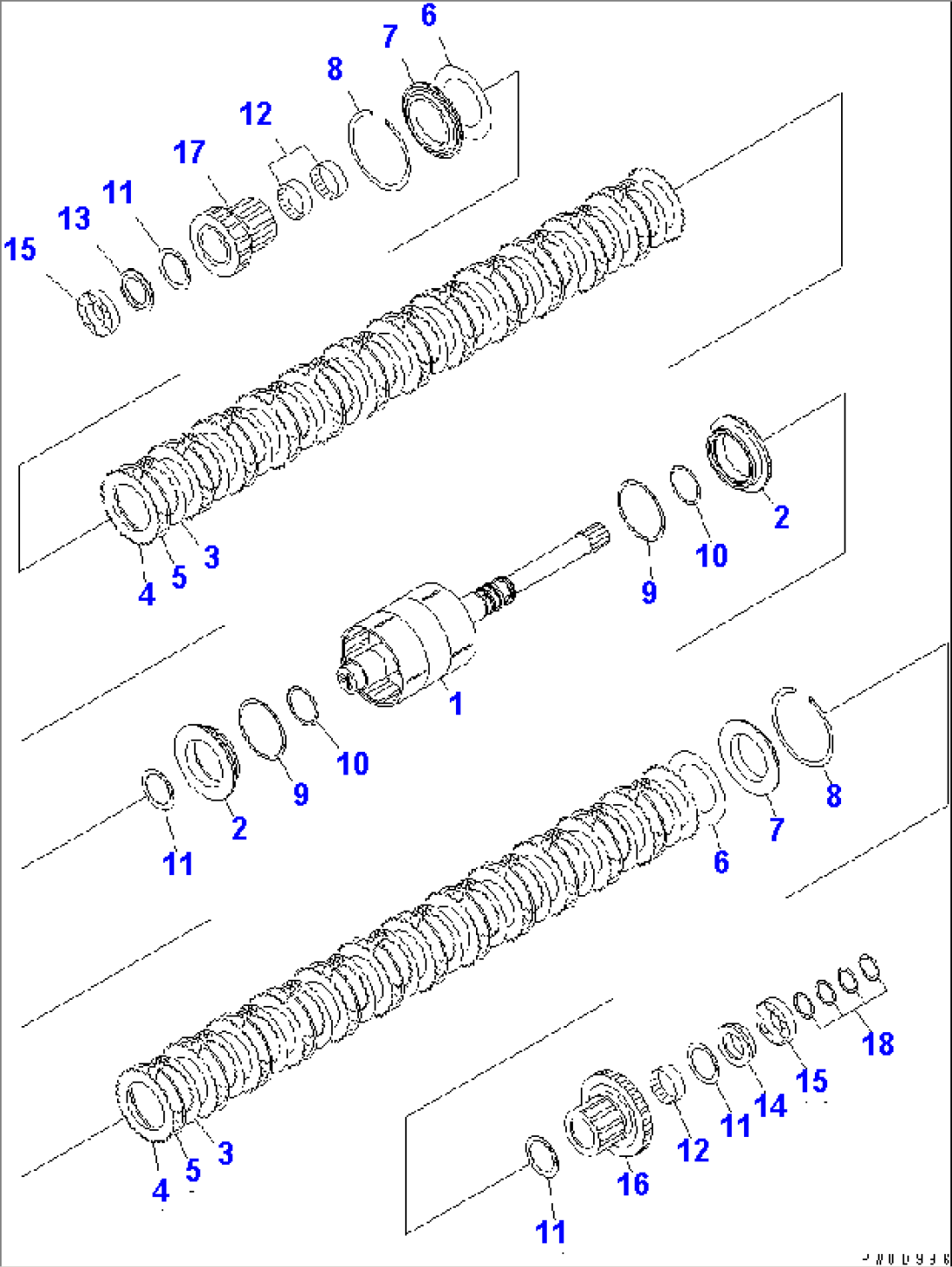

| 714-12-22010 | CLUTCH ASS'Y,FORWARD AND REVERSE | | 60001- |
| 1 | 714-12-22111 | SHAFT AND CYLINDER A | | 60001- |
| 1 | \6\ | SHAFT,INPUT | | 60001- |
| 1 | \6\ | SCREW | | 60001- |
| 1 | \6\ | ORIFICE | | 60001- |
| 1 | \6\ | HOUSING | | (110377)- |
| 1 | \6\ | HOUSING | | 60001-(110376) |
| 2 | 714-07-22652 | PISTON,FOWARD AND REVERSE | | 60001- |
| 3 | 714-07-29720 | DISC | | 60001- |
| 4 | 714-16-19730 | PLATE,SEPARATE | | 60001- |
| 5 | 56D-15-12710 | SPRING,WAVE | | (110524)- |
| 5 | \0\419-15-12133 | SPRING,WAVE | | 60001-(110523) |
| 6 | 714-07-22720 | PLATE | | 60001- |
| 7 | 714-07-22610 | PLATE,END | | 60001- |
| 8 | 419-15-12140 | RING,SNAP | | 60001- |
| 9 | 714-11-19230 | RING,SEAL (K1) | | 60001- |
| 10 | 714-16-19210 | RING,SEAL (K1) | | 60001- |
| 11 | 714-08-19570 | WASHER,THRUST | | 60001- |
| 12 | 714-23-19430 | BEARING,NEEDLE | | 60001- |
| 13 | 714-11-12720 | SPACER | | 60001- |
| 14 | 714-07-22711 | SPACER | | 60001- |
| 15 | 714-12-19380 | BEARING | | 60001- |
| 16 | 714-12-22421 | GEAR, 40 TEETH,FORWARD | | 60001- |
| 17 | 714-12-22411 | GEAR, 31 TEETH,REVERSE | | 60001- |
| 18 | 714-19-19210 | RING,SEAL (K1) | | 60001- |
