| Item | Part No. | Part Name | Qty | Serial No. |
| 714-07-30004 | TRANSMISSION ASS'Y | 85366-90000 | ||
| 714-07-30001 | TRANSMISSION ASS'Y | 85165-85365 | ||
| 714-07-30000 | TRANSMISSION ASS'Y | 85001-85164 | ||

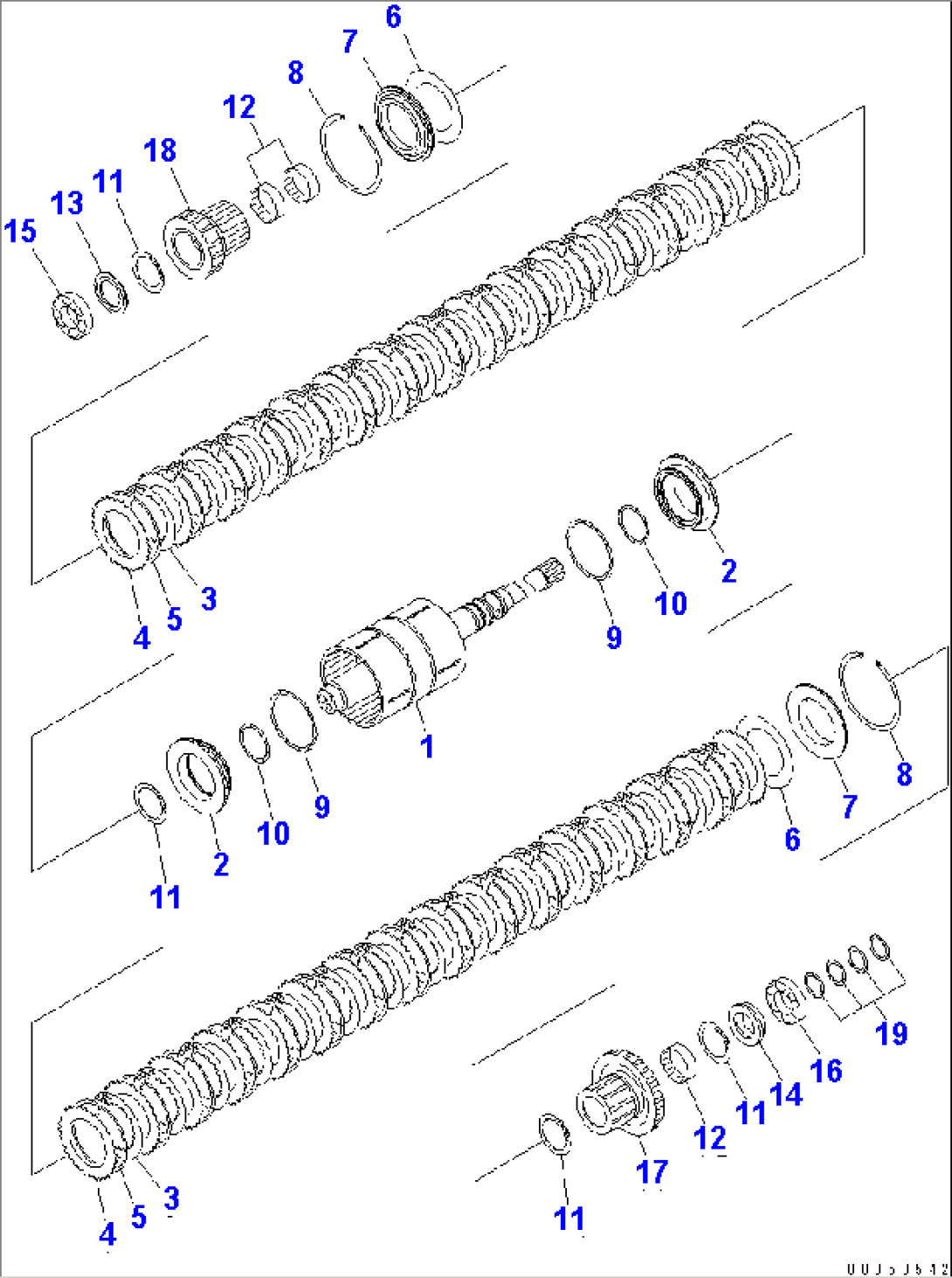

| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-64A0. | ||||
| 714-07-30024 | TRANSMISSION ASS'Y | 85366-90000 | ||
| 714-07-30021 | TRANSMISSION ASS'Y | 85165-85365 | ||
| 714-07-30020 | TRANSMISSION ASS'Y | 85001-85164 | ||
| THESE ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 AND 52A1, 53A0 TO 61A0, 62A1 TO 64A1, 65A0. | ||||
| 714-07-32013 | CLUTCH,FRONT | 85366-90000 | ||
| 714-07-32012 | CLUTCH,FRONT | 85001-85365 | ||
| 1 | 714-07-32111 | SHAFT AND CYLINDER A,FRONT | 85366-90000 | |
| 1 | 714-07-32110 | SHAFT AND CYLINDER A,FRONT | 85001-85365 | |
| 1 | \6\ | SHAFT,INPUT | 85366-90000 | |
| 1 | \6\ | SHAFT,INPUT | 85001-85365 | |
| 1 | \6\ | SCREW | 85001-90000 | |
| 1 | \6\ | ORIFICE | 85001-90000 | |
| 1 | \6\ | HOUSING | 85001-90000 | |
| 2 | 714-07-22652 | PISTON,FORWARD AND REVERSE | 85001-90000 | |
| 3 | 714-07-29720 | DISC | 85001-90000 | |
| 4 | 714-16-19730 | PLATE,SEPARATE | 85001-90000 | |
| 5 | 56D-15-12710 | SPRING,WAVE | 85001-90000 | |
| 6 | 714-07-22720 | PLATE | 85001-90000 | |
| 7 | 714-07-22610 | PLATE,END | 85001-90000 | |
| 8 | 419-15-12140 | RING,SNAP | 85001-90000 | |
| 9 | 714-11-19230 | RING,SEAL (K1) | 85001-90000 | |
| 10 | 714-16-19210 | RING,SEAL (K1) | 85001-90000 | |
| 11 | 714-08-19570 | WASHER,THRUST | 85001-90000 | |
| 12 | 714-23-19430 | BEARING | 85001-90000 | |
| 13 | 714-11-12720 | SPACER | 85001-90000 | |
| 14 | 714-07-22711 | SPACER | 85001-90000 | |
| 15 | 419-15-12591 | BEARING | 85001-90000 | |
| 16 | 714-12-19340 | BEARING | 85001-90000 | |
| 17 | 714-07-22422 | GEAR,FORWARD | 85001-90000 | |
| 18 | 714-07-22412 | GEAR,REVERSE | 85001-90000 | |
| 19 | 714-12-39210 | RING,SEAL (K1) | 85001-90000 |
