| Item | Part No. | Part Name | Qty | Serial No. |
| (427-15-00013) | TRANSMISSION ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2534. | ||||

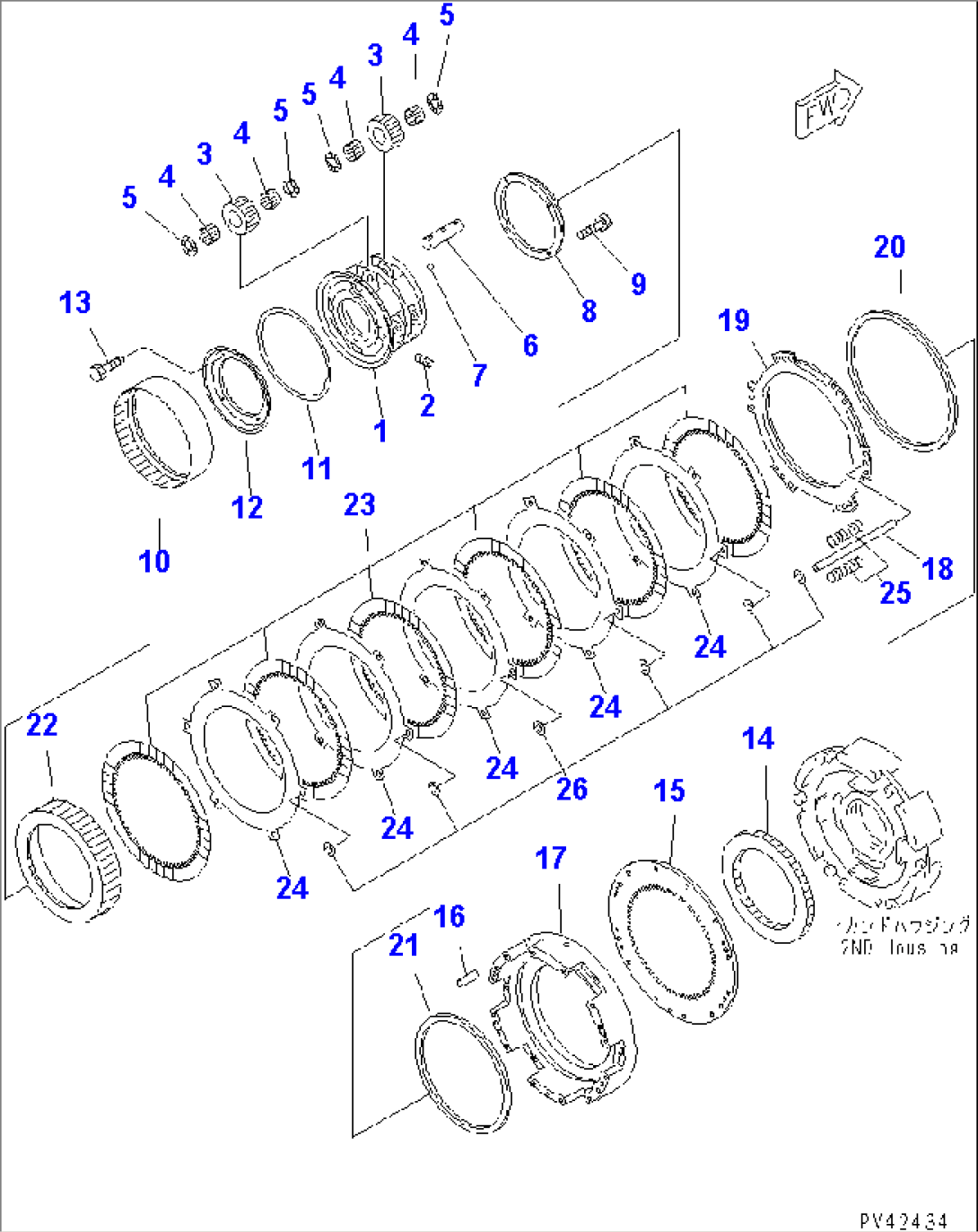

| 427-15-00130 | CARRIER ASS'Y | 10001- | ||
| 1 | \6\ | CARRIER | 10001- | |
| 2 | 568-15-11380 | PLUG | 10001- | |
| 3 | 427-15-12420 | GEAR | 10001- | |
| 4 | 582-15-19720 | BEARING | 10001- | |
| 5 | 427-15-12560 | WASHER,THRUST | 10001- | |
| 6 | 427-15-12520 | SHAFT | 10001- | |
| 7 | 04260-00635 | BALL | 10001- | |
| 8 | 427-15-12370 | COVER | 10001- | |
| 9 | 01252-31035 | BOLT | 10001- | |
| 10 | 427-15-12651 | GEAR,RING | 10001- | |
| 11 | 198-15-29520 | RING | 10001- | |
| 12 | 427-15-12360 | COVER | 10001- | |
| 13 | 01252-31035 | BOLT | 10001- | |
| 14 | 427-15-12630 | GEAR,RING | 10001- | |
| 15 | 427-15-11161 | HOUSING | 10001- | |
| 16 | 04020-01842 | PIN,DOWEL | 10001- | |
| 17 | 427-15-11170 | HOUSING,FORWARD | 10001- | |
| 18 | 568-15-11370 | PIN,(D=20, L=237.5) | 10001- | |
| 19 | 427-15-12760 | PISTON,FORWARD | 10001- | |
| 20 | 427-15-19210 | RING,SEAL (K3) | 10001- | |
| 21 | 195-15-29210 | RING,SEAL (K3) | 10001- | |
| 22 | 427-15-12640 | GEAR,RING | 10001- | |
| 23 | 198-15-22710 | DISC | 10001- | |
| 24 | 198-15-22720 | PLATE | 10001- | |
| 25 | 568-15-12960 | SPRING,(L=108.5) | 10001- | |
| 26 | 195-15-12880 | SPRING | 10001- |
