| Item | Part No. | Part Name | Qty | Serial No. |
| (14X-15-00011) | TRANSMISSION ASS'Y | 3023- | ||
| (14X-15-00010) | TRANSMISSION ASS'Y | 3001-3022 | ||

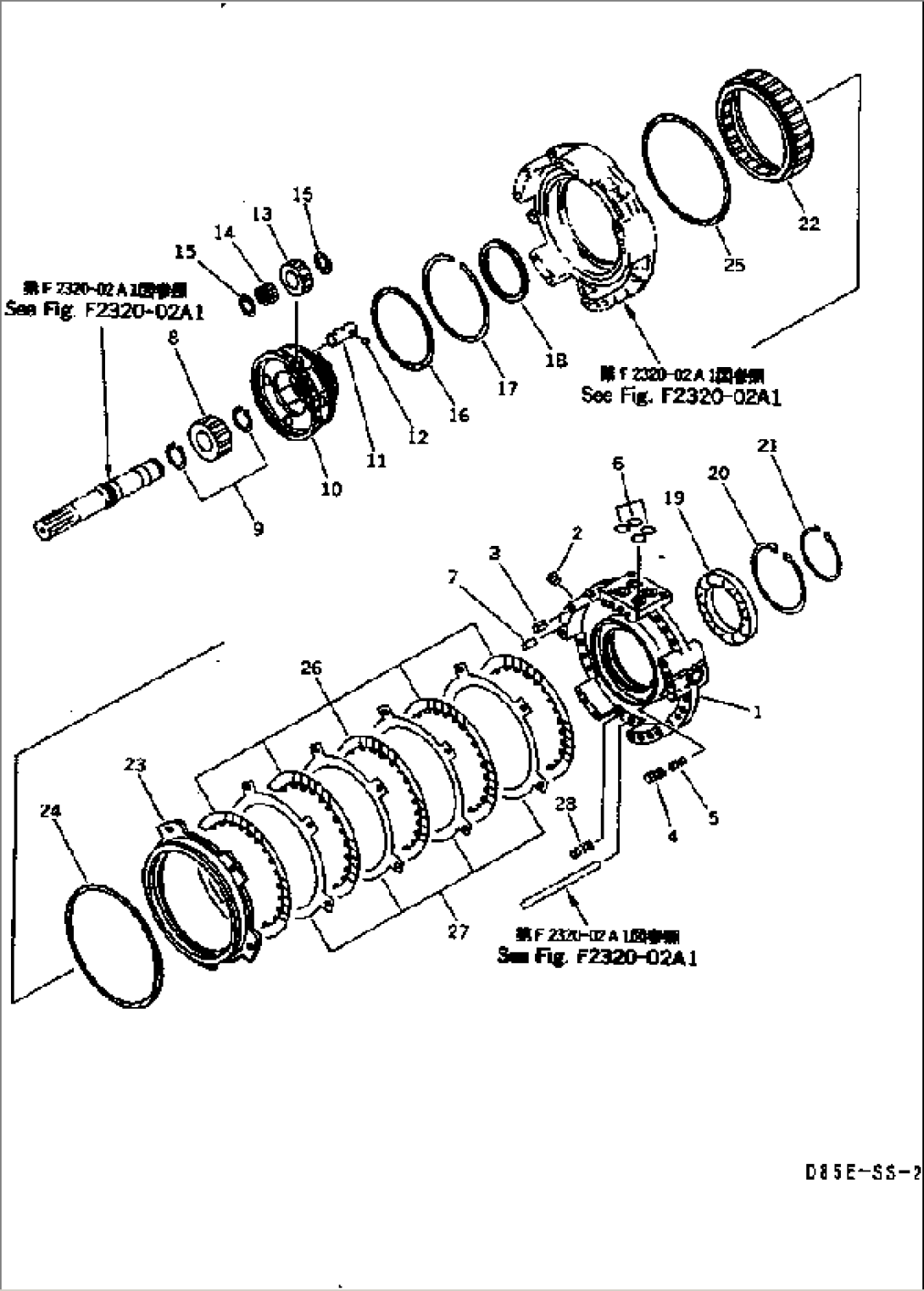

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-01A1 TO F2320-10A1. | ||||
| 14X-15-00260 | HOUSING ASS'Y | 3001- | ||
| 1 | \6\ | HOUSING | 3001- | |
| 2 | 568-15-11380 | PLUG | 3001- | |
| 3 | 569-15-41310 | SLEEVE | 3001- | |
| 4 | 287-15-15360 | PISTON | 3001- | |
| 5 | 700-80-51390 | SPRING | 3001- | |
| 6 | 07000-73030 | O-RING (K3) | 3001- | |
| 7 | 04020-01228 | PIN | 3001- | |
| 8 | 14X-15-12220 | GEAR | 3001- | |
| 9 | 04064-05020 | RING,SNAP | 3001- | |
| 10 | 14X-15-12340 | CARRIER | 3001- | |
| 11 | 14X-15-12540 | SHAFT | 3001- | |
| 12 | 04260-00635 | BALL | 3001- | |
| 13 | 421-15-12420 | GEAR | 3001- | |
| 14 | 14X-15-19440 | BEARING | 3001- | |
| 15 | 09233-12920 | WASHER,THRUST | 3001- | |
| 16 | 07018-12105 | RING,SEAL | 3001- | |
| 17 | 14X-15-19530 | RING,SNAP | 3001- | |
| 18 | 421-15-12150 | SPACER | 3001- | |
| 19 | 06000-06926 | BEARING | 3001- | |
| 20 | 04071-00180 | RING,SNAP | 3001- | |
| 21 | 04070-00130 | RING,SNAP | 3001- | |
| 22 | 14X-15-12661 | GEAR,RING | 3001- | |
| 23 | 14X-15-12740 | PISTON | 3001- | |
| 24 | 562-15-19220 | RING,SEAL (K3) | 3001- | |
| 25 | 125-15-22870 | RING,SEAL (K3) | 3001- | |
| 26 | 424-15-12711 | DISC | 3001- | |
| 27 | 424-15-12720 | PLATE | 3001- | |
| 28 | 14X-15-12910 | SPRING | 3001- |
