| Item | Part No. | Part Name | Qty | Serial No. |
| (23C-13-50000) | TRANSMISSION ASS'Y | 30001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-69A0. | ||||

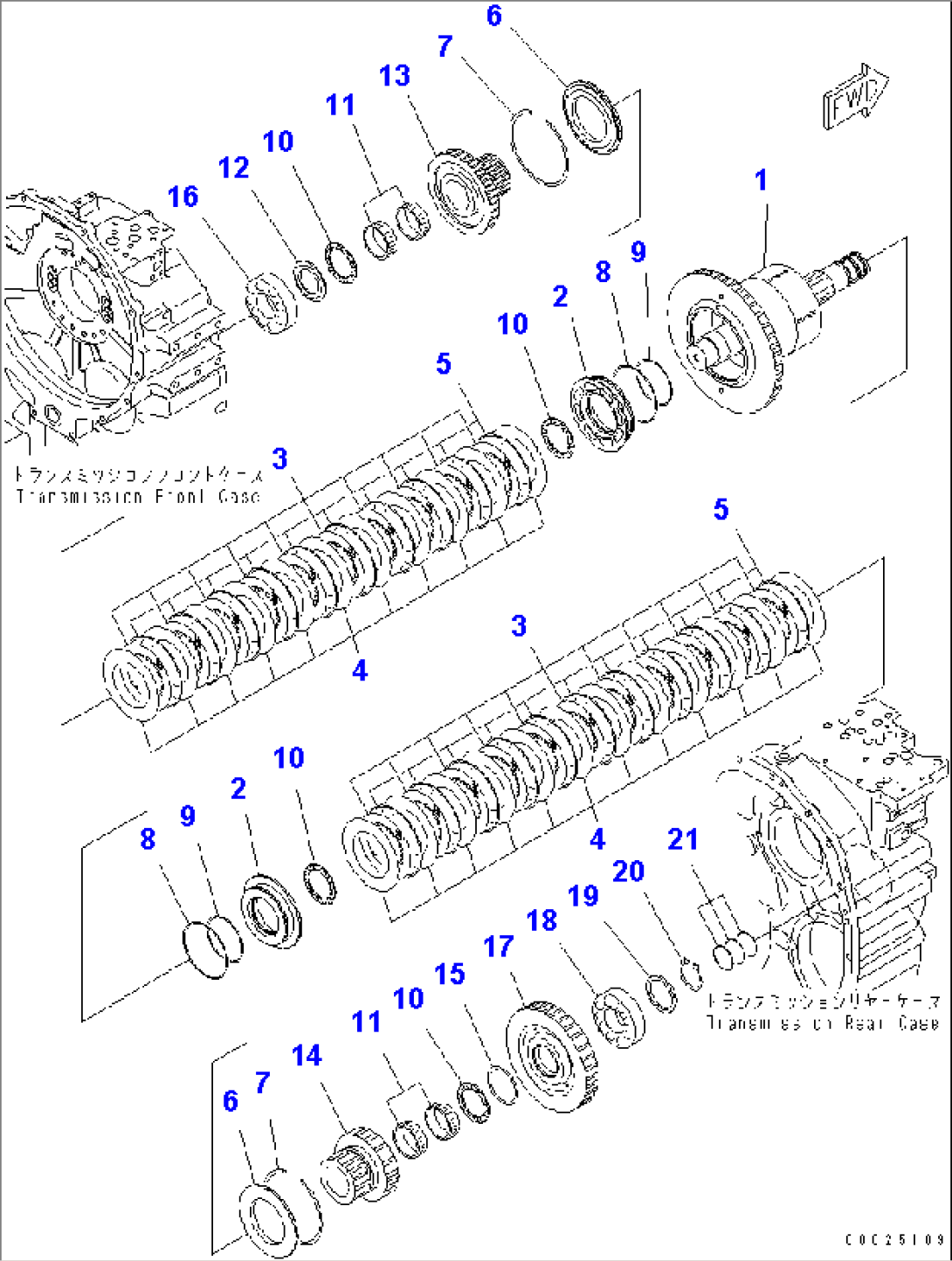

| 23C-15-52020 | CLUTCH ASS'Y | 30001- | ||
| 1 | 23C-15-52121 | SHAFT AND CYLINDER A | 30001- | |
| \6\ | SHAFT | 30001- | ||
| \6\ | SCREW | 30001- | ||
| \6\ | HOUSING | 30001- | ||
| 2 | 23C-15-52630 | PISTON | 30001- | |
| 3 | 714-12-19711 | DISC | 30001- | |
| 4 | 714-16-19730 | PLATE | 30001- | |
| 5 | 56D-15-12710 | SPRING | 30001- | |
| 6 | 714-12-12610 | PLATE | 30001- | |
| 7 | 419-15-12140 | RING | 30001- | |
| 8 | 714-16-19230 | RING (K1) | 30001- | |
| 9 | 714-07-19320 | RING (K1) | 30001- | |
| 10 | 714-08-19570 | WASHER | 30001- | |
| 11 | 714-23-19431 | BEARING | 30001- | |
| 12 | 714-11-12720 | SPACER | 30001- | |
| 13 | 23C-15-52440 | GEAR | 30001- | |
| 14 | 23C-15-52430 | GEAR | 30001- | |
| 15 | 569-15-49530 | RING | 30001- | |
| 16 | 06040-06312 | BEARING | 30001- | |
| 17 | 23C-15-52531 | GEAR | 30001- | |
| 18 | 714-12-19340 | BEARING | 30001- | |
| 19 | 714-12-12910 | SPACER | 30001- | |
| 20 | 04064-06020 | RING | 30001- | |
| 21 | 56D-15-19240 | RING (K1) | 30001- |
