| Item | Part No. | Part Name | Qty | Serial No. |
| | SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | | |
| (56D-13-10006) | TRANSMISSION | | 1492- |
| (\0\56D-13-10002) | TORQFLOW ASS'Y | | 1001-1491 |
| (\2\56D-13-10000) | TORQFLOW ASS'Y | | (1001-1129) |
| | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F3300-51A0 TO F3300-64A0. | | |

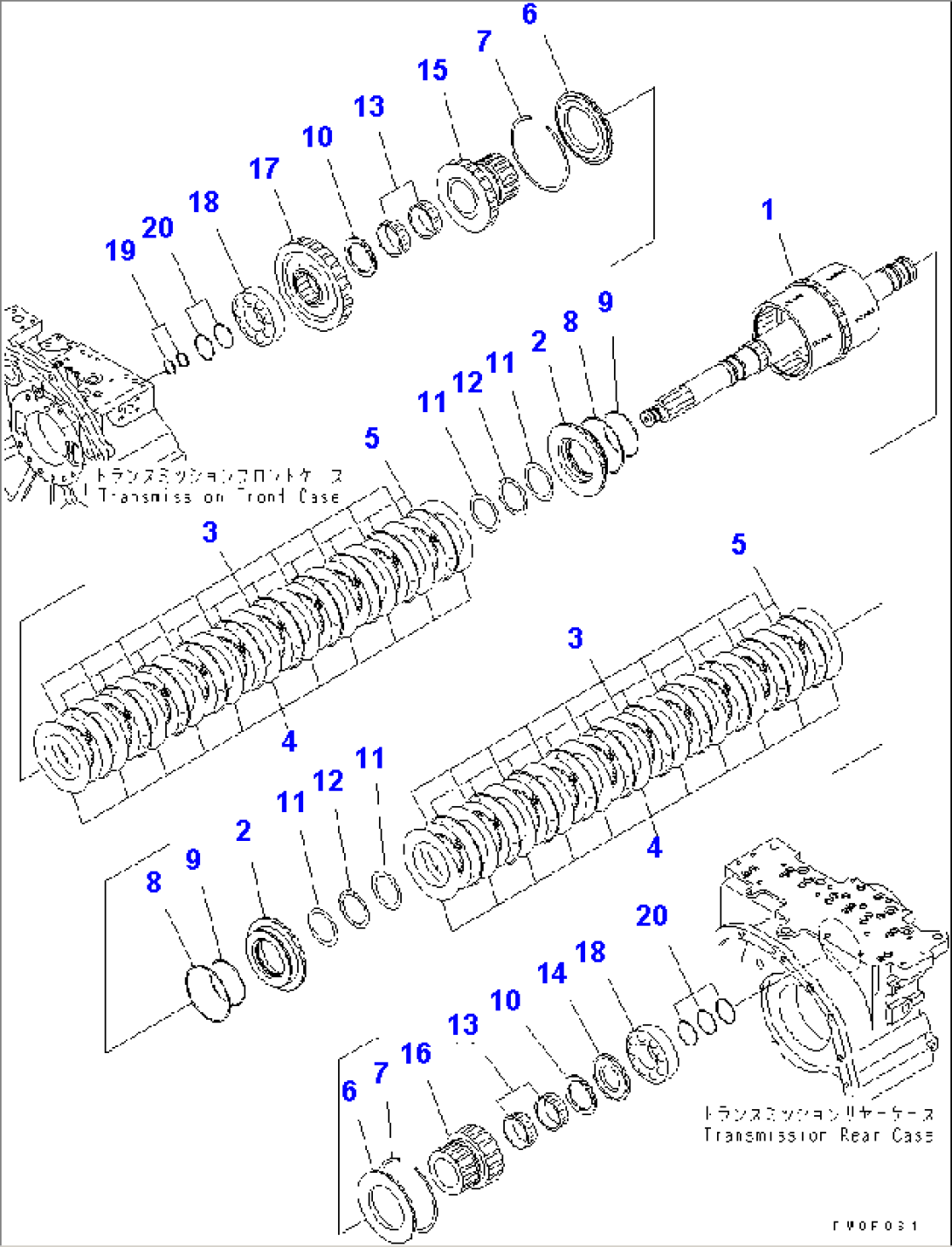

| 56D-15-12012 | CLUTCH ASS'Y,INPUT | | 1130- |
| 56D-15-12011 | CLUTCH ASS'Y,INPUT | | (100024)-00001129 |
| 56D-15-12010 | CLUTCH ASS'Y,INPUT | | 1001-(100023) |
| 1 | 56D-15-12110 | SHAFT AND CYLINDER A,INPUT | | 1001- |
| 1 | \6\ | SHAFT,INPUT | | 1001- |
| 1 | \6\ | BALL | | 1001- |
| 1 | \6\ | HOUSING,INPUT | | (100017)- |
| 1 | \6\ | HOUSING,INPUT | | 1001-(100016) |
| 2 | 56D-15-12650 | PISTON | | 1001- |
| 3 | 714-12-19711 | DISC | | 1001- |
| 4 | 714-16-19730 | PLATE,SEPARATE | | 1001- |
| 5 | 56D-15-12710 | SPRING,WAVE | | (100029)- |
| 5 | \0\419-15-12133 | SPRING,WAVE | | 1001-(100028) |
| 6 | 714-12-12610 | PLATE,END | | 1001- |
| 7 | 419-15-12140 | RING,SNAP | | 1001- |
| 8 | 714-13-19210 | RING,SEAL (K1) | | 1001- |
| 9 | 714-08-19210 | RING,SEAL (K1) | | 1001- |
| 10 | 714-08-19570 | WASHER,THRUST | | 1001- |
| 11 | 419-15-12680 | WASHER | | 1001- |
| 12 | 419-15-12670 | BEARING | | 1001- |
| 13 | 714-23-19431 | BEARING,NEEDLE | | (100029)- |
| 13 | 714-23-19430 | BEARING,NEEDLE | | 1001-(100028) |
| 14 | 714-19-12720 | SPACER | | 1001- |
| 15 | 56D-15-12411 | GEAR,FOWARD LOW | | (100029)- |
| 15 | 56D-15-12410 | GEAR,FOWARD LOW | | 1001-(100028) |
| 16 | 56D-15-12421 | GEAR,REVERSE | | 1001- |
| 17 | 56D-15-12530 | GEAR,INPUT | | 1001- |
| 18 | 714-12-19340 | BEARING | | 1023- |
| 18 | 06043-00312 | BEARING | | 1001-1022 |
| 19 | 714-21-19810 | RING,SEAL | | 1001- |
| 20 | 56D-15-19240 | RING,SEAL (K1) | | 1001- |
