| Item | Part No. | Part Name | Qty | Serial No. |
| (154-15-01012) | TRANSMISSION ASS'Y | (1237)- | ||
| (154-15-01011) | TRANSMISSION ASS'Y | 35127-(1236) | ||
| (154-15-01010) | TRANSMISSION ASS'Y | 35001-35126 | ||

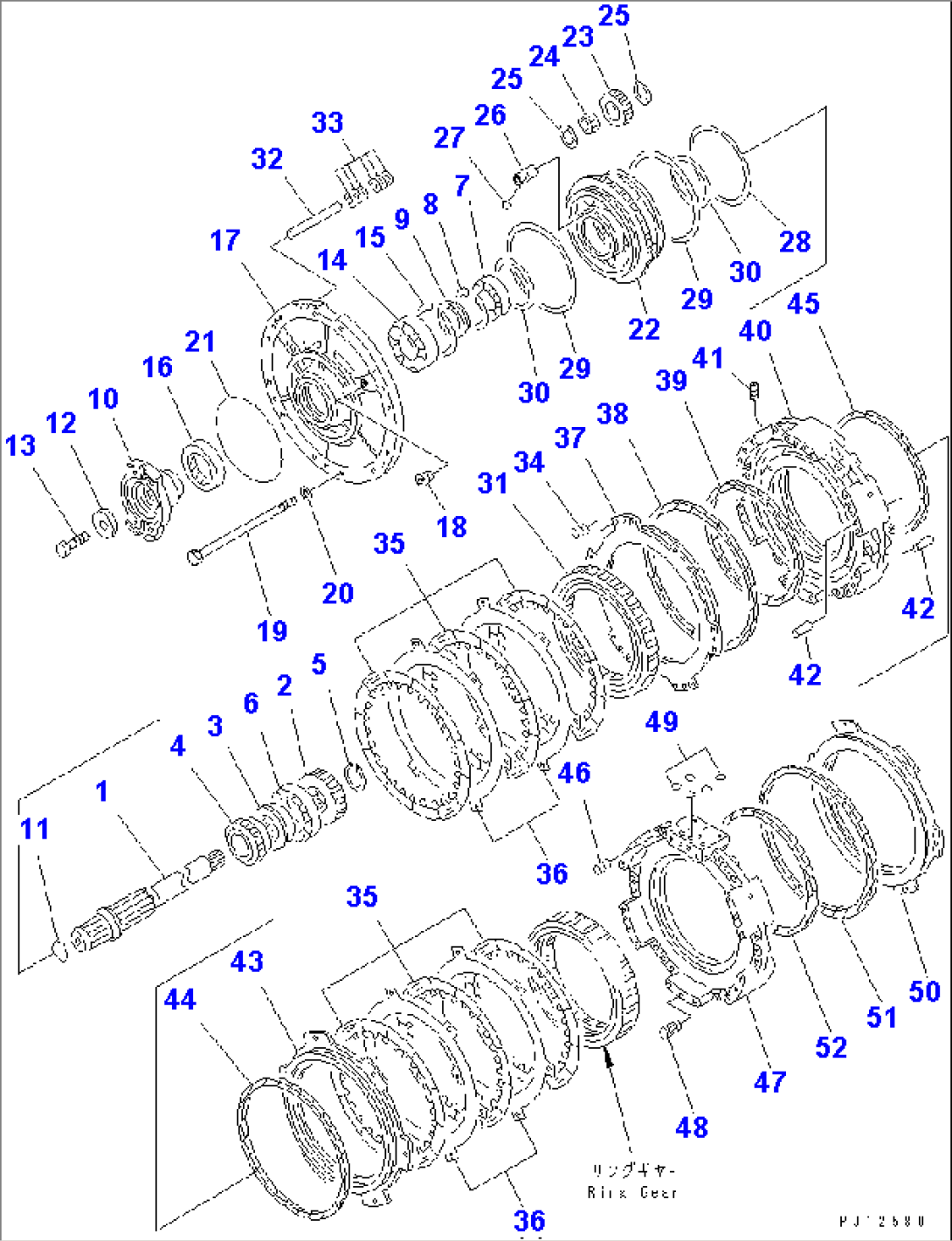

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2513. | ||||
| (154-15-01110) | TRANSMISSION ASS'Y | 35001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2505. | ||||
| 1 | 154-15-42111 | SHAFT | 35001- | |
| 2 | 154-15-42230 | GEAR | 35001- | |
| 3 | 154-15-42160 | COLLAR | 35001- | |
| 4 | 154-15-42241 | GEAR | 35001- | |
| 5 | 04064-07025 | RING | 35001- | |
| 6 | 06000-06922 | BEARING | 35001- | |
| 7 | 06000-06014 | BEARING | 35001- | |
| 8 | 04065-01104 | RING,SNAP | 35001- | |
| 9 | 154-15-42171 | COLLAR | 35001- | |
| 10 | 154-15-42190 | COUPLING | 35001- | |
| 11 | 07000-05055 | O-RING (KIT) | 35001- | |
| 12 | 154-15-42180 | HOLDER | 35001- | |
| 13 | 01051-51800 | BOLT | 35001- | |
| 14 | 06000-06216 | BEARING | 35001- | |
| 15 | 04071-00140 | RING,SNAP | 35001- | |
| 16 | 07012-10100 | SEAL (KIT) | 35001- | |
| 154-15-01170 | HOUSING ASS'Y | 35001- | ||
| 17 | 154-15-41171 | HOUSING | 35001- | |
| 18 | 07043-70312 | PLUG | 35001- | |
| 19 | 144-15-21191 | BOLT | 35001- | |
| 20 | 145-14-11570 | WASHER | 35001- | |
| 21 | 07000-05250 | O-RING (KIT) | 35001- | |
| 22 | 154-15-42331 | CARRIER | 35001- | |
| 23 | 154-15-42440 | GEAR | 35001- | |
| 24 | 561-15-49410 | BEARING | 35001- | |
| 25 | 561-15-32590 | WASHER | 35001- | |
| 26 | 154-15-42530 | SHAFT | 35001- | |
| 27 | 04260-00635 | BALL | 35001- | |
| 28 | 154-15-49510 | RING,SNAP | (4318)- | |
| 28 | \0\135-15-32670 | RING,SNAP | 35001-(4317) | |
| 29 | 154-15-49260 | RING,SEAL | 35001- | |
| 30 | 175-15-69230 | RING,SEAL | 35001- | |
| 31 | 154-15-42641 | GEAR,RING | 35001- | |
| 32 | 175-15-12780 | PIN | 35001- | |
| 33 | 175-15-42880 | SPRING | 35001- | |
| 34 | 234-15-15230 | SPRING, (L= 52.0) | 35001- | |
| 35 | 198-15-22810 | DISC | (1237)- | |
| 35 | 711-35-27230 | DISC | 35001-(1326) | |
| 36 | 426-15-12720 | PLATE | 35001- | |
| 37 | 426-15-12750 | PISTON | 35001- | |
| 38 | 426-15-19220 | RING,SEAL (KIT) | 35001- | |
| 39 | 426-15-19210 | RING,SEAL (KIT) | 35001- | |
| 154-15-01180 | HOUSING ASS'Y | 35001- | ||
| 40 | 154-15-41160 | HOUSING | 35001- | |
| 41 | 145-14-11320 | PLUG | 35001- | |
| 42 | 04020-01434 | PIN,DOWEL | 35001- | |
| 43 | 175-15-62750 | PISTON | 35001- | |
| 44 | 175-15-59250 | RING,SEAL (KIT) | 35001- | |
| 45 | 426-15-19210 | RING,SEAL (KIT) | 35001- | |
| 46 | 234-15-15230 | SPRING, (L= 52.0) | 35001- | |
| 47 | 154-15-41150 | HOUSING | 35001- | |
| 48 | 569-15-41310 | SLEEVE | (1067)- | |
| 48 | 09231-01430 | SLEEVE | 35001-(1066) | |
| 49 | 07000-73022 | O-RING (KIT) | 35001- | |
| 50 | 175-15-62760 | PISTON | 35001- | |
| 51 | 155-15-12811 | RING,SEAL (KIT) | 35001- | |
| 52 | 582-15-19240 | RING,SEAL (KIT) | 35001- |
