| Item | Part No. | Part Name | Qty | Serial No. |
| (154-15-01082) | TRANSMISSION ASS'Y | 3147- | ||
| (154-15-01081) | TRANSMISSION ASS'Y | 3075-3146 | ||
| (154-15-01080) | TRANSMISSION ASS'Y | 3001-3074 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2521 TO 2533. | ||||
| (154-15-01120) | TRANSMISSION ASS'Y | 3001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2521 TO 2525. | ||||

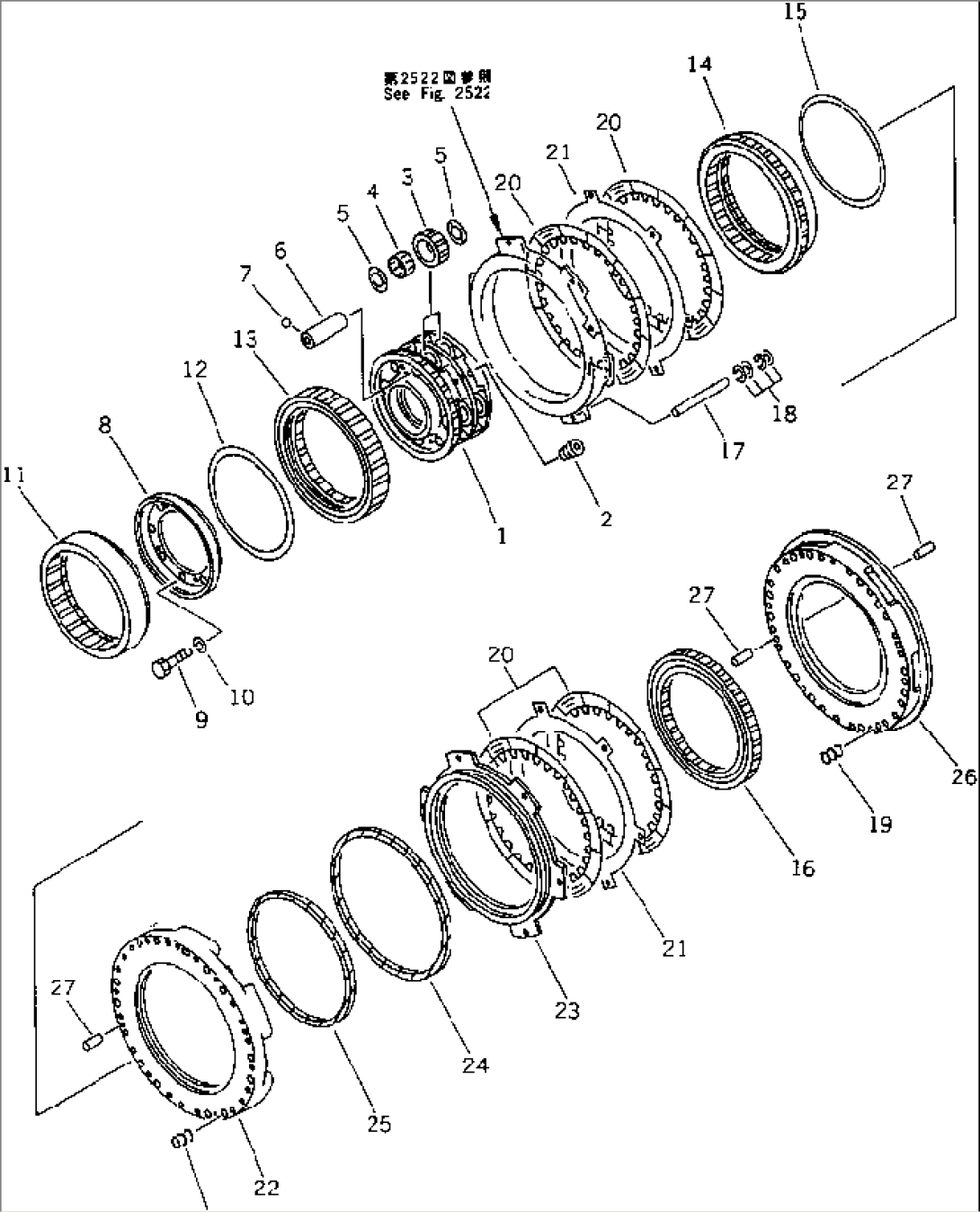

| 154-15-01190 | CARRIER ASS'Y | 3001- | ||
| 1 | \6\ | CARRIER | 3001- | |
| 2 | 07043-70108 | PLUG | 3001- | |
| 3 | 154-15-42420 | GEAR | 3001- | |
| 4 | 561-15-49410 | BEARING | 3001- | |
| 5 | 561-15-32590 | WASHER,THRUST | 3001- | |
| 6 | 154-15-42521 | SHAFT | 3001- | |
| 7 | 04260-00635 | BALL | 3001- | |
| 8 | 154-15-42940 | COVER | 3001- | |
| 9 | 01010-51030 | BOLT | 3001- | |
| 10 | 01643-31032 | WASHER | 3001- | |
| 11 | 154-15-42651 | GEAR,RING | 3001- | |
| 12 | 568-15-12950 | RING,SNAP | 3001- | |
| 13 | 154-15-42630 | GEAR,RING | 3001- | |
| 14 | 154-15-42620 | GEAR,RING | 3001- | |
| 15 | 175-15-69510 | RING,SNAP | 3001- | |
| 16 | 154-15-42610 | GEAR,RING | 3001- | |
| 17 | 175-15-12780 | PIN | 3001- | |
| 18 | 175-15-42880 | SPRING | 3001- | |
| 19 | 23A-15-12960 | SPRING | 3001- | |
| 20 | 198-15-22810 | DISC | 3147- | |
| 711-35-27230 | DISC | 3001-3146 | ||
| 21 | 426-15-12720 | PLATE | 3001- | |
| 22 | 154-15-41140 | HOUSING | 3001- | |
| 23 | 154-15-42750 | PISTON | 3001- | |
| 24 | 175-15-59250 | RING,SEAL (KIT) | 3001- | |
| 25 | 582-15-19240 | RING,SEAL (KIT) | 3001- | |
| 26 | 154-15-41130 | HOUSING | 3001- | |
| 27 | 04020-01434 | PIN,DOWEL | 3001- |
