| Item | Part No. | Part Name | Qty | Serial No. |
| (154-15-01012) | TRANSMISSION ASS'Y | (1237)- | ||
| (154-15-01011) | TRANSMISSION ASS'Y | 35127-(1236) | ||
| (154-15-01010) | TRANSMISSION ASS'Y | 35001-35126 | ||

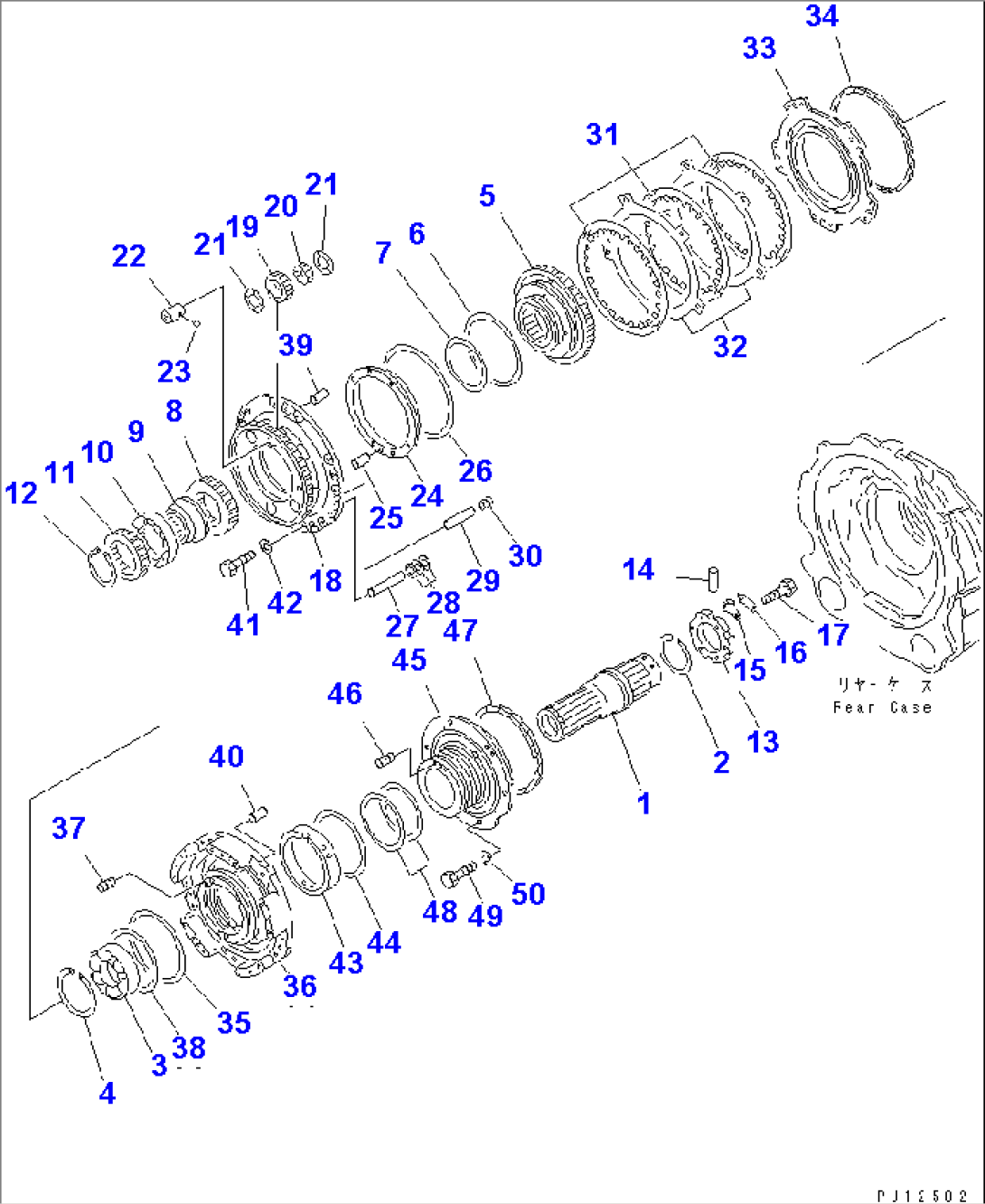

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2513. | ||||
| (154-15-01110) | TRANSMISSION ASS'Y | 35001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2505. | ||||
| 1 | 154-15-42131 | SHAFT | 35001- | |
| 2 | 07018-11205 | RING,SEAL | 35001- | |
| 3 | 06000-06019 | BEARING | 35001- | |
| 4 | 04071-00145 | RING,SNAP | 35001- | |
| 5 | 154-15-42270 | HUB | 35001- | |
| 6 | 07018-12205 | RING,SEAL | 35001- | |
| 7 | 144-15-11290 | RING,SEAL | 35001- | |
| 8 | 154-15-42210 | GEAR | 35001- | |
| 9 | 154-15-42150 | COLLAR | 35001- | |
| 10 | 06000-06922 | BEARING | 35001- | |
| 11 | 154-15-42220 | GEAR | 35001- | |
| 12 | 04064-09530 | RING,SNAP | 35001- | |
| 13 | 234-21-12180 | NUT | 35001- | |
| 14 | 175-15-42220 | PIN | 35001- | |
| 15 | 234-21-12190 | PLATE | 35001- | |
| 16 | 234-21-12210 | PLATE (KIT) | 35001- | |
| 17 | 01010-50814 | BOLT | 35001- | |
| 18 | 154-15-42310 | CARRIER | 35001- | |
| 19 | 154-15-42410 | GEAR | 35001- | |
| 20 | 154-15-49410 | BEARING | 35001- | |
| 21 | 569-15-32560 | WASHER,THRUST | 35001- | |
| 22 | 154-15-42510 | SHAFT | 35001- | |
| 23 | 04260-00635 | BALL | 35001- | |
| 24 | 154-15-42930 | COVER | 35001- | |
| 25 | 04020-00616 | PIN,DOWEL | 35001- | |
| 26 | 568-15-12950 | RING,SNAP | 35001- | |
| 27 | 154-15-41270 | PIN | 35001- | |
| 28 | 175-15-42880 | SPRING | 35001- | |
| 29 | 154-15-41290 | PIN | 35001- | |
| 30 | 421-15-12910 | SPRING | 35001- | |
| 31 | 424-15-12710 | DISC | (1237)- | |
| 195-15-42810 | DISC | 35001-(1236) | ||
| 32 | 424-15-12720 | PLATE | 35001- | |
| 33 | 175-15-62730 | PISTON | 35001- | |
| 34 | 195-15-49210 | RING,SEAL | 35001- | |
| 35 | 113-15-29250 | RING,SEAL | 35001- | |
| 154-15-01220 | HOUSING ASS'Y | 35001- | ||
| 36 | \6\ | HOUSING | 35001- | |
| 37 | 566-15-41320 | PLUG | 35001- | |
| 38 | 195-15-49240 | RING,SEAL | (1237)- | |
| \1\195-15-39280 | RING,SEAL | 35001-(1236) | ||
| 39 | 04020-01228 | PIN,DOWEL | 35001- | |
| 40 | 04020-00616 | PIN,DOWEL | 35001- | |
| 41 | 01010-51235 | BOLT | 35001- | |
| 42 | 01643-31232 | WASHER | 35001- | |
| 43 | 175-15-62830 | COLLAR | 35001- | |
| 44 | 125-15-29510 | RING | 35001- | |
| 154-15-01210 | CAGE ASS'Y | 35001- | ||
| 45 | \6\ | CAGE | 35001- | |
| 46 | 175-15-11230 | PLUG | 35001- | |
| 47 | 154-15-49210 | RING,SEAL (KIT) | 35001- | |
| 48 | 19M-15-19260 | RING,SEAL | 35001- | |
| 49 | 01010-61435 | BOLT | 35001- | |
| 50 | 01643-31445 | WASHER | 35001- |
