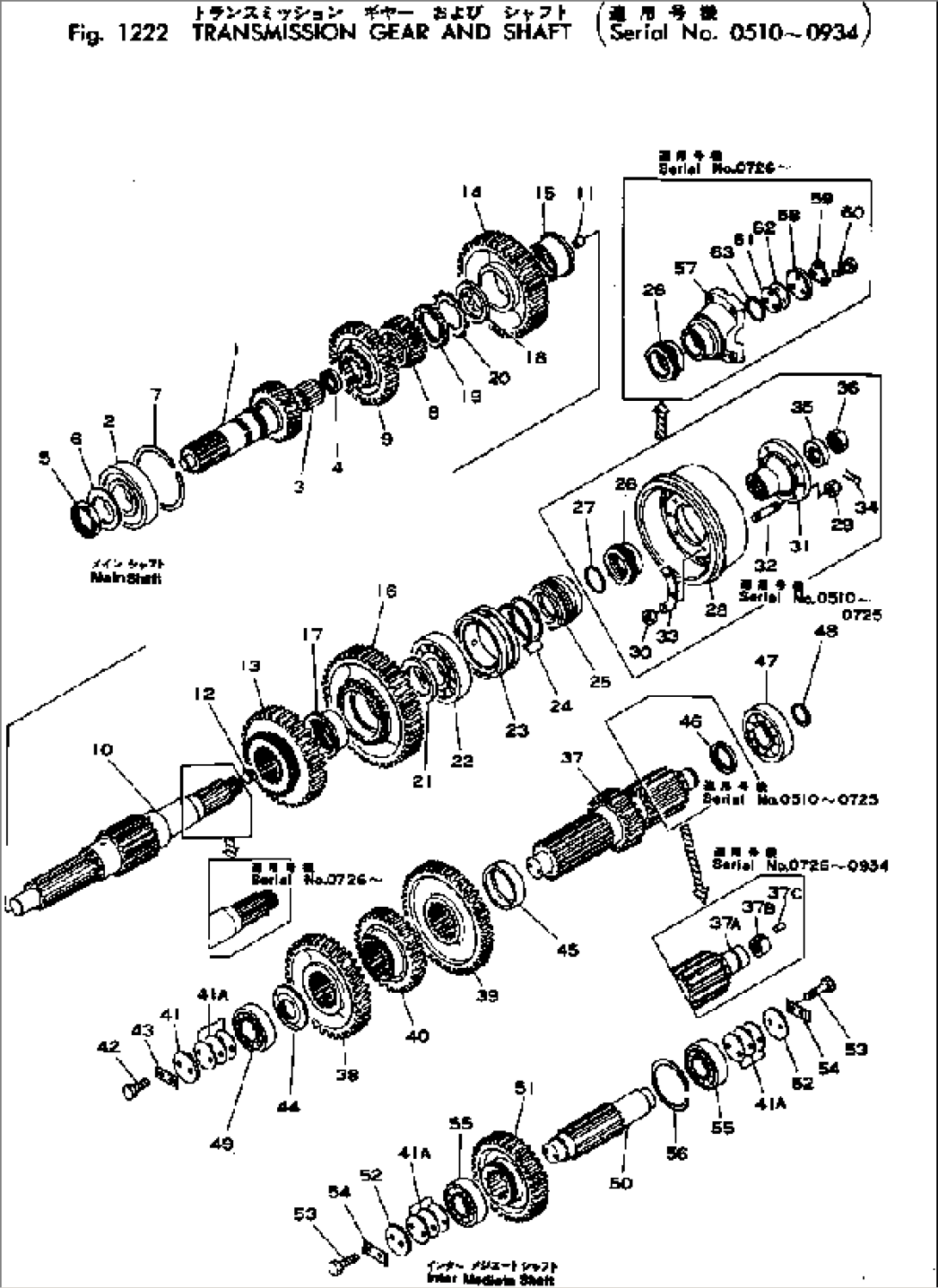

TRANSMISSION GEAR AND SHAFT(#510-934)

Item	Part No.	Part Name	Qty	Serial No.
	565-14-70003	TRANSMISSION ASS'Y,(FOR L.H. STEERING)		726-934
	565-14-70002	TRANSMISSION ASS'Y,(FOR L.H. STEERING)		726-725
	565-14-10005	TRANSMISSION ASS'Y,(FOR R.H. STEERING)		726-934
	565-14-10004	TRANSMISSION ASS'Y,(FOR R.H. STEERING)		510-725
1	\3\565-14-12530	GEAR		881-934
		(565-14-12521{565-14-12531)}
	\3\560-14-12212	GEAR		510-880
		(565-14-12521{565-14-12531)}
2	06001-06314	BEARING		510-934
3	560-14-12221	BEARING		510-934
4	560-14-12233	SPACER		510-934
5	560-14-12241	NUT		510-934
6	560-14-12251	WASHER		510-934
7	560-14-12261	RING		510-934
8	565-14-12311	GEAR,5TH		510-934
9	\3\565-14-12520	GEAR,3RD AND 4TH		881-934
		(565-14-12521{565-14-12531)}
	\3\560-14-12322	GEAR,3RD AND 4TH		510-880
		(565-14-12521{565-14-12531)}
	565-14-12011	SHAFT ASS'Y		726-934
	565-14-12010	SHAFT ASS'Y		510-725
10	565-14-12111	SHAFT		726-934
	565-14-12110	SHAFT		510-725
11	565-14-12130	PLUG		726-934
	560-14-12120	NOZZLE		510-725
12	07043-00211	PLUG		726-934
	07043-00312	PLUG		534-725
	07043-00211	PLUG,(FOR SHIPPING)		510-533
13	560-14-12361	GEAR		510-934
	560-14-00024	GEAR ASS'Y,2ND		935-
	\0\560-14-00023	GEAR ASS'Y,2ND		510-934
14	560-14-12333	GEAR,2ND		510-934
15	560-14-12351	BUSHING		935-
	\0\560-14-12350	BUSHING		510-934
	560-14-00033	GEAR ASS'Y		935-
	\0\560-14-12032	GEAR ASS'Y		726-934
	\0\560-14-00032	GEAR ASS'Y		510-725
16	560-14-12342	GEAR		510-934
17	560-14-12351	BUSHING		935-
	\0\560-14-12350	BUSHING		510-934
18	565-14-12410	WASHER		510-934
19	\3\565-14-12420	NUT		510-934
		(565-14-12421{565-14-12431)}
20	\3\565-14-12430	PLATE		510-934
		(565-14-12421{565-14-12431)}
21	565-14-12440	WASHER		510-934
22	565-14-12640	BEARING		510-934
23	565-14-12611	COLLAR		510-934
24	125-15-12252	RING		510-934
25	565-14-12631	COLLAR		510-934
26	565-14-12712	GEAR		726-934
	565-14-12711	GEAR		510-725
27	07000-05060	O-RING		510-725
	565-14-12900	BRAKE DRUM ASS'Y		510-725
28	565-14-12910	DRUM		510-725
29	01592-01619	NUT		510-725
30	01582-01613	NUT		510-725
31	565-14-12920	FLANGE		510-725
32	565-14-12930	STUD		510-725
33	565-14-12941	WASHER		726-
	\0\565-14-12940	WASHER		510-725
34	04050-14030	PIN		510-725
35	565-14-12960	WASHER		510-725
36	01582-03326	NUT		510-725
37	565-14-13110	SHAFT		510-725
	565-14-13200	SHAFT ASS'Y		726-934
37A	\6\	SHAFT		726-934
37B	565-14-13410	BUSHING		726-934
37C	04020-00616	PIN		726-934
38	560-14-13212	GEAR		510-934
39	565-14-13220	GEAR,5TH		510-934
40	560-14-13234	GEAR,3RD		935-
	\6\	GEAR,3RD		510-934
41	560-14-13370	PLATE		510-934
41A	565-14-13900	SHIM ASS'Y		510-934
	\6\	SHIMÂ¤ 0.2MM		510-934
	\6\	SHIMÂ¤ 0.3MM		510-934
	\6\	SHIMÂ¤ 1.0MM		510-934
42	01050-61020	BOLT		510-934
	(\2\01050-51020)	BOLT		(510-934)
43	565-14-13310	LOCK		510-934
44	560-14-13312	SPACER		510-934
45	560-14-13320	SPACER		510-934
46	560-14-13330	SPACER		510-725
	560-14-13330	SPACER,(FOR R.H. STEERING)		510-934
47	06000-06410	BEARING		510-934
48	560-14-13341	RING		510-934
49	565-14-13120	BEARING		510-934
	560-14-04000	SHAFT ASS'Y		510-934
50	560-14-14110	SHAFT		510-934
51	560-14-14120	GEAR		510-934
52	560-14-13370	PLATE		510-934
53	01050-61020	BOLT		510-934
	(\2\01050-51020)	BOLT		(510-934)
54	565-14-13310	LOCK		510-934
55	565-14-13120	BEARING		510-934
56	560-14-14131	RING		510-934
57	567-22-11151	COUPLING		726-934
58	567-22-11160	HOLDER		726-934
59	567-22-11170	LOCK		726-934
60	01010-61230	BOLT		726-934
	(\2\01010-51230)	BOLT		(726-934)
61	565-14-16510	SHIMÂ¤ 0.2MM		726-934
62	565-14-16520	SHIMÂ¤ 0.3MM		726-934
63	565-22-12130	O-RING		726-934
