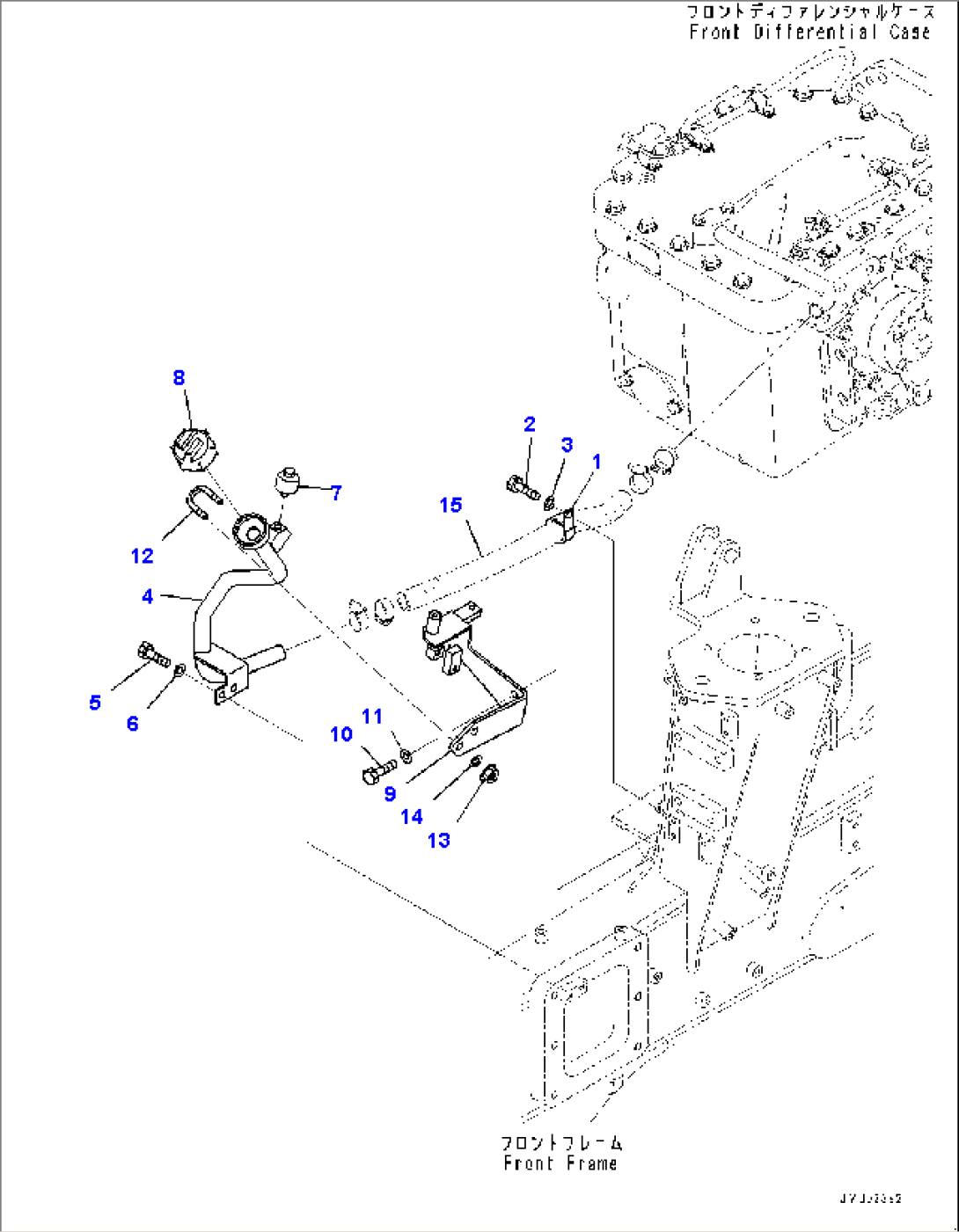

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-03-12620 | Clip | 10001- | |
| 2 | 01010-81016 | Bolt | 10001- | |
| 3 | 01643-31032 | Washer | 10001- | |
| 4 | 56B-27-31140 | Tube | 10001- | |
| 5 | 01010-81020 | Bolt | 10001- | |
| 6 | 01643-31032 | Washer | 10001- | |
| 7 | 07030-00252 | Breather | 10001- | |
| 8 | 07051-01000 | Cap, Oil Filler | 10001- | |
| 8 | 07051-00005 | Gasket | 10001- | |
| 9 | 56B-27-31151 | Bracket | 10001- | |
| 10 | 01010-81020 | Bolt | 10001- | |
| 11 | 01643-31032 | Washer | 10001- | |
| 12 | 07283-32738 | Clip, Pipe | 10001- | |
| 13 | 22P-70-12160 | Nut | 10001- | |
| 14 | 01643-31032 | Washer | 10001- | |
| 15 | (07260-22656) | Hose | - |
