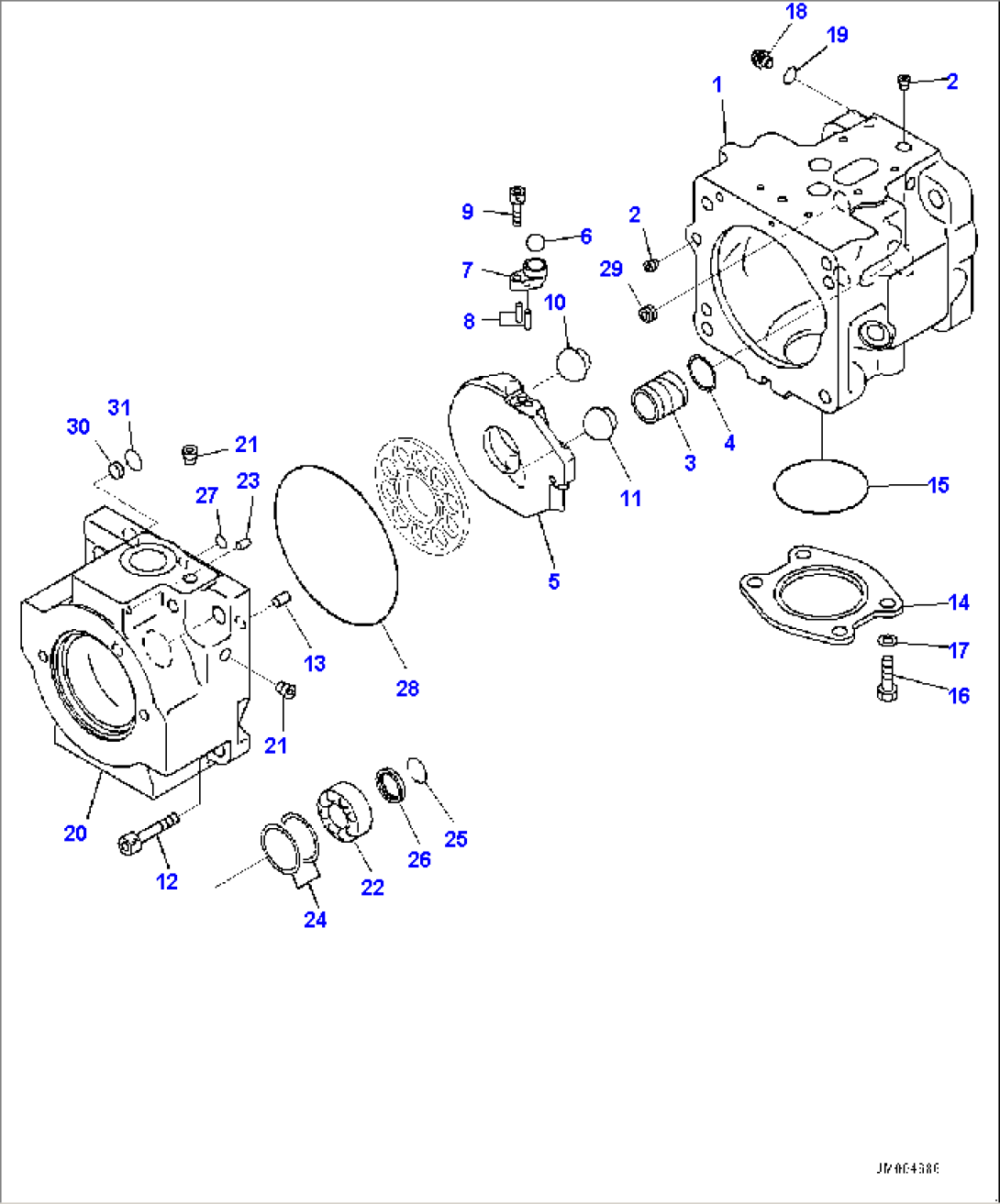

| Item | Part No. | Part Name | Qty | Serial No. |
| 708-1T-00620 | Pump Assembly | 10001- | ||
| (708-1T-01620) | Pump Subassembly | 10001- | ||
| (708-1T-04690) | Case Assembly | 10001- | ||
| 1 | Case, Pump | 10001- | ||
| 2 | Plug, Stocking | 10001- | ||
| 3 | Sleeve | 10001- | ||
| 4 | Ring | 10001- | ||
| 5 | (708-1T-13430) | Cam, Rocker | 10001- | |
| 6 | (04260-01270) | Ball | 10001- | |
| 7 | (708-3S-14141) | Spacer | 10001- | |
| 8 | (708-1S-13420) | Pin | 10001- | |
| 9 | (01252-60616) | Bolt, Hexagon Socket Head | 10001- | |
| 10 | (708-1T-33432) | Ball, Retainer | 10001- | |
| 11 | (708-1T-33470) | Ball, Retainer | 10001- | |
| 12 | (01252-61235) | Bolt, Hexagon Socket Head | 10001- | |
| 13 | (04020-01024) | Pin, Dowel | 10001- | |
| 14 | 708-1S-19950 | Plate | 10001- | |
| 15 | 07000-E2065 | O-ring | 10001- | |
| 16 | 01010-61025 | Bolt | 10001- | |
| 17 | 01643-31032 | Washer | 10001- | |
| 18 | 708-8E-16150 | Plug | 10001- | |
| 19 | 07002-61023 | O-ring | 10001- | |
| (708-1T-04670) | Cap Subassembly | 10001- | ||
| 20 | Cap, End | 10001- | ||
| 21 | Plug, Stocking | 10001- | ||
| 22 | (708-1S-12260) | Bearing | 10001- | |
| 23 | (720-68-19610) | Pin | 10001- | |
| 24 | (708-7T-05031) | Spacer Kit | 10001- | |
| Spacer, T=1.6mm | 10001- | |||
| Spacer, T=1.7mm | 10001- | |||
| Spacer, T=1.8mm | 10001- | |||
| Spacer, T=1.9mm | 10001- | |||
| Spacer, T=2.0mm | 10001- | |||
| Spacer, T=2.1mm | 10001- | |||
| Spacer, T=2.2mm | 10001- | |||
| Spacer, T=1.5mm | 10001- | |||
| Spacer, T=1.4mm | 10001- | |||
| 25 | (708-1S-12280) | Ring, Wear | 10001- | |
| 26 | (708-1S-12330) | Retainer | 10001- | |
| 27 | (07000-B1006) | O-ring | 10001- | |
| 28 | (07000-B2130) | O-ring | 10001- | |
| 29 | (708-3T-11310) | Orifice | 10001- | |
| 30 | 708-2L-25480 | Filter | 10001- | |
| 31 | 708-2L-25490 | O-ring | 10001- |
