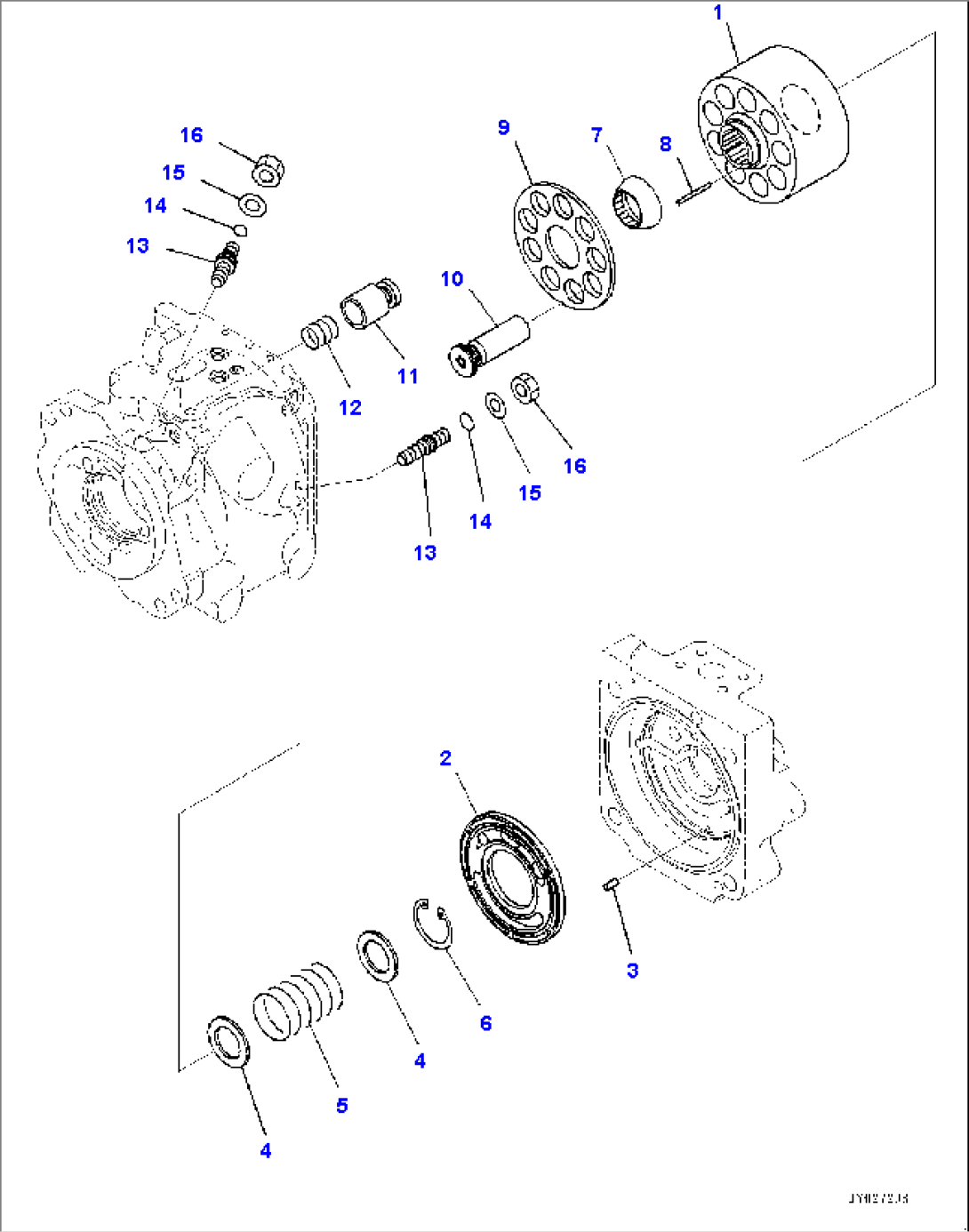

| Item | Part No. | Part Name | Qty | Serial No. |
| 708-1W-02260 | Pump Assembly, Piston | 10001- | ||
| 708-1W-02270 | Pump Assembly, Front | 10001- | ||
| (708-1W-08270) | Pump Subassembly | 10001- | ||
| 1 | (708-1W-43110) | Block, Cylinder | 10001- | |
| 2 | (708-1W-43120) | Plate, Valve | 10001- | |
| 3 | (720-68-19610) | Pin | 10001- | |
| 4 | (708-1W-43130) | Seat | 10001- | |
| 5 | (708-1W-43140) | Spring | 10001- | |
| 6 | (04065-04818) | Ring, Snap | 10001- | |
| 7 | (708-1W-43320) | Guide, Retainer | 10001- | |
| 8 | (708-3T-13360) | Pin | 10001- | |
| 9 | (708-1W-43341) | Retainer, Shoe | 10001- | |
| 10 | (708-1U-13310) | Piston Subassembly | 10001- | |
| 11 | (708-1W-44170) | Piston | 10001- | |
| 12 | (708-1W-44140) | Spring | 10001- | |
| 13 | (708-1U-14240) | Screw | 10001- | |
| 14 | (07000-B2011) | O-ring | 10001- | |
| 15 | (01643-31232) | Washer | 10001- | |
| 16 | (01582-11210) | Nut | 10001- |
