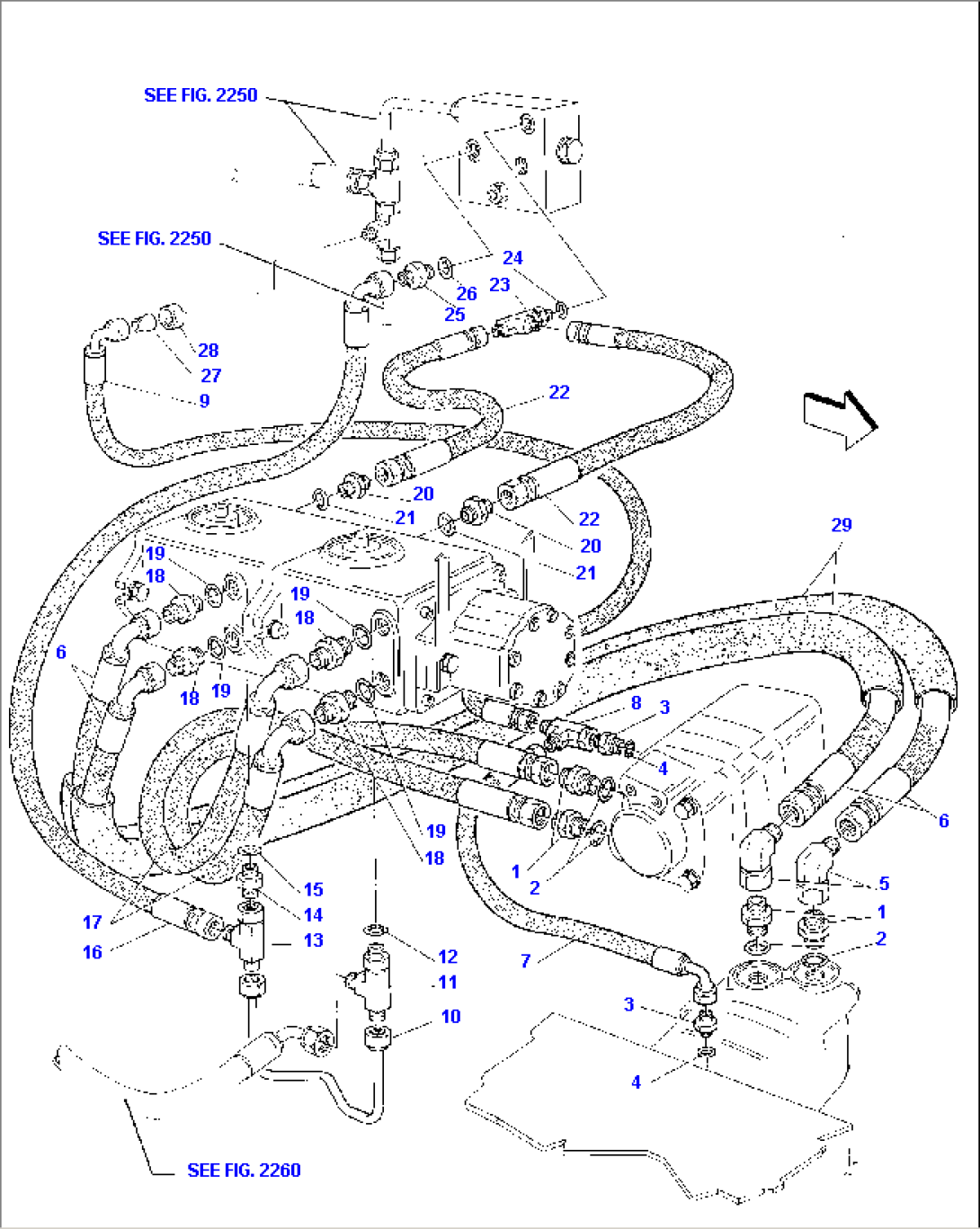

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 500351720 | UNION | 5418- | |
| 2 | 855051119 | O-RING | 5418- | |
| 3 | 500351744 | UNION | 5418- | |
| 4 | 855051111 | O-RING | 5418- | |
| 5 | 500355609 | UNION | 5418- | |
| 6 | 392372001 | HOSE | 5418- | |
| 7 | 852110028 | HOSE | 5418- | |
| 8 | 500355912 | TEE | 5418- | |
| 9 | 852110028 | HOSE | 5418- | |
| 10 | 333310080 | PIPE | 5418-9702 | |
| 10 | 333310095 | PIPE | 9709- | |
| 11 | 333310052 | UNION | 5418-9702 | |
| 11 | 333310094 | UNION | 9709- | |
| 12 | 855051119 | O-RING | 5418- | |
| 13 | 500355907 | UNION | 5418- | |
| 14 | 333310053 | UNION | 5418- | |
| 15 | 855051119 | O-RING | 5418- | |
| 16 | 392011046 | HOSE | 5418- | |
| 17 | 392372002 | HOSE | 5418- | |
| 18 | 500358768 | UNION | 5418- | |
| 19 | 855051213 | O-RING | 5418- | |
| 20 | 500358758 | UNION | 5418- | |
| 21 | 855051616 | O-RING | 5418- | |
| 22 | 392009047 | HOSE | 5418- | |
| 23 | 500355328 | UNION | 5418- | |
| 24 | 855051119 | O-RING | 5418- | |
| 25 | 500351720 | UNION | 5418- | |
| 26 | 855051119 | O-RING | 5418- | |
| 27 | 500352306 | UNION | 5418- | |
| 28 | 500351118 | NUT | 5418- | |
| 29 | 853011008 | COVERING | 5418- | |
| SEE FIG. 2250 | ||||
| SEE FIG. 2260 |
