| Item | Part No. | Part Name | Qty | Serial No. |
| (14X-14-00012) | TRANSMISSION ASS'Y | 60568- | ||
| (\0\14X-14-00011) | TRANSMISSION ASS'Y | 60388-60567 | ||
| (\0\14X-14-00010) | TRANSMISSION ASS'Y | 60001-60387 | ||

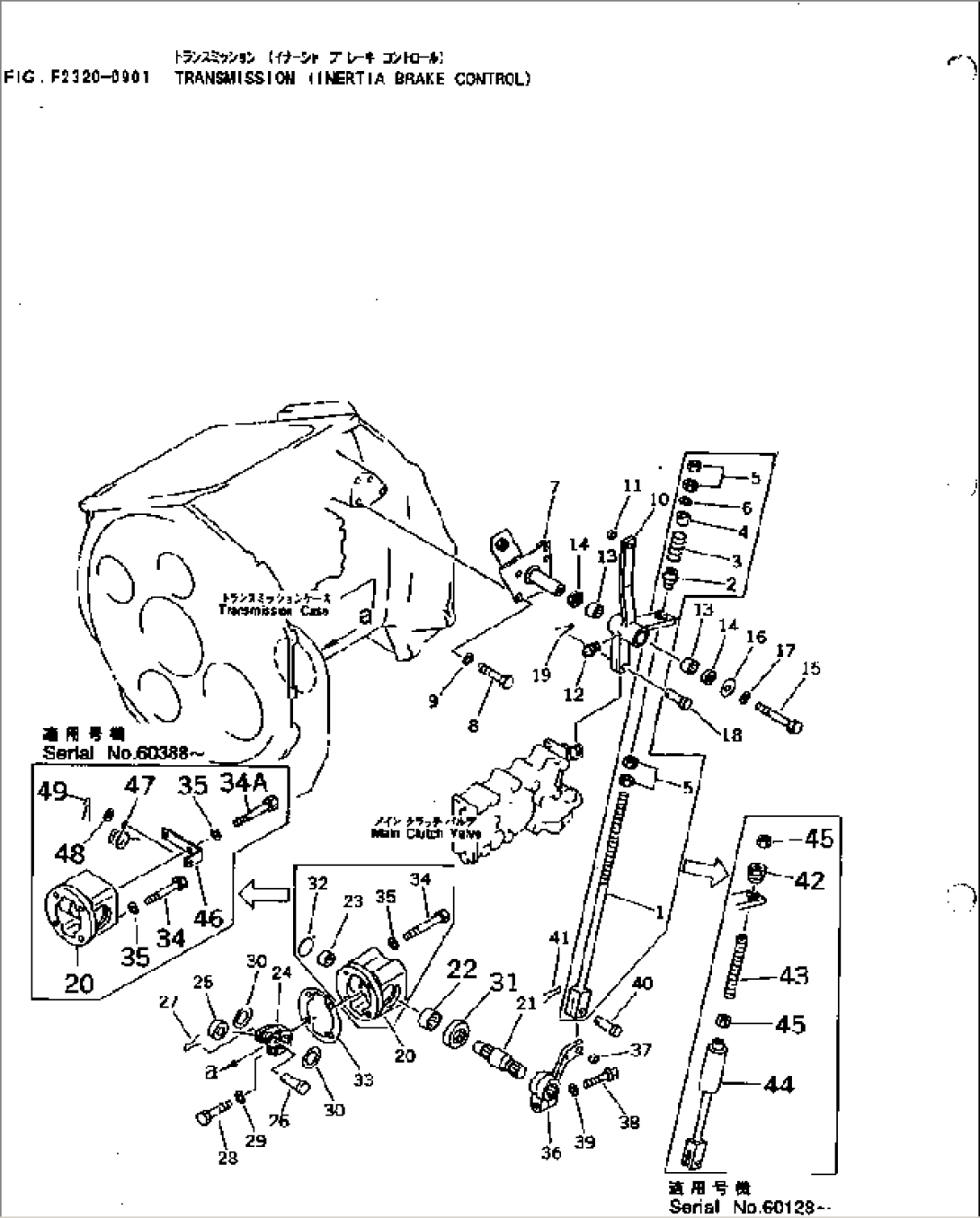

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-0101 TO F2320-0901. | ||||
| 1 | 14X-10-15671 | ROD | 60001-60127 | |
| 2 | 141-10-33261 | GUIDE | 60001-60127 | |
| 3 | 198-15-16210 | SPRING | 60001-60127 | |
| 4 | 141-10-13240 | GUIDE | 60001-60127 | |
| 5 | 01580-11008 | NUT | 60001-60127 | |
| 6 | 01643-31032 | WASHER | 60001-60127 | |
| 7 | 14X-10-15612 | BRACKET | 60001- | |
| 8 | 01010-51030 | BOLT | 60001- | |
| 9 | 01643-31032 | WASHER | 60001- | |
| 10 | 14X-10-15633 | LEVER | 60001- | |
| 11 | 06600-01008 | BUSHING | 60001- | |
| 12 | 07042-00108 | PLUG | 60001- | |
| 13 | 06120-02016 | BEARING | 60001- | |
| 14 | 06122-02004 | SEAL,BEARING | 60001- | |
| 15 | 01011-51005 | BOLT | 60001- | |
| 16 | 141-10-33270 | WASHER | 60001- | |
| 17 | 01643-31032 | WASHER | 60001- | |
| 18 | 04205-10830 | PIN | 60001- | |
| 19 | 04050-12015 | PIN,COTTER | 60001- | |
| 20 | 14X-10-15661 | HOUSING | 60388- | |
| 14X-10-15660 | HOUSING | 60001-60387 | ||
| 21 | 14X-10-15641 | SHAFT | 60388- | |
| \0\14X-10-15640 | SHAFT | 60001-60387 | ||
| 22 | 06120-03020 | BEARING | 60001- | |
| 23 | 06120-02216 | BEARING | 60001- | |
| 24 | 14X-10-15651 | LINK | 60388- | |
| \0\14X-10-15650 | LINK | 60001-60387 | ||
| 25 | 170-33-13330 | ROLLER | 60001- | |
| 26 | 04205-01640 | PIN | 60001- | |
| 27 | 04050-14028 | PIN,COTTER | 60001- | |
| 28 | 01010-51035 | BOLT | 60001- | |
| 29 | 01643-31032 | WASHER | 60001- | |
| 30 | 135-945-1530 | SPACER | 60001- | |
| 31 | 07012-50030 | SEAL,OIL | 60001- | |
| 32 | 07046-13520 | PLUG | 60001- | |
| 33 | 14X-10-11122 | GASKET | 60388- | |
| 14X-10-11120 | GASKET | 60001-60387 | ||
| 34 | 01011-51000 | BOLT | 60388- | |
| 01011-51000 | BOLT | 60001-60387 | ||
| 34A | 01011-51005 | BOLT | 60388- | |
| 35 | 01643-31032 | WASHER | 60001- | |
| 36 | 14X-10-15623 | LEVER | 60388- | |
| 14X-10-15622 | LEVER | 60001-60387 | ||
| 37 | 06600-01008 | BUSHING | 60001- | |
| 38 | 01010-51240 | BOLT | 60001- | |
| 39 | 01643-31232 | WASHER | 60001- | |
| 40 | 04205-11028 | PIN | 60001- | |
| 41 | 04050-13020 | PIN,COTTER | 60001- | |
| 14X-10-15700 | SPRING ASS'Y | 60128- | ||
| 42 | 14X-10-15740 | GUIDE | 60128- | |
| 43 | 14X-10-15750 | ROD | 60128- | |
| 44 | 14X-10-15760 | SPRING,LOOSE | 60128- | |
| 45 | 01582-11210 | NUT | 60128- | |
| 46 | 14X-10-15780 | BRACKET | 60388- | |
| 47 | 14X-10-15770 | SPRING | 60388- | |
| 48 | 01641-20608 | WASHER | 60388- | |
| 49 | 04050-11612 | PIN,COTTER | 60388- |
