| Item | Part No. | Part Name | Qty | Serial No. |
| (714-07-10001) | TRANSMISSION ASS'Y | 53302- | ||
| (714-07-10000) | TRANSMISSION ASS'Y | 53001-53301 | ||
| (714-07-10041) | TRANSMISSION ASS'Y | 53302- | ||

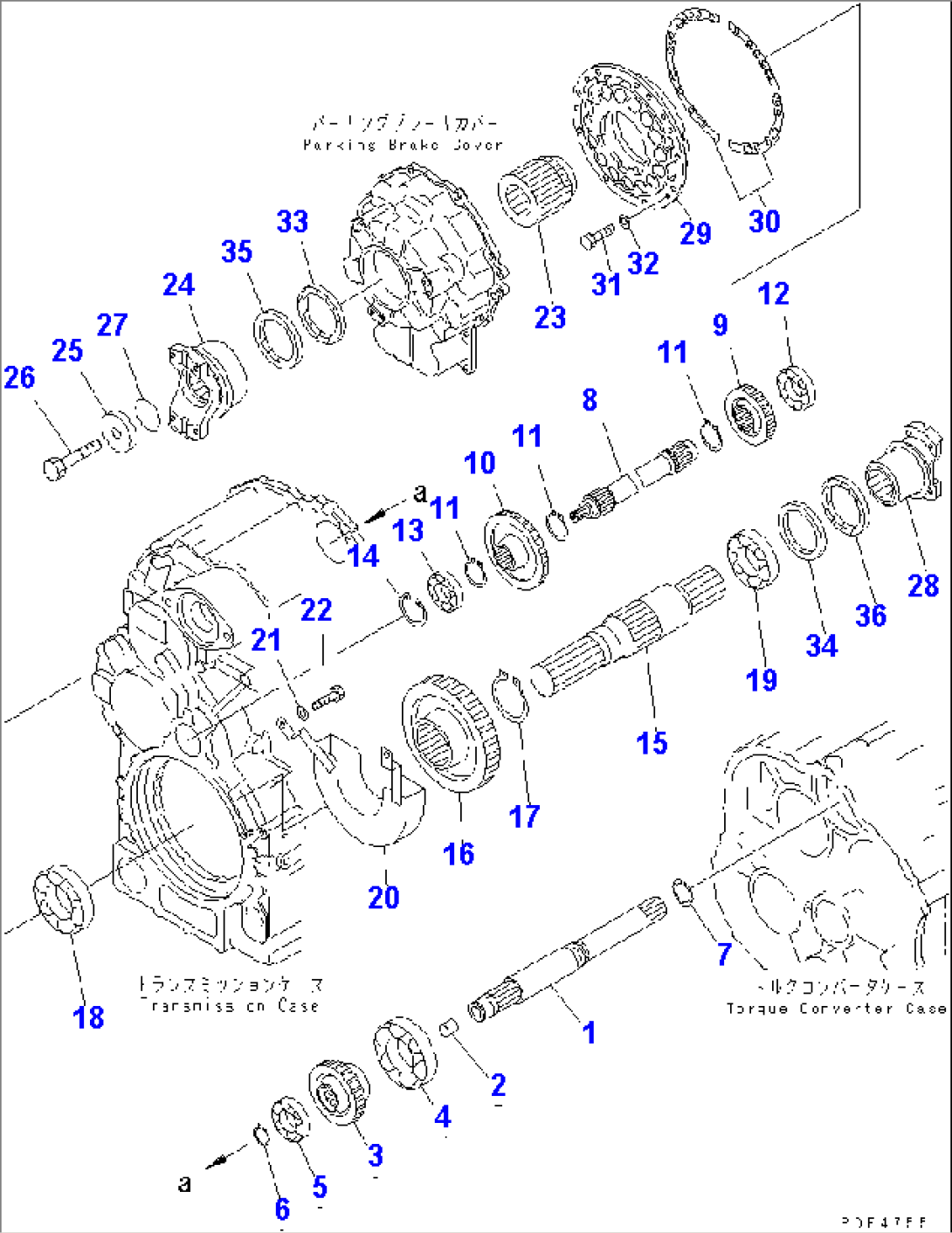

| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-69A0. | ||||
| 714-07-12010 | SHAFT ASS'Y,INPUT | 53001- | ||
| 1 | 714-07-12111 | SHAFT | 53001- | |
| 2 | 714-07-12131 | BUSHING | 53001- | |
| 3 | 714-07-12120 | GEAR, 30 TEETH,INPUT | 53001- | |
| 4 | 06040-06218 | BEARING | 53001- | |
| 5 | 714-16-29340 | BEARING | 54001- | |
| 5 | \0\06040-06309 | BEARING | 53001-53301 | |
| 6 | 04064-04518 | RING,SNAP | 53001- | |
| 7 | 714-07-12290 | RING,SEAL | 53001- | |
| 8 | 714-07-13711 | SHAFT,4TH | 53001- | |
| 9 | 714-07-13720 | GEAR, 27 TEETH | 53001- | |
| 10 | 714-07-13730 | GEAR, 38 TEETH | 53001- | |
| 11 | 04064-05520 | RING,SNAP | 53001- | |
| 12 | 06040-06309 | BEARING | 53001- | |
| 13 | 06040-06208 | BEARING | 53001- | |
| 14 | 04065-08025 | RING,SNAP | 53001- | |
| 15 | 714-07-13811 | SHAFT,OUTPUT | 53001- | |
| 16 | 714-07-13820 | GEAR, 41 TEETH,OUTPUT | 53001- | |
| 17 | 04064-01030 | RING,SNAP | 53001- | |
| 18 | 714-07-19410 | BEARING | 53001- | |
| 19 | 06002-30215 | BEARING | 53001- | |
| 20 | 714-07-13831 | COVER,GEAR | 53001- | |
| 21 | 01643-31232 | WASHER | 53001- | |
| 22 | 01010-81225 | BOLT | 53001- | |
| 23 | 714-07-18692 | HUB,SPLINE | 53001- | |
| 24 | 714-07-14101 | COUPLING ASS'Y,FRONT | 53001- | |
| 24 | 714-07-14120 | DEFLECTOR | 53001- | |
| 25 | 424-20-13520 | HOLDER | 53001- | |
| 26 | 01011-62430 | BOLT | 53001- | |
| 27 | 07000-05065 | O-RING (K1) | 53001- | |
| 28 | 714-07-14201 | COUPLING ASS'Y,REAR | 53001- | |
| 28 | 714-07-14221 | DEFLECTOR | 53001- | |
| 29 | 714-07-18132 | RETAINER | 53001- | |
| 30 | 714-07-18551 | SHIM, 0.05MM | 53001- | |
| 30 | 714-07-18561 | SHIM, 0.5MM | 53001- | |
| 30 | 714-07-18571 | SHIM, 0.2MM | 53001- | |
| 31 | 01010-81235 | BOLT | 53001- | |
| 32 | 01643-31232 | WASHER | 53001- | |
| 33 | 714-07-18530 | SEAL,OIL (K1) | 53001- | |
| 34 | 714-07-18530 | SEAL,OIL (K1) | 53001- | |
| 35 | 714-07-18541 | SEAL,DUST (K1) | 53302- | |
| 35 | \0\714-07-18540 | SEAL,DUST (K1) | 53001-53301 | |
| 36 | 714-07-18541 | SEAL,DUST (K1) | 53302- | |
| 36 | \0\714-07-18540 | SEAL,DUST (K1) | 53001-53301 |
