| Item | Part No. | Part Name | Qty | Serial No. |
| (134-15-61100) | TRANSMISSION ASS'Y | 1001- | ||

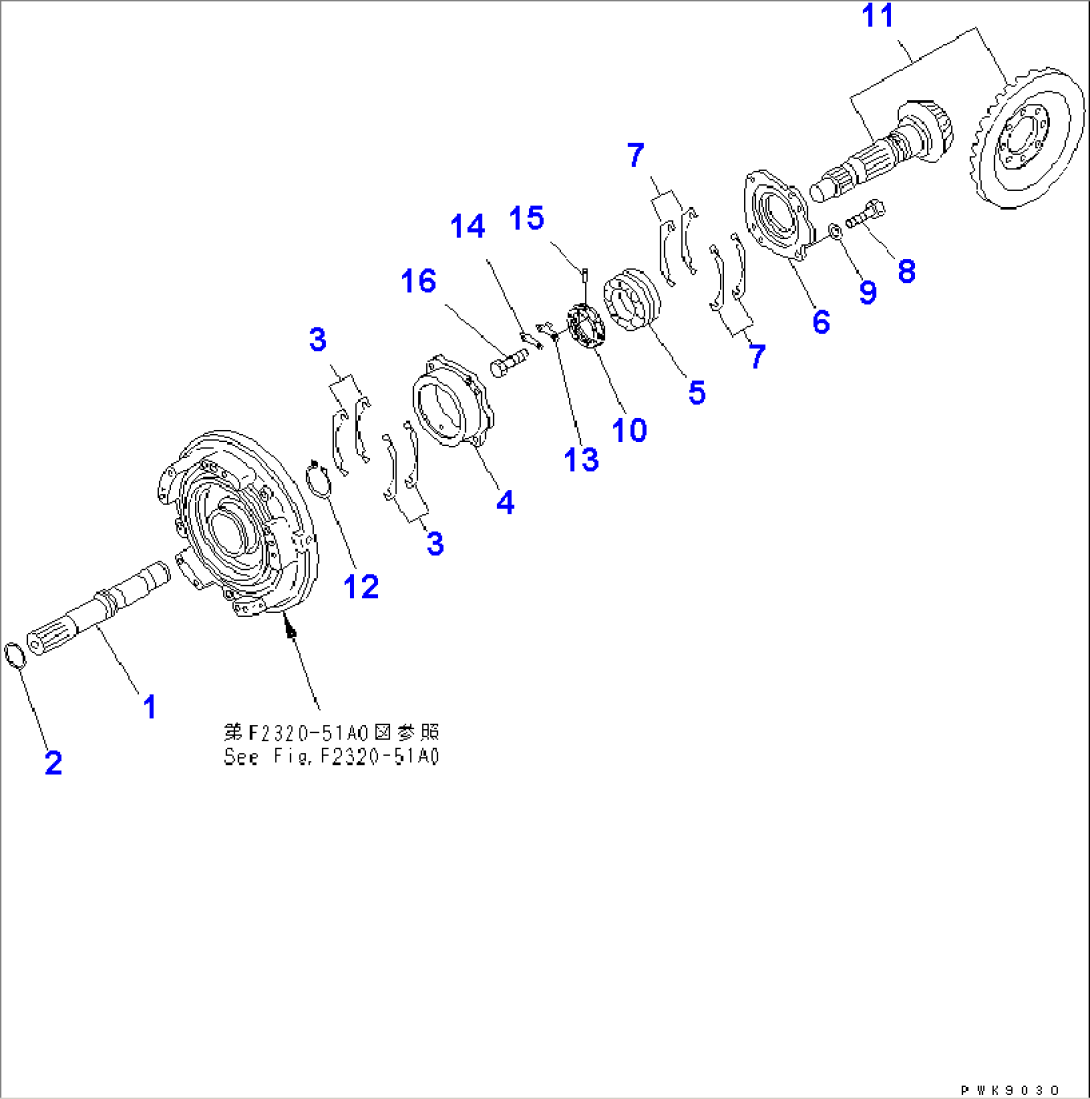

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51A1 TO F2320-60A1. | ||||
| 1 | 14X-15-12110 | SHAFT | 1001- | |
| 2 | 07018-10552 | RING | 1001- | |
| 3 | 134-15-05140 | SHIM KIT (K3) | 1001- | |
| 3 | \6\ | SHIM, 0.3MM | 1001- | |
| 3 | \6\ | SHIM, 1.0MM | 1001- | |
| 3 | \6\ | SHIM, 0.2MM | 1001- | |
| 4 | 134-15-63140 | CAGE | 1001- | |
| 5 | 134-15-62810 | BEARING | 1001- | |
| 6 | 134-15-63130 | COVER | 1001- | |
| 7 | 134-15-05150 | SHIM KIT (K3) | 1001- | |
| 7 | \6\ | SHIM, 0.3MM | 1001- | |
| 7 | \6\ | SHIM, 0.2MM | 1001- | |
| 8 | 01010-61455 | BOLT | 1001- | |
| 9 | 01643-31445 | WASHER | 1001- | |
| 10 | 134-15-63260 | NUT | 1001- | |
| 11 | 134-15-61600 | PINION & SHAFT ASS'Y | 1001- | |
| 11 | \6\ | SHAFT | 1001- | |
| 11 | \6\ | BEVEL GEAR | 1001- | |
| 12 | 04064-07025 | RING | 1001- | |
| 13 | 134-15-63270 | PLATE | 1001- | |
| 14 | 134-15-63280 | LOCK (K3) | 1001- | |
| 15 | 134-15-63290 | PIN | 1001- | |
| 16 | 01010-80616 | BOLT | 1001- |
