| Item | Part No. | Part Name | Qty | Serial No. |

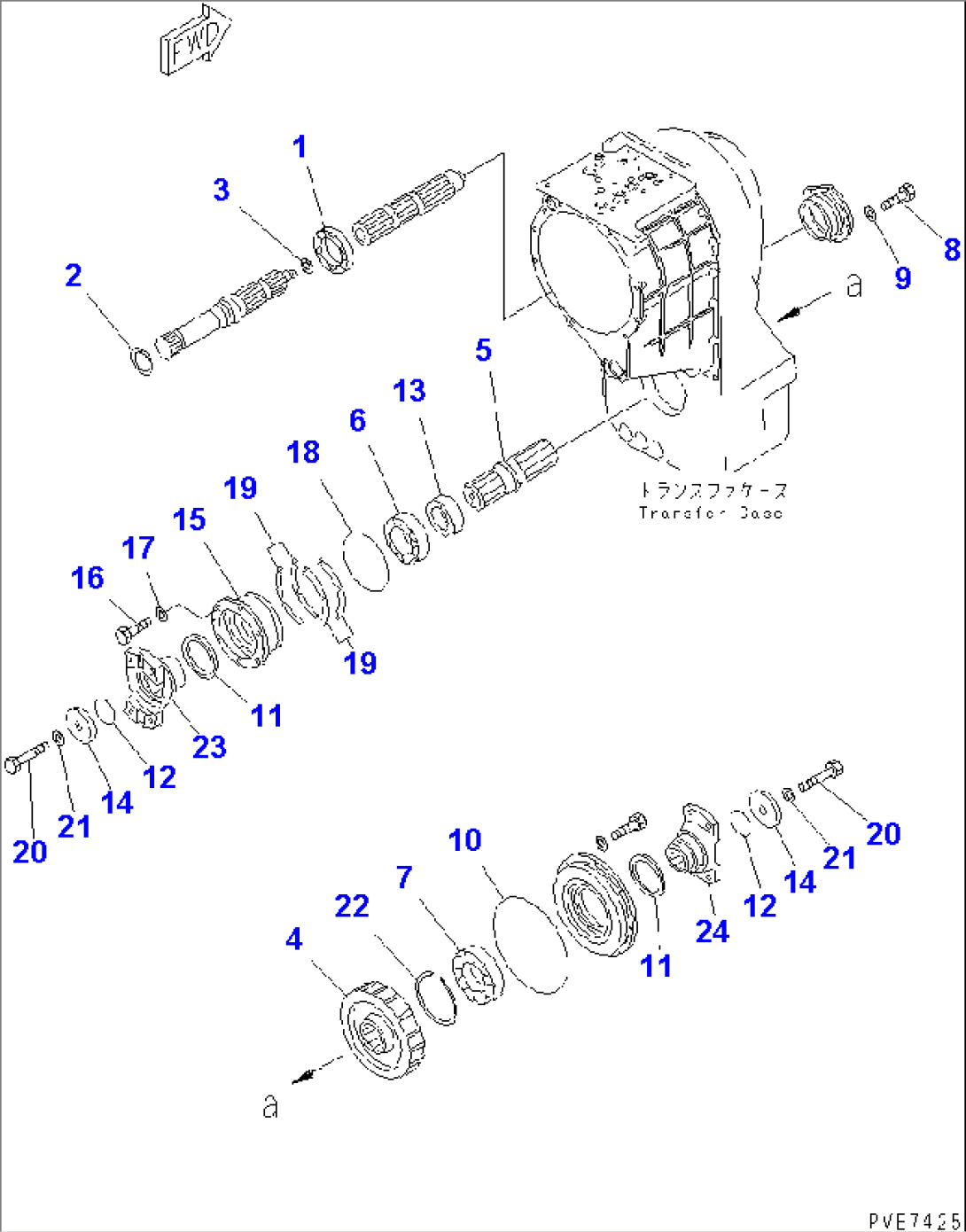

| (427-15-11004) | TRANSMISSION ASS'Y | 52001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-65A0. | ||||
| 1 | 06030-06016 | BEARING | 52001- | |
| 2 | 07018-10854 | RING,SEAL | 52001- | |
| 3 | 07018-10352 | RING,SEAL | 52001- | |
| 4 | 427-15-13241 | GEAR | 52001- | |
| 5 | 427-15-13310 | SHAFT | 52001- | |
| 6 | 427-15-19430 | BEARING | 52001- | |
| 7 | 06032-00228 | BEARING | 52001- | |
| 8 | 01010-81240 | BOLT | 52001- | |
| 9 | 01643-31232 | WASHER | 52001- | |
| 10 | 07000-15405 | O-RING (K3) | 52001- | |
| 11 | 427-15-19120 | SEAL,OIL (K3) | 52001- | |
| 12 | 562-15-19970 | O-RING (K3) | 52001- | |
| 13 | 427-15-13290 | SPACER | 52001- | |
| 14 | 427-15-13270 | HOLDER | 52001- | |
| 15 | 427-15-13190 | CAGE | 52001- | |
| 16 | 01010-81240 | BOLT | 52001- | |
| 17 | 01643-31232 | WASHER | 52001- | |
| 18 | 07000-05260 | O-RING (K3) | 52001- | |
| 19 | 427-15-13510 | SHIM, 0.2MM (K3) | 52001- | |
| 19 | 427-15-13520 | SHIM, 0.15MM (K3) | 52001- | |
| 20 | 562-15-13290 | BOLT | 52001- | |
| 21 | 01643-33690 | WASHER | 52001- | |
| 22 | 04071-00250 | RING,SNAP | 52001- | |
| 23 | 427-15-13260 | COUPLING | 52001- | |
| 24 | 427-15-13250 | COUPLING | 52001- |
