| Item | Part No. | Part Name | Qty | Serial No. |

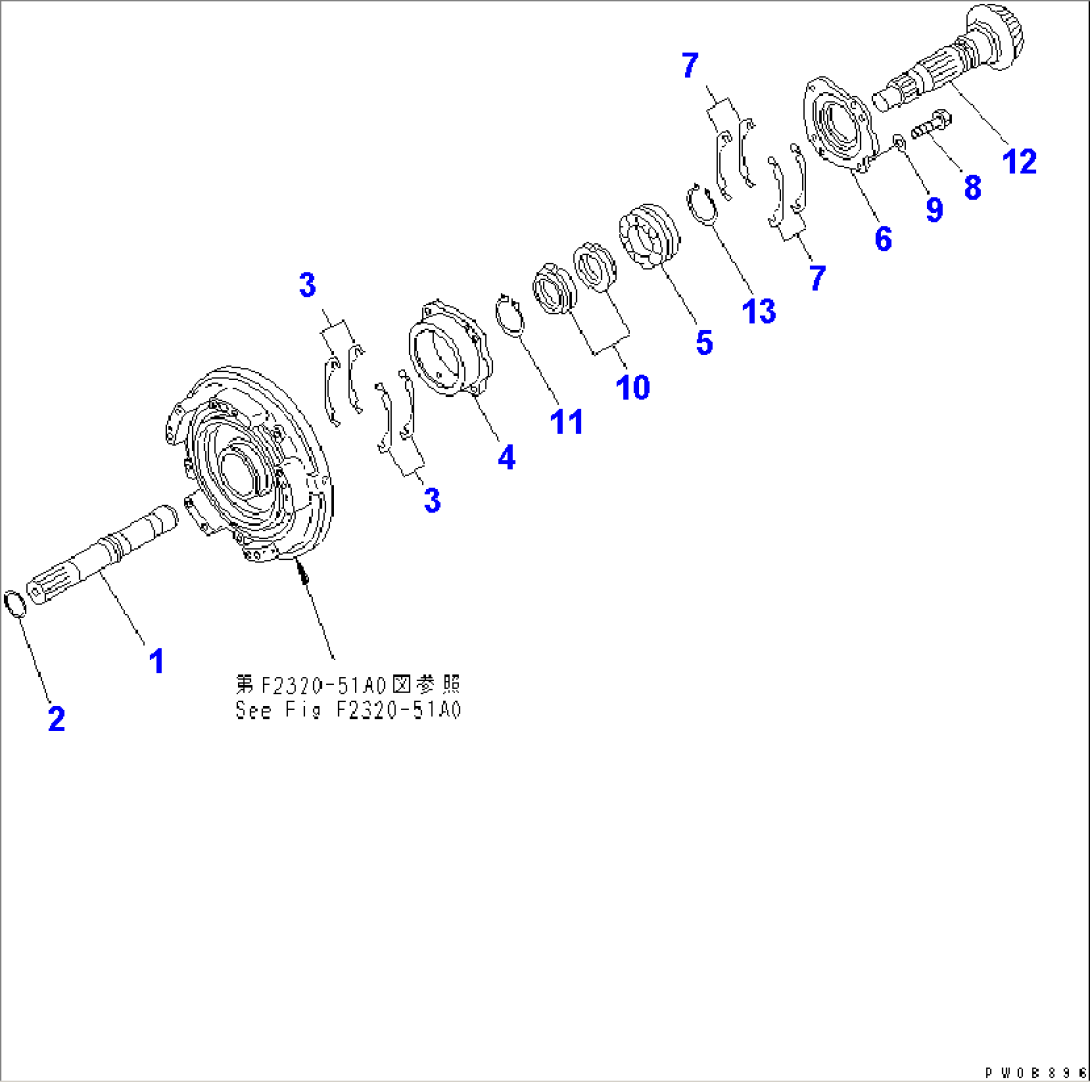

| (14X-15-00012) | TRANSMISSION ASS'Y | 3034-4000 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO 55A0¤ 56A1¤ 57A0 TO 60A0¤ 61A1 AND 62A1 | ||||
| 1 | 14X-15-12110 | SHAFT | 3034-4000 | |
| 2 | 07018-10552 | RING | 3034-@ | |
| 3 | 144-15-21280 | SHIM¤ 0.3MM (K2) | 3034-4000 | |
| 144-15-21270 | SHIM¤ 1.0MM (K2) | 3034-4000 | ||
| 144-15-21260 | SHIM¤ 0.2MM (K2) | 3034-4000 | ||
| 4 | 14X-15-13140 | CAGE | 3034-4000 | |
| 5 | 144-15-22810 | BEARING | 3034-4000 | |
| 6 | 14X-15-13130 | COVER | 3034-4000 | |
| 7 | 144-15-21280 | SHIM¤ 0.3MM (K2) | 3034-4000 | |
| 144-15-21260 | SHIM¤ 0.2MM (K2) | 3034-4000 | ||
| 8 | 01010-61450 | BOLT | 3034-4000 | |
| 9 | 01643-31445 | WASHER | 3034-4000 | |
| 10 | 14X-15-13251 | NUT | 3034-4000 | |
| 11 | 04064-07025 | RING | 3034-4000 | |
| 12 | 14X-15-12931 | SHAFT | 3034-4000 | |
| 13 | 04064-07025 | RING | 3034-4000 |
