| Item | Part No. | Part Name | Qty | Serial No. |
| (14X-15-21001) | TRANSMISSION ASS'Y | 4001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51A0A TO F2320-62A0A . | ||||
| 1 | 14X-15-22110 | SHAFT | 4001- | |
| 2 | 07018-10552 | RING | 3034- | |
| 3 | 14X-15-22121 | SHAFT | 4001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85ess 2 e s/n 3034 up (s6d125e 3) (for southeast asia)
- Power train and final drive
- Transmission (input and output shaft)(#4001 )
Поиск по каталогу

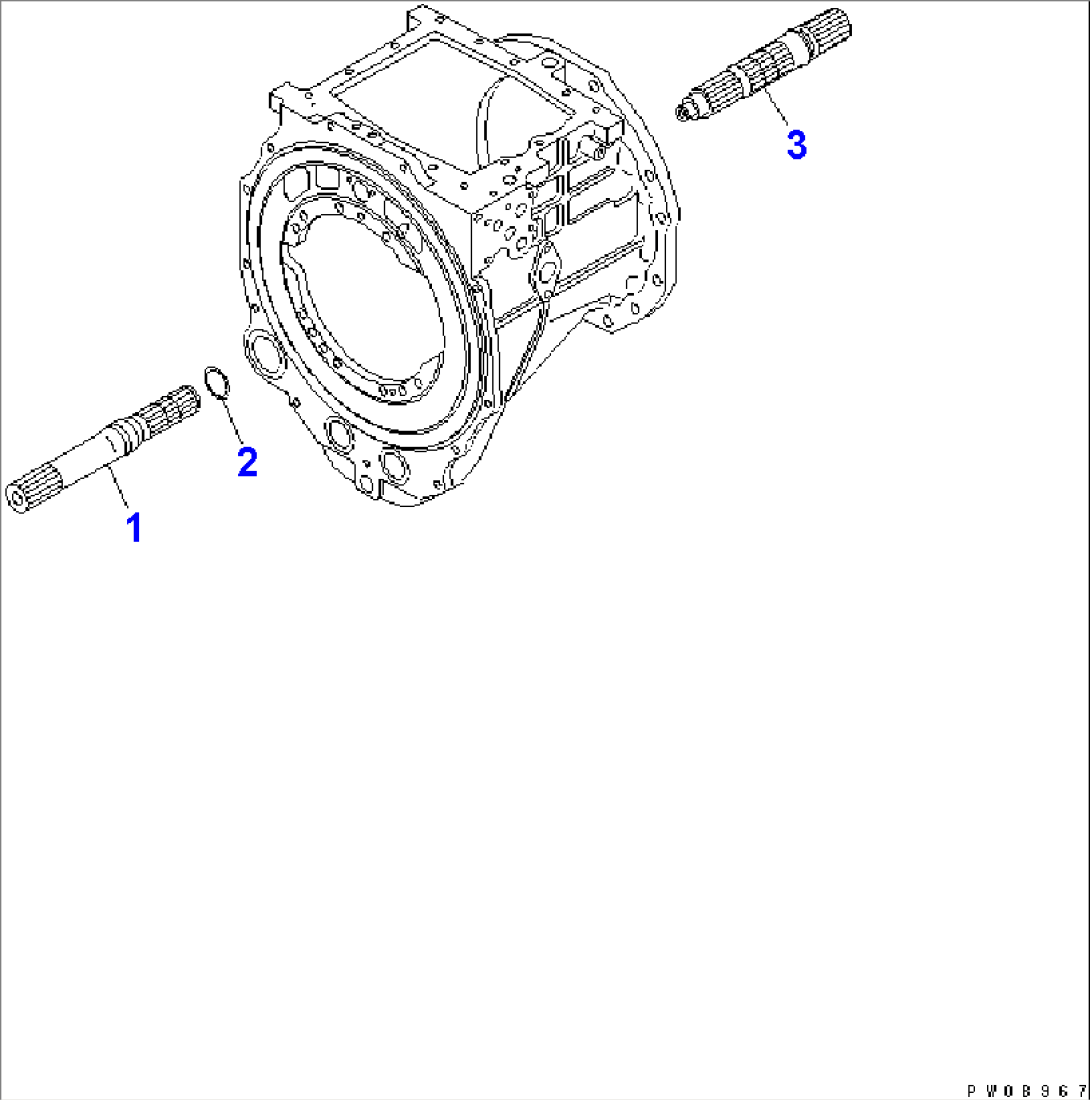

TRANSMISSION (INPUT AND OUTPUT SHAFT)(#4001-)
