| Item | Part No. | Part Name | Qty | Serial No. |
| 1206 955 H91 | SHAFT ASSEMBLY, INPUT | |||
| 1 | (NSS) | SHAFT, INPUT | ||
| 2 | 299 470 R1 | RING, RETAINING | ||
| 3 | 654 684 C1 | ADAPTER, SHAFT | ||
| 4 | 20 556 R1 | PIN, DOWEL | ||
| 5 | 659 760 C2 | PLUG, METERING | ||
| 6 | 28 265 R1 | PIN, SPRING |
- Главная
- Каталог запчастей
- Бульдозеры
- Td 15e s/n p030916 up
- Drive train
- Transmission input shaft
Поиск по каталогу

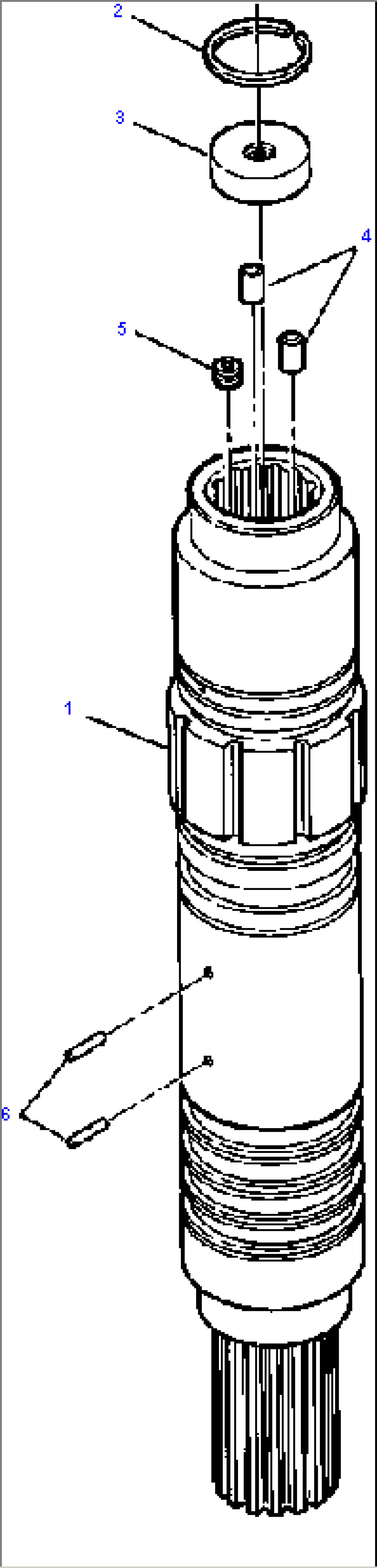

TRANSMISSION INPUT SHAFT
