| Item | Part No. | Part Name | Qty | Serial No. |
| 714-07-40010 | TRANSMISSION ASS'Y | 90001- | ||

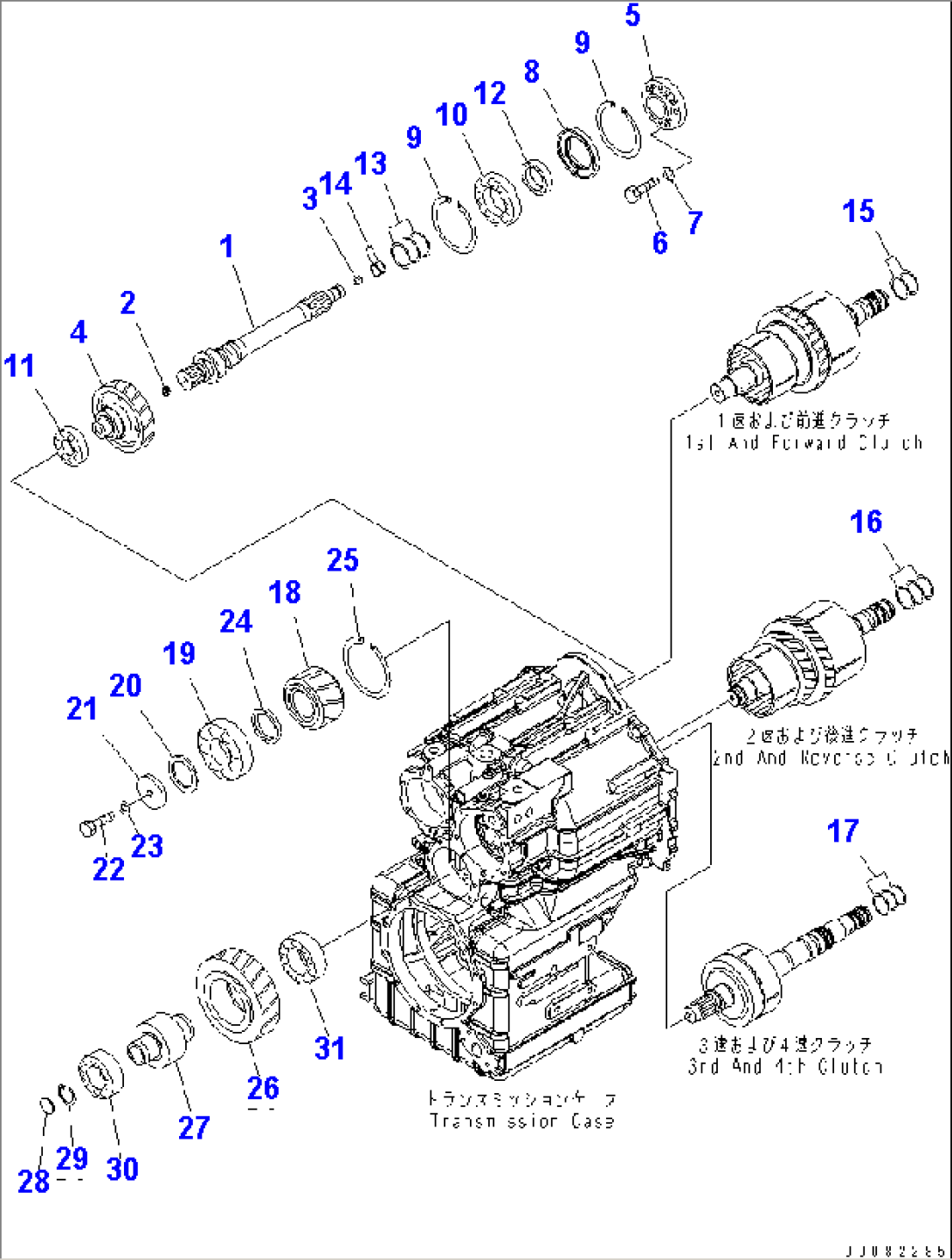

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1A TO F4350-65A0A AND F4350-66A0 TO F4350-70A0. | ||||
| 1 | 714-07-42262 | SHAFT | 90001- | |
| 2 | 17A-22-47360 | PLUG | 90001- | |
| 3 | 07043-70211 | PLUG | 90001- | |
| 4 | 714-07-42511 | GEAR | 90001- | |
| 5 | 714-07-47713 | COVER | 90001- | |
| 6 | 01010-81285 | BOLT | 90001- | |
| 7 | 01643-31232 | WASHER | 90001- | |
| 8 | 714-07-46122 | SPACER | 90001- | |
| 9 | 04071-00140 | RING | 90001- | |
| 10 | 714-07-49640 | BEARING | 90001- | |
| 11 | 714-07-49410 | BEARING | 90001- | |
| 12 | 714-07-49420 | BEARING | 90001- | |
| 13 | 714-12-39210 | RING,SEAL (K1) | 90001- | |
| 14 | 714-21-19810 | RING,SEAL (K1) | 90001- | |
| 15 | 714-12-39230 | RING,SEAL (K1) | 90001- | |
| 16 | 714-12-39230 | RING,SEAL (K1) | 90001- | |
| 17 | 419-15-12122 | RING (K1) | 90001- | |
| 18 | 714-07-43211 | GEAR | 90001- | |
| 19 | 714-07-49610 | BEARING | 90001- | |
| 20 | 714-07-49670 | PLATE | 90001- | |
| 21 | 234-15-23280 | HOLDER | 90001- | |
| 22 | 01011-61615 | BOLT | 90001- | |
| 23 | 01643-31645 | WASHER | 90001- | |
| 24 | 714-07-46320 | SPACER | 90001- | |
| 25 | 04071-00150 | RING,SNAP | 90001- | |
| 26 | 714-07-43223 | GEAR | 90001- | |
| 27 | 714-07-43323 | SHAFT | 90001- | |
| 28 | 714-07-46310 | PLATE | 90001- | |
| 29 | 04065-04518 | RING | 90001- | |
| 30 | 714-12-39360 | BEARING | 90001- | |
| 31 | 714-07-49661 | BEARING | 90001- |
