| Item | Part No. | Part Name | Qty | Serial No. |
| (234-15-21080) | TRANSMISSION ASS'Y | 12009- | ||
| (\0\234-15-00502) | TRANSMISSION ASS'Y | 11001-12008 | ||

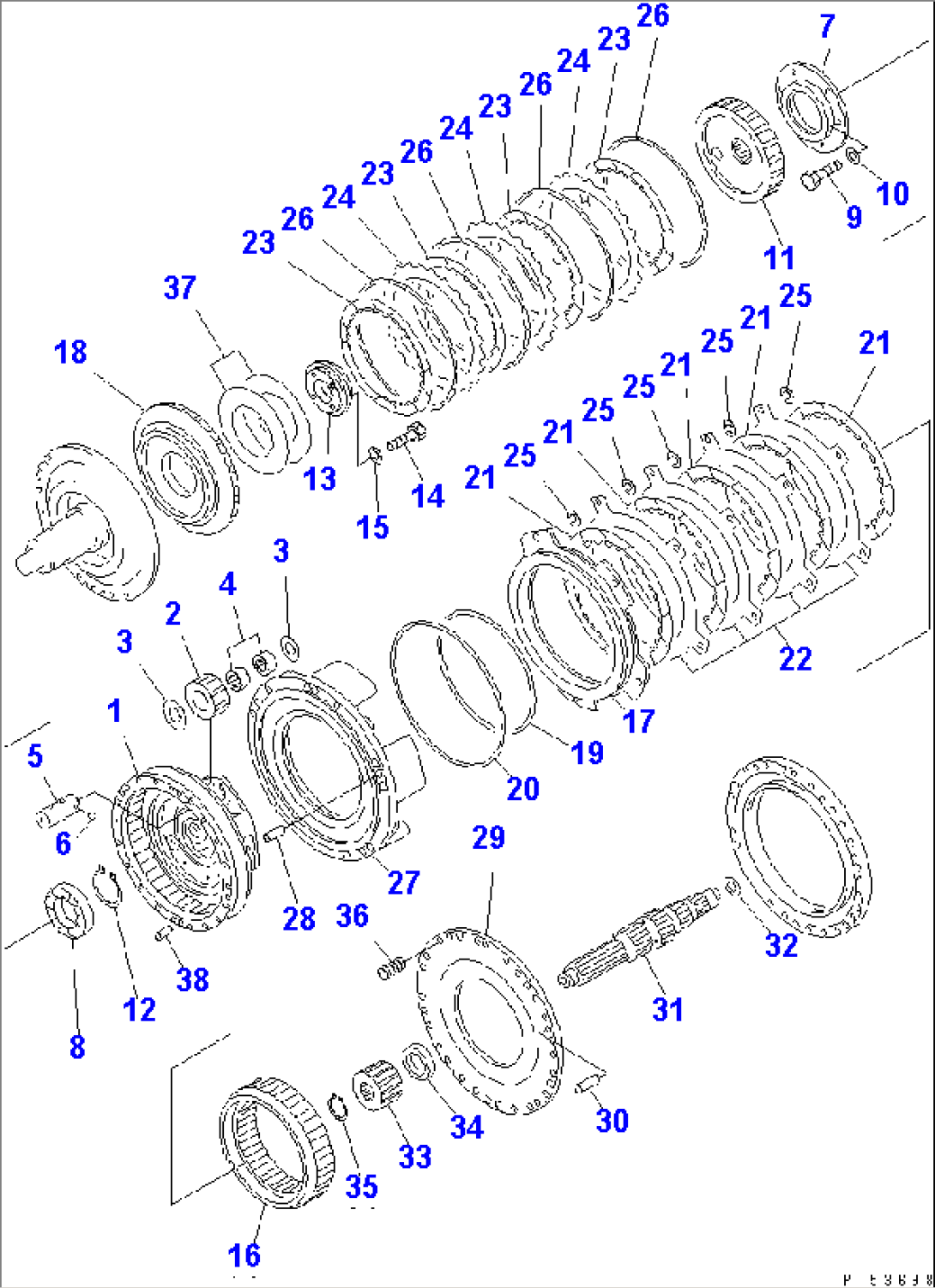

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2411 TO 2471. | ||||
| 1 | 234-15-22360 | CARRIER | 11001- | |
| 2 | 235-15-12460 | GEAR | 11001- | |
| 3 | 09233-13820 | WASHER,THRUST | 11001- | |
| 4 | 09232-03825 | BEARING | 11001- | |
| 5 | 234-15-22550 | SHAFT | 11001- | |
| 6 | 04260-00635 | BALL | 11001- | |
| 7 | 234-15-22380 | CAGE | 11001- | |
| 8 | 06000-06015 | BEARING | 11001- | |
| 9 | 01010-81025 | BOLT | 11001- | |
| 10 | 01643-31032 | WASHER,SPRING | 11001- | |
| 11 | 234-15-22270 | GEAR | 11001- | |
| 12 | 04064-07525 | RING,SNAP | 11001- | |
| 13 | 234-15-22810 | CAGE | 11001- | |
| 14 | 01010-81025 | BOLT | 11001- | |
| 15 | 01643-31032 | WASHER | 11001- | |
| 16 | 234-15-22610 | GEAR,RING | 11001- | |
| 17 | 234-15-22730 | PISTON | 11001- | |
| 18 | 234-15-22770 | PISTON | 11001- | |
| 19 | 569-15-12860 | RING,SEAL | 11001- | |
| 20 | 568-15-12850 | RING,SEAL | 11001- | |
| 21 | 424-15-12711 | DISC | 12009- | |
| \0\424-15-12710 | DISC | 11001-12008 | ||
| 22 | 134-15-12720 | PLATE | 11001- | |
| 23 | 23S-15-12710 | DISC | 11001- | |
| 24 | 232-15-12720 | PLATE | 11001- | |
| 25 | 175-15-42880 | SPRING | 11001- | |
| 26 | 232-15-12960 | SPRING | 11001- | |
| 27 | 235-15-11130 | HOUSING | 11001- | |
| 28 | 04020-01638 | PIN,DOWEL | 11001- | |
| 29 | 234-15-21140 | PLATE | 11001- | |
| 30 | 125-15-11250 | PIN | 11001- | |
| 31 | 234-15-22120 | SHAFT | 11001- | |
| 32 | 07018-10352 | RING,SEAL | 11001- | |
| 33 | 235-15-12260 | GEAR | 11001- | |
| 34 | 234-15-22190 | SPACER | 11001- | |
| 35 | 04064-05520 | RING,SNAP | 11001- | |
| 36 | 175-15-42781 | SPRING | 11001- | |
| 37 | 232-15-12940 | SPRING | 11001- | |
| 38 | 04020-01228 | PIN,DOWEL | 11001- |
