| Item | Part No. | Part Name | Qty | Serial No. |
| (427-15-11004) | TRANSMISSION ASS'Y | 50029- | ||
| (427-15-11003) | TRANSMISSION ASS'Y | 50002-50028 | ||
| (427-15-00013) | TRANSMISSION ASS'Y | 50001-50001 | ||

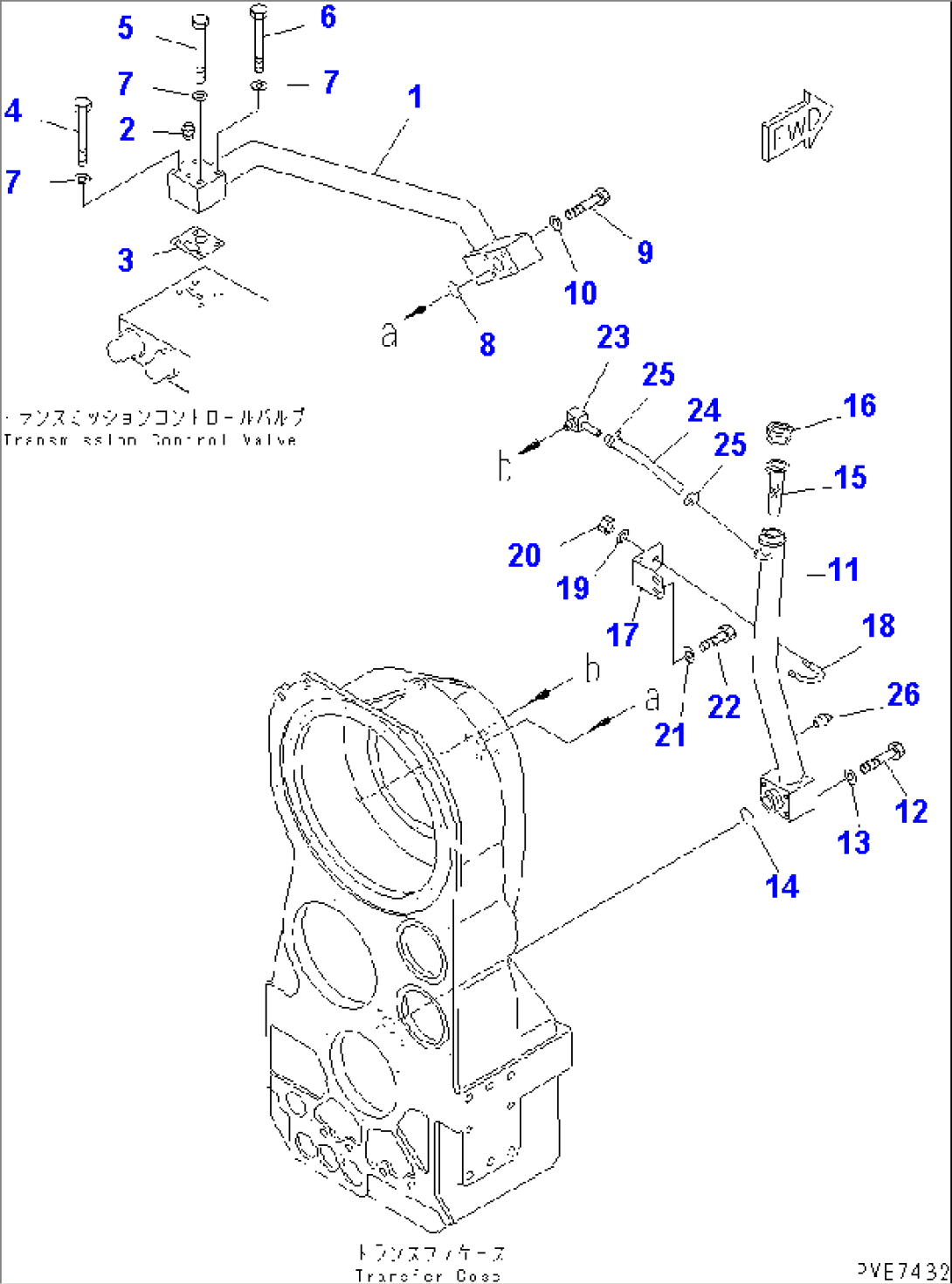

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-65A0. | ||||
| 1 | 427-16-11420 | TUBE | 50001- | |
| 2 | 07042-80108 | PLUG | 50001- | |
| 3 | 427-15-15930 | GASKET (K3) | 50001- | |
| 4 | 01010-81085 | BOLT | 50001- | |
| 5 | 427-15-16410 | BOLT | 50001- | |
| 6 | 427-15-16420 | BOLT | 50001- | |
| 7 | 01643-31032 | WASHER | 50001- | |
| 8 | 07000-73045 | O-RING (K3) | 50001- | |
| 9 | 01010-81290 | BOLT | 50001- | |
| 10 | 01643-31232 | WASHER | 50001- | |
| 11 | 427-15-18102 | TUBE | 50001- | |
| 12 | 01011-81210 | BOLT | 50001- | |
| 13 | 01643-31232 | WASHER | 50001- | |
| 14 | 07000-73048 | O-RING (K3) | 50001- | |
| 15 | 07056-10045 | STRAINER | 50001- | |
| 16 | 07051-00000 | CAP | 50001- | |
| 17 | 427-15-18120 | BRACKET | 50001- | |
| 18 | 07283-36155 | CLIP | 50001- | |
| 19 | 01643-31032 | WASHER | 50001- | |
| 20 | 01582-11008 | NUT | 50001- | |
| 21 | 01643-31232 | WASHER | 50001- | |
| 22 | 01010-81230 | BOLT | 50001- | |
| 23 | 427-15-11610 | ELBOW | 50001- | |
| 24 | 07260-20936 | HOSE | 50001- | |
| 25 | 07281-00197 | CLAMP | 50001- | |
| 26 | 07042-80415 | PLUG | 50001- |
