| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 714-07-30014 | TRANSMISSION ASS'Y | 85366-90000 | ||
| 714-07-30011 | TRANSMISSION ASS'Y | 85165-85365 | ||
| 714-07-30010 | TRANSMISSION ASS'Y | 85001-85164 | ||

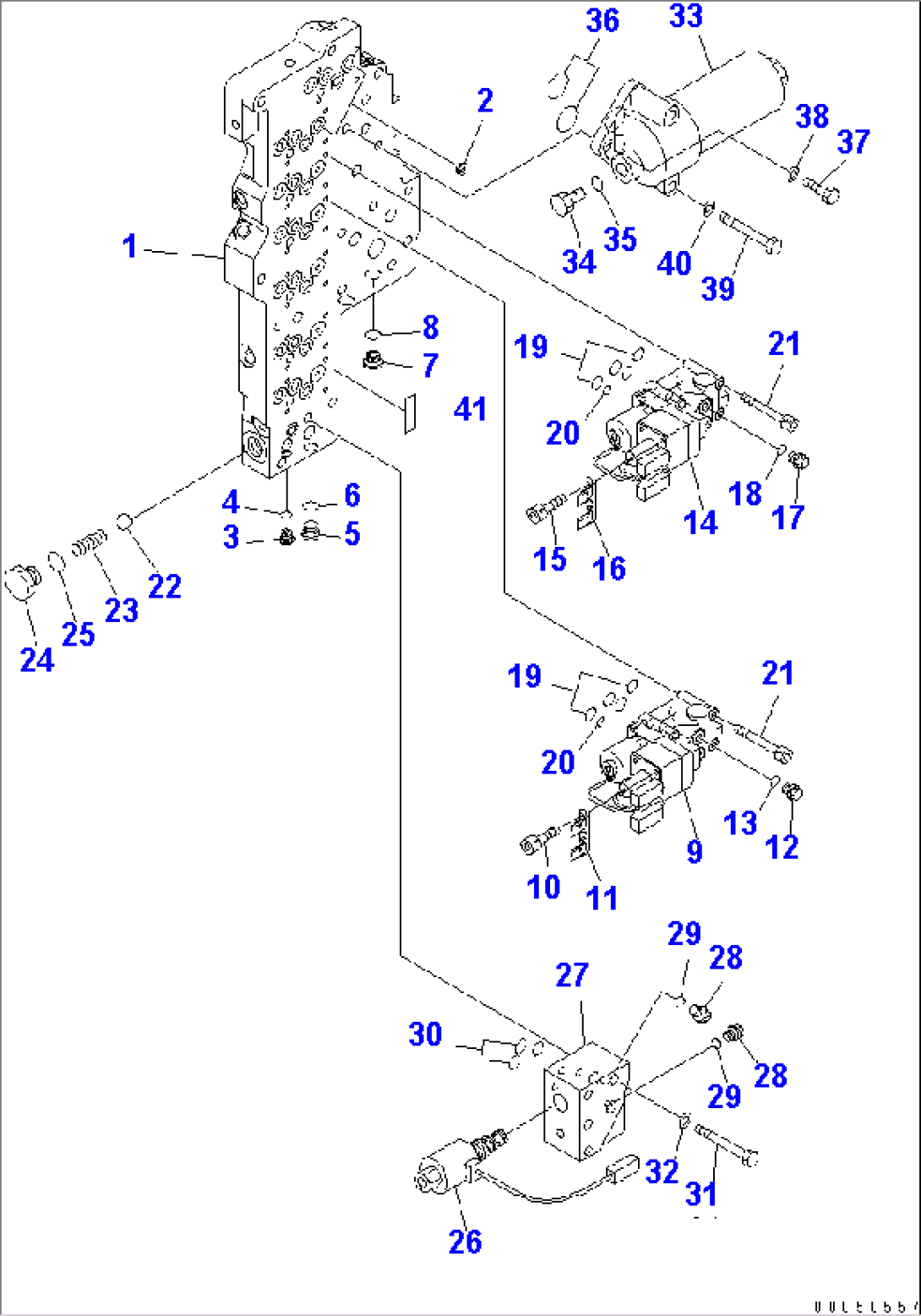

| THESE ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0, 52A1, 53A0 TO 61A0, 58A1, 59A1, 62A1 TO 64A1. | ||||
| 714-07-35012 | VALVE ASS'Y | (100666)-00090000 | ||
| 714-07-35011 | VALVE ASS'Y | 85165-(100665) | ||
| 714-07-35010 | VALVE ASS'Y | 85001-85164 | ||
| 1 | 714-07-35130 | VALVE SEAT | 85001-90000 | |
| 2 | 714-07-35180 | ORIFICE | 85001-90000 | |
| 3 | 723-11-18190 | PLUG | 85001-90000 | |
| 4 | 07002-61023 | O-RING (K2) | 85001-90000 | |
| 5 | 714-24-25190 | PLUG | 85001-90000 | |
| 6 | 07002-61423 | O-RING (K2) | 85001-90000 | |
| 7 | 723-11-15110 | PLUG | 85001-90000 | |
| 8 | 07002-61623 | O-RING (K2) | 85001-90000 | |
| 9 | 714-12-25503 | VALVE ASS'Y,ECMV | 85001-00090000 | |
| 9 | (\2\714-12-25502) | VALVE ASS'Y,ECMV | (85001-(100665)) | |
| 10 | 01252-60510 | BOLT | 85001-90000 | |
| 11 | 714-23-15690 | BRACKET | 85001-90000 | |
| 12 | 708-8E-16150 | PLUG | 85001-90000 | |
| 13 | 07002-61023 | O-RING (K2) | 85001-90000 | |
| 14 | 714-07-35501 | ECMV ASS'Y | (100666)-00090000 | |
| 14 | 714-07-35500 | ECMV ASS'Y | 85001-(100665) | |
| 15 | 01252-60510 | BOLT | 85001-90000 | |
| 16 | 714-23-15690 | BRACKET | 85001-90000 | |
| 17 | 708-8E-16150 | PLUG | 85001-90000 | |
| 18 | 07002-61023 | O-RING (K2) | 85001-90000 | |
| 19 | 07000-72015 | O-RING (K2) | 85001-90000 | |
| 20 | 07000-71007 | O-RING (K2) | 85001-90000 | |
| 21 | 01252-70650 | BOLT | 85001-90000 | |
| 22 | 04260-01270 | BALL | 85001-90000 | |
| 23 | 234-15-15120 | SPRING | 85001-90000 | |
| 24 | 714-10-16890 | PLUG | 85001-90000 | |
| 25 | 07002-62034 | O-RING (K2) | 85001-90000 | |
| 714-07-35201 | SOLENOID VALVE | 85165-90000 | ||
| 714-07-35200 | SOLENOID VALVE | 85001-85164 | ||
| 26 | \6\ | SOLENOID VALVE | 85001-90000 | |
| 27 | 714-07-35241 | BLOCK | 85165-90000 | |
| 27 | 714-07-35240 | BLOCK | 85001-85164 | |
| 28 | 708-8E-16150 | PLUG | 85001-90000 | |
| 29 | 07002-61023 | O-RING (K2) | 85001-90000 | |
| 30 | 07000-72012 | O-RING (K2) | 85001-90000 | |
| 31 | 01010-81080 | BOLT | 85001-90000 | |
| 32 | 01643-31032 | WASHER | 85001-90000 | |
| 33 | 569-15-51720 | FILTER ASS'Y | 85001-90000 | |
| 33 | 569-15-51731 | ELEMENT ASS'Y | 85374-90000 | |
| 33 | \1\569-15-51730 | ELEMENT ASS'Y | 85001-85373 | |
| 33 | 07000-02060 | O-RING (K2) | 85001-90000 | |
| 34 | 07040-11812 | PLUG | 85001-90000 | |
| 35 | 07002-61823 | O-RING (K2) | 85001-90000 | |
| 36 | 07000-73022 | O-RING (K2) | 85001-90000 | |
| 37 | 01010-81030 | BOLT | 85001-90000 | |
| 38 | 01643-31032 | WASHER | 85001-90000 | |
| 39 | 01010-81080 | BOLT | 85001-90000 | |
| 40 | 01643-31032 | WASHER | 85001-90000 | |
| 41 | (\7\700-11-31980) | PLATE, NAME,(LIMITED SUPPLY) | 85001-90000 |
