| Item | Part No. | Part Name | Qty | Serial No. |
| (14X-15-00011) | TRANSMISSION ASS'Y | 3023- | ||
| (14X-15-00010) | TRANSMISSION ASS'Y | 3001-3022 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-01A1 TO F2320-10A1. | ||||
| 14X-15-00312 | CONTROL VALVE ASS'Y | 3025- | ||
| 14X-15-00311 | CONTROL VALVE ASS'Y | 3010-3024 | ||
| 14X-15-00310 | CONTROL VALVE ASS'Y | 3001-3009 | ||

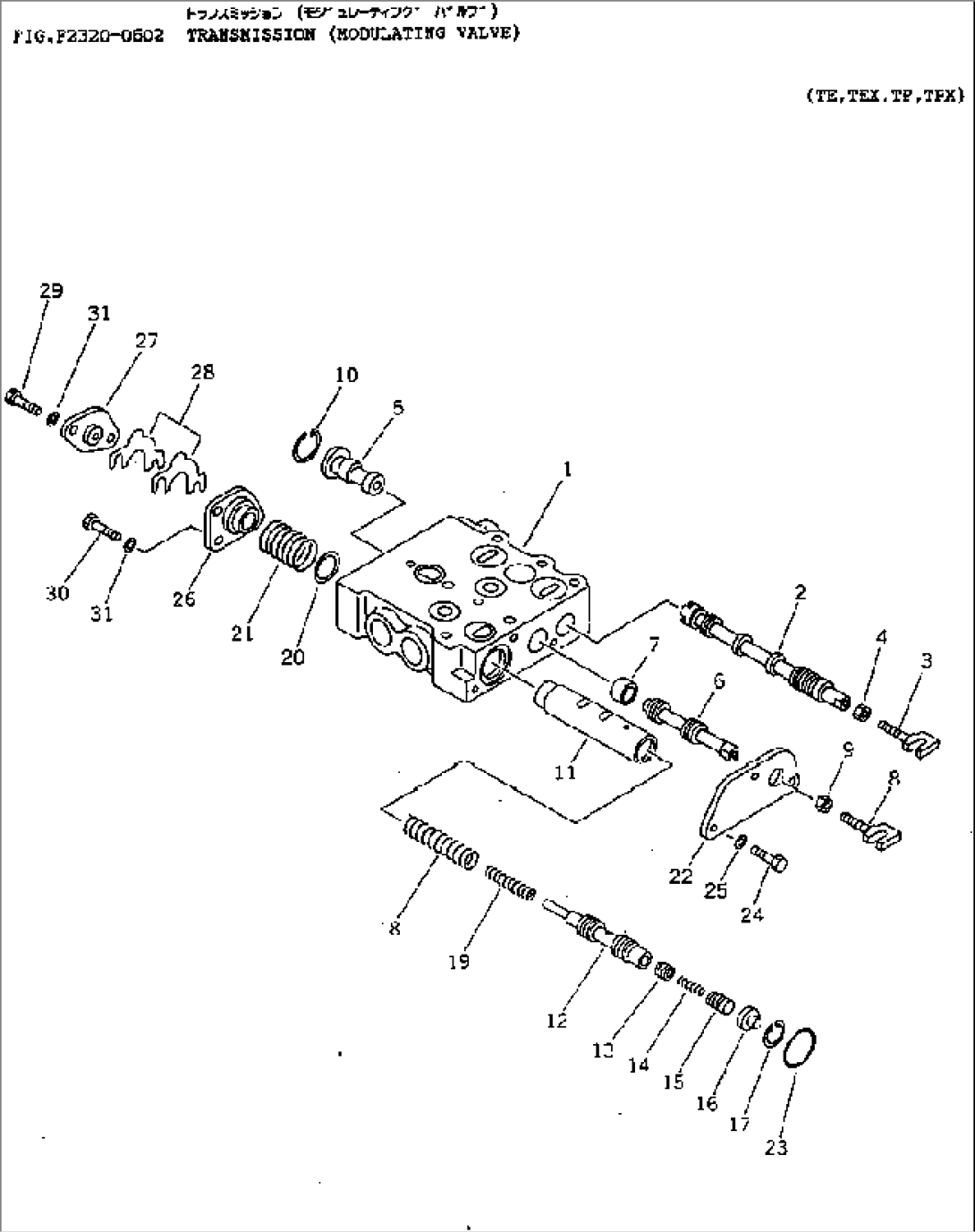

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-06A1 AND F2320-07A1. | ||||
| 1 | 14X-15-15110 | BODY | 3001- | |
| 2 | 134-15-15130 | SPOOL | 3001- | |
| 3 | 09363-00850 | YOKE | 3001- | |
| 4 | 01580-10806 | NUT | 3001- | |
| 5 | 125-15-15141 | STOPPER | 3001- | |
| 6 | 17A-15-25120 | SPOOL | 3001- | |
| 7 | 14X-15-15260 | COLLAR | 3001- | |
| 8 | 09363-00850 | YOKE | 3001- | |
| 9 | 01580-10806 | NUT | 3001- | |
| 10 | 04065-03012 | RING,SNAP | 3001- | |
| 11 | 14X-15-15210 | VALVE | 3001- | |
| 12 | 125-15-15220 | VALVE | 3001- | |
| 13 | 103-15-15460 | VALVE | 3001- | |
| 14 | 125-15-15290 | SPRING | 3001- | |
| 15 | 144-40-21830 | VALVE | 3001- | |
| 16 | 125-15-15230 | STOPPER | 3001- | |
| 17 | 120-09-15110 | RING,SNAP | 3001- | |
| 18 | 14X-15-16220 | SPRING | 3001- | |
| 19 | 14X-15-16260 | SPRING | 3001- | |
| 20 | 125-15-15260 | WASHER | 3001- | |
| 21 | 125-15-15330 | SPRING | 3001- | |
| 22 | 125-15-15390 | COVER | 3001- | |
| 23 | 07000-73038 | O-RING (K4) | 3001- | |
| 24 | 01010-50820 | BOLT | 3001- | |
| 25 | 01643-30823 | WASHER | 3001- | |
| 26 | 134-15-15270 | SPACER | 3001- | |
| 27 | 134-15-15280 | COVER | 3001- | |
| 28 | 125-15-15170 | SHIM, 0.5MM (K4) | 3001- | |
| 29 | 01010-50830 | BOLT | 3001- | |
| 30 | 01010-50820 | BOLT | 3001- | |
| 31 | 01643-30823 | WASHER | 3001- |
