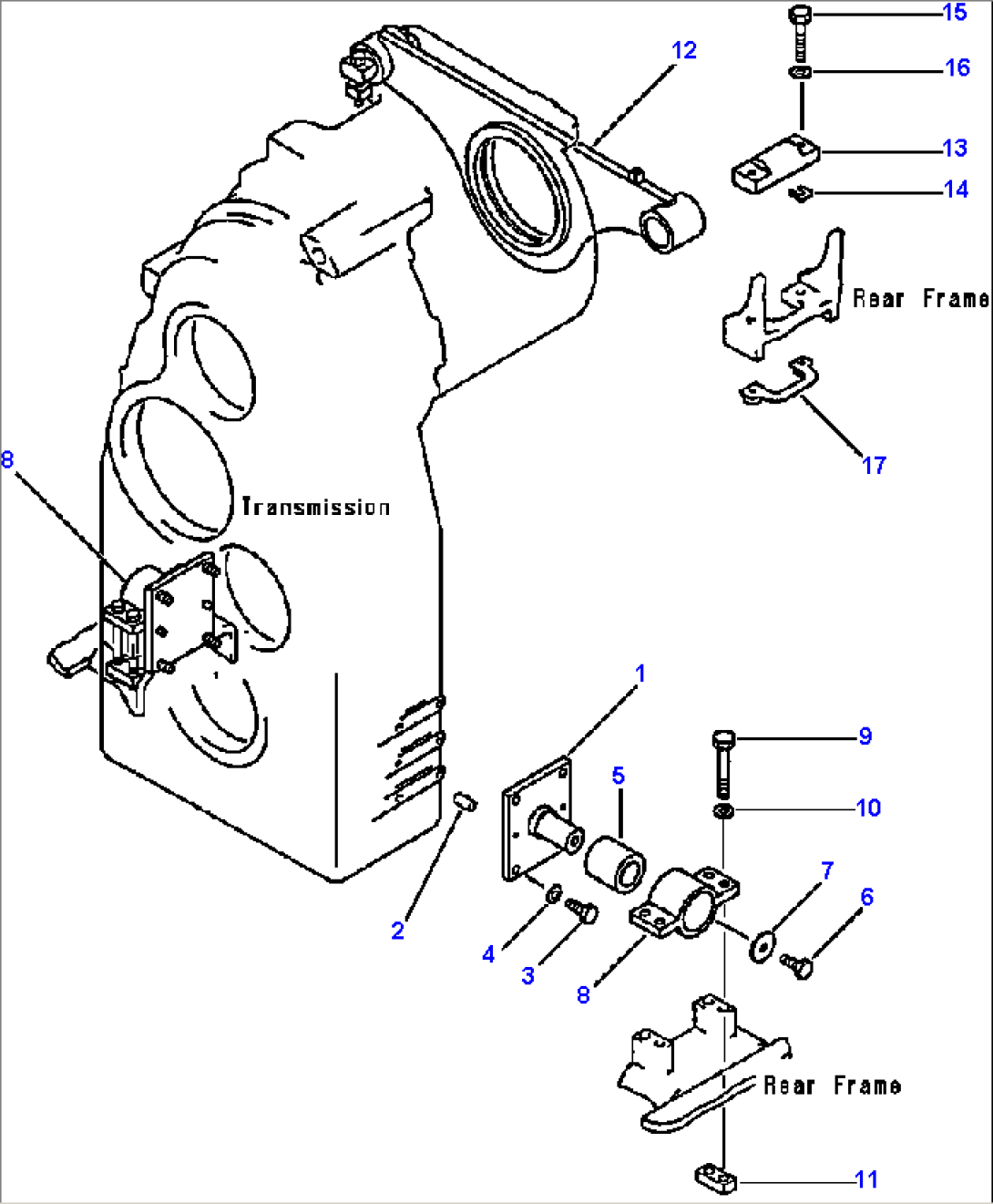

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-14-11120 | PLATE, TRANSFER CASE MOUNT | ||
| 2 | 04020-01228 | PIN, DOWEL | ||
| 3 | 01010-31645 | BOLT, MOUNTING PLATE | ||
| 4 | 01643-31645 | WASHER | ||
| 5 | 566-14-41130 | CUSHION | ||
| 6 | 01010-31625 | BOLT | ||
| 7 | 566-14-41170 | WASHER | ||
| 8 | 566-14-41160 | BRACKET | ||
| 9 | 01011-31620 | BOLT | ||
| 10 | 01643-31645 | WASHER | ||
| 11 | 421-14-11160 | SEAT | ||
| 12 | 426-14-11111 | TRUNNION, TRANSMISSION MOUNT | ||
| 13 | 566-14-51152 | CUSHION | ||
| 14 | 426-14-11130 | SHIM, 0.5mm | ||
| 15 | 01010-31480 | BOLT, CUSHION MOUNTING | ||
| 16 | 01643-31445 | WASHER | ||
| 17 | 421-14-11130 | PLATE |
