| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-14-21110 | BRACKET | 53001- | |
| 2 | 01010-61650 | BOLT | 53001- | |
| 3 | 01643-31645 | WASHER | 53001- | |
| 4 | 232-06-52410 | SENSOR | 53001- | |
| 5 | 08036-11214 | CLIP | 53001- | |
| 6 | 01435-01020 | BOLT | 53001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa300l 3 s/n 53001 up (for north america)
- Transmission
- Transmission mounting bracket
Поиск по каталогу

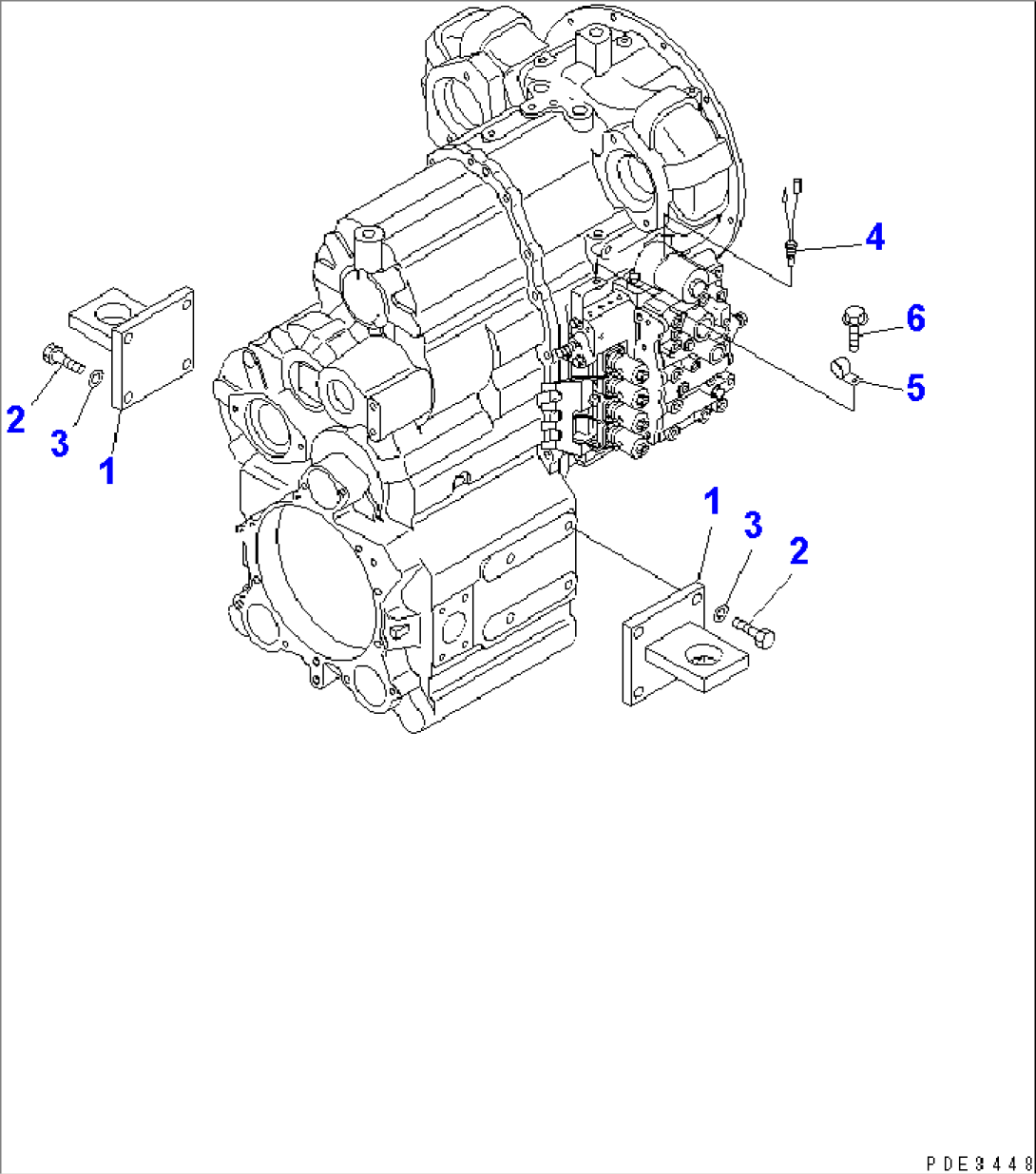

TRANSMISSION MOUNTING BRACKET
