| Item | Part No. | Part Name | Qty | Serial No. |
| 21 | BW034752 | BRACKET | 311006- | |
| 22 | BW060481 | BOLT | 311006- | |
| 23 | BW063040 | NUT | 311006- | |
| 24 | BW034750 | SUPPORT | 311006- | |
| 25 | BW022706 | BRACKET | 311006- | |
| 26 | BW053262 | BOLT | 311006- | |
| 27 | BW053265 | NUT | 311006- | |
| 28 | BW063395 | WASHER | 311006- |
- Главная
- Каталог запчастей
- Самосвалы
- Ha270 1 s/n 65226 up
- Torque converter and transmission
- Transmission mounting bracket¤ front (t/m no.4644 026 063)(#311006 )
Поиск по каталогу

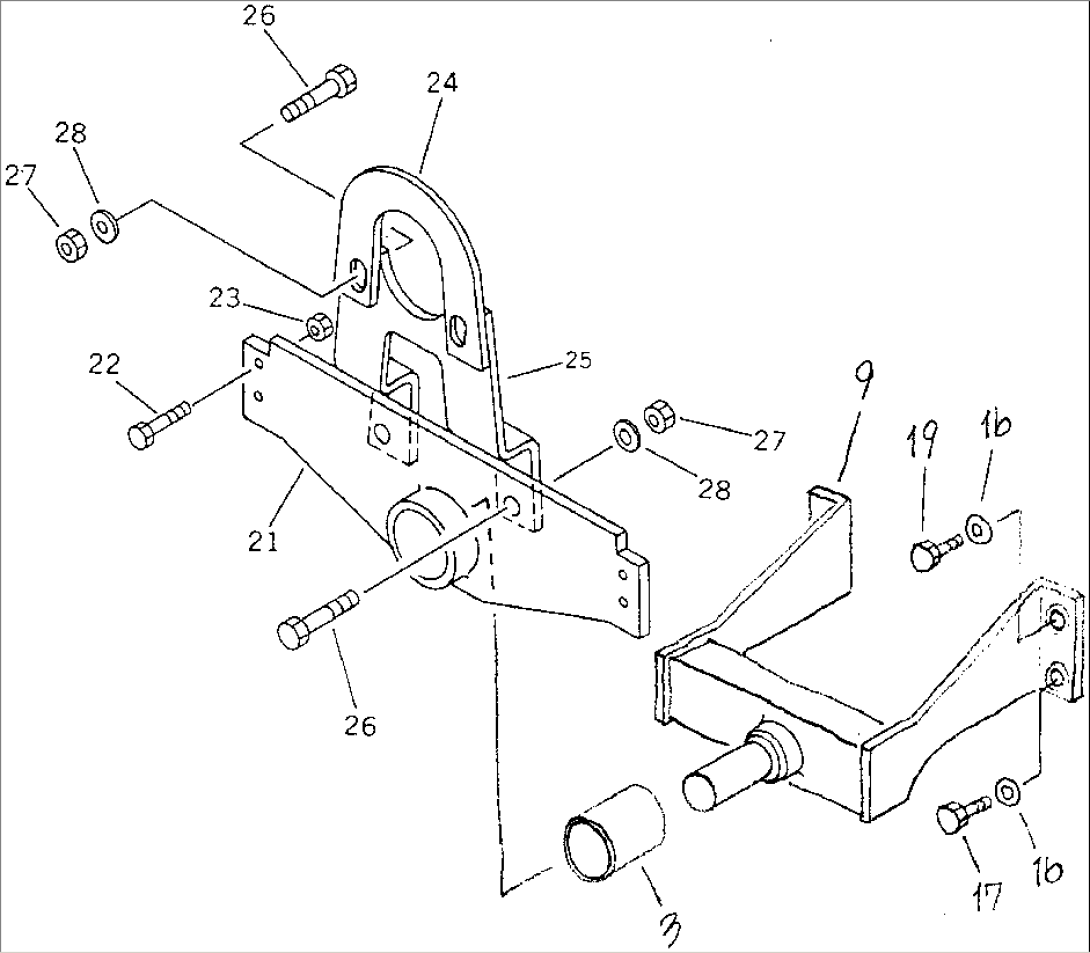

TRANSMISSION MOUNTING BRACKET¤ FRONT (T/M NO.4644 026 063)(#311006-)
