| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (561-15-00503) | TRANSMISSION ASS'Y | (1850)- | ||
| (561-15-00502) | TRANSMISSION ASS'Y | (1322)-(1849) | ||
| (561-15-00501) | TRANSMISSION ASS'Y | (1191)-(1321) | ||
| (561-15-00500) | TRANSMISSION ASS'Y | 1501-(1190) | ||

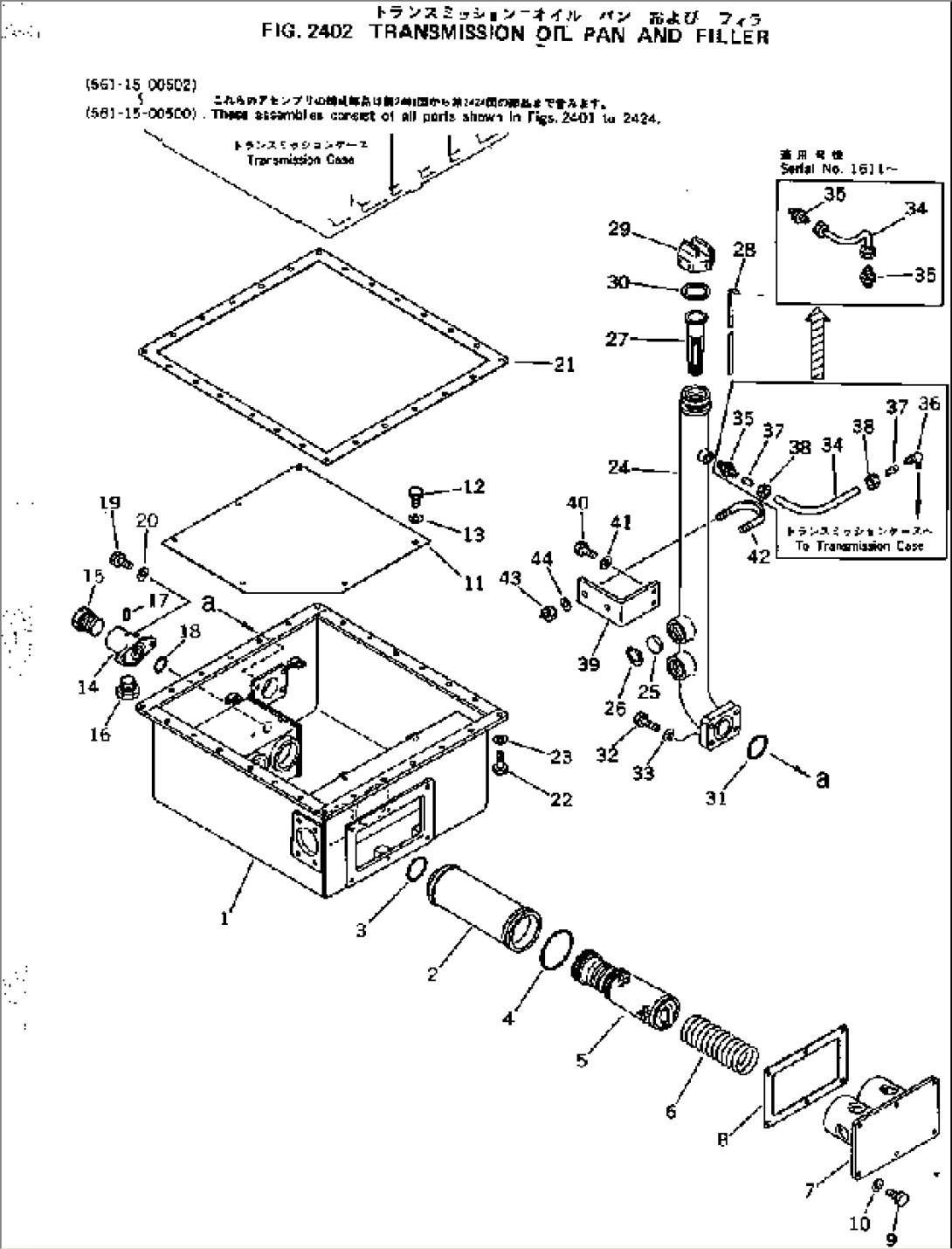

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2424. | ||||
| 1 | 561-15-41550 | PAN,OIL | 1501- | |
| 2 | 562-15-11580 | CASE | 1501- | |
| 3 | 07000-02055 | O-RING (KIT) | 1501- | |
| 4 | 07000-02090 | O-RING (KIT) | 1501- | |
| 5 | 562-15-11570 | MAGNET ASS'Y | (1868)- | |
| 425-15-11710 | MAGNET ASS'Y | 1501-(1867) | ||
| 6 | 568-15-11570 | SPRING | 1501- | |
| 7 | 561-15-31560 | COVER | 1501- | |
| 8 | 568-15-11440 | GASKET (KIT) | 1501- | |
| 9 | 01010-51022 | BOLT | 1501- | |
| 10 | 01643-31032 | WASHER | 1501- | |
| 11 | 561-15-41560 | PLATE | 1501- | |
| 12 | 01010-51020 | BOLT | 1501- | |
| 13 | 01643-31032 | WASHER | 1501- | |
| 6127-21-5601 | VALVE ASS'Y | 1501- | ||
| 14 | 6127-21-5611 | BODY | 1501- | |
| 15 | 6127-21-5620 | VALVE | 1501- | |
| 16 | 6127-21-5630 | PLUG | 1501- | |
| 17 | 04020-00514 | PIN,DOWEL | 1501- | |
| 18 | 07000-73035 | O-RING (KIT) | 1501- | |
| 19 | 01010-51025 | BOLT | 1501- | |
| 20 | 01643-31032 | WASHER | 1501- | |
| 21 | 561-15-41430 | GASKET (KIT) | 1501- | |
| 22 | 01010-51030 | BOLT | 1501- | |
| 23 | 01643-31032 | WASHER | 1501- | |
| 24 | 561-15-41640 | FILLER | 1501- | |
| 25 | 07035-04010 | GAUGE | 1501- | |
| 26 | 04065-04018 | RING,SNAP | 1501- | |
| 27 | 07056-10045 | STRAINER | 1501- | |
| 28 | 561-15-11630 | GAUGE | 1501- | |
| 29 | 07051-00000 | CAP | 1501- | |
| 30 | 07051-00003 | GASKET | 1501- | |
| 31 | 07000-02060 | O-RING (KIT) | 1501- | |
| 32 | 01010-51235 | BOLT | 1501- | |
| 33 | 01602-21236 | WASHER,SPRING | 1501- | |
| 34 | 561-15-41650 | TUBE | 1611- | |
| \3\07822-00602 | TUBE | 1501-1610 | ||
| (561-15-41650{07213-50813(2))} | ||||
| 35 | 07213-50813 | CONNECTOR | 1611- | |
| \3\07836-00613 | CONNECTOR | 1501-1610 | ||
| (07213-50813(2){561-15-41650)} | ||||
| 36 | 07834-00613 | ELBOW | 1501-1610 | |
| 37 | 07831-00612 | SLEEVE | 1501-1610 | |
| 38 | 07832-00614 | NUT,SLEEVE | 1501-1610 | |
| 39 | 561-15-41620 | BRACKET | 1501- | |
| 40 | 01010-51025 | BOLT | 1501- | |
| 41 | 01643-31032 | WASHER | 1501- | |
| 42 | 07283-26155 | CLIP | 1501- | |
| 43 | 01599-01011 | NUT | 1501- | |
| 44 | 01643-31032 | WASHER | 1501- |
