| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (567-15-41001) | TRANSMISSION ASS'Y | 1001-1060 | ||
| 567-15-41501 | TANK ASS'Y | (5102)-00001060 | ||
| 1 | 567-15-41551 | TANK | (4710)-00001060 | |

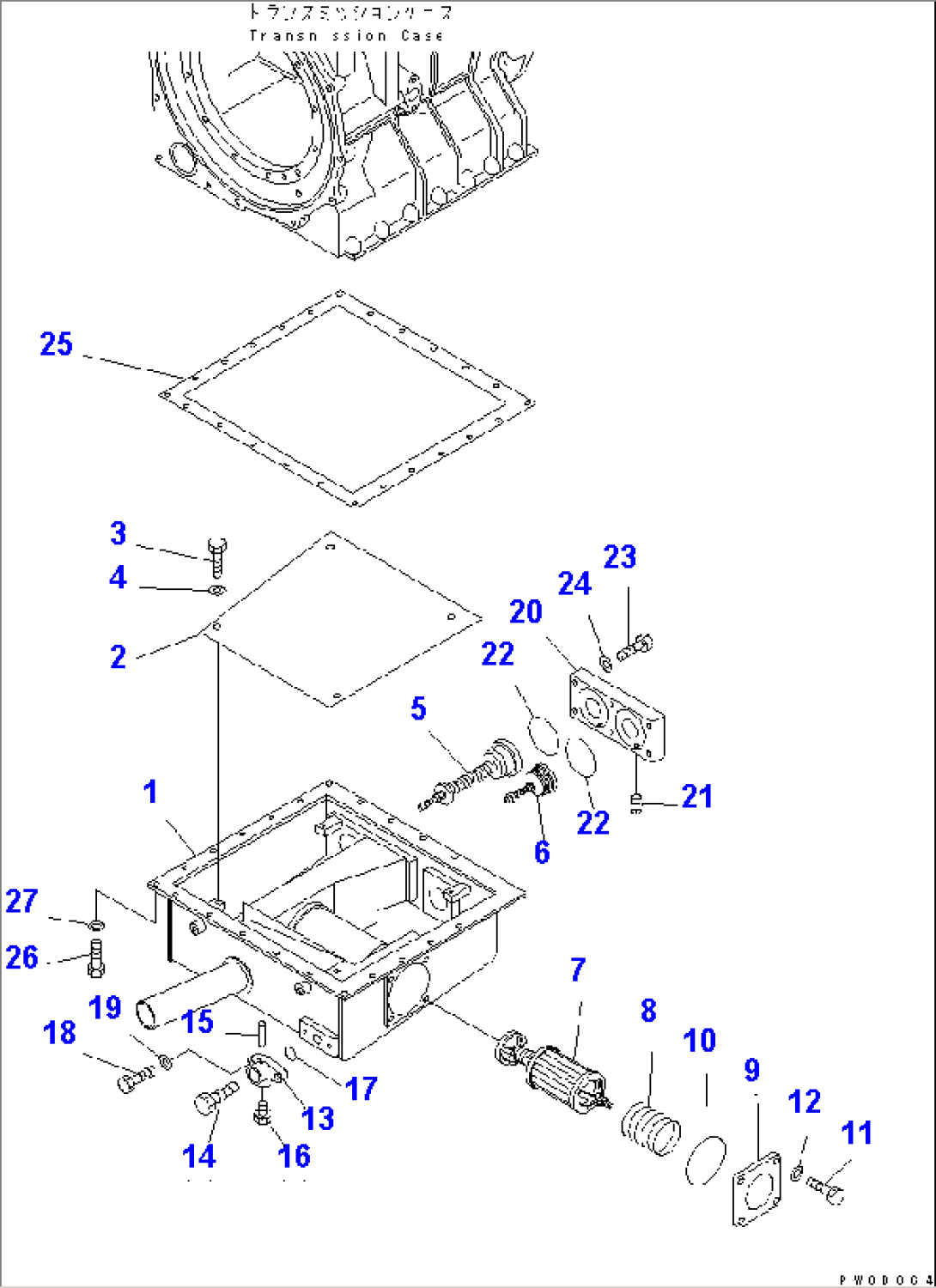

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3320-51A0 TO F3320-62A0. | ||||
| 2 | 567-15-41581 | BUFFLE | (4710)-00001060 | |
| 3 | 01010-81020 | BOLT | (4710)-@ | |
| 4 | 01643-31032 | WASHER | (4710)-@ | |
| 5 | 566-60-41401 | VALVE ASS'Y | (4710)-@ | |
| 6 | 566-60-41300 | VALVE ASS'Y | (5102)-@ | |
| 7 | 14X-49-12310 | MAGNET ASS'Y | (5102)-00001060 | |
| 8 | 14X-49-12320 | SPRING | (5102)-00001060 | |
| 9 | 14X-49-12340 | COVER | (5102)-00001060 | |
| 10 | 07000-72105 | O-RING (K2) | (5102)-00001060 | |
| 11 | 01010-81025 | BOLT | (5102)-00001060 | |
| 12 | 01643-31032 | WASHER | (5102)-00001060 | |
| 6693-22-5600 | VALVE ASS'Y | (5102)-@ | ||
| 13 | 6693-22-5610 | BODY | (5102)-@ | |
| 14 | 6693-22-5620 | VALVE | (5102)-@ | |
| 15 | 04020-00514 | PIN | (5102)-@ | |
| 16 | 07040-12412 | PLUG | (5102)-@ | |
| 17 | 07000-73028 | O-RING (K2) | (5102)-@ | |
| 18 | 01010-81025 | BOLT | (5102)-@ | |
| 19 | 01643-31032 | WASHER | (5102)-@ | |
| 20 | 566-60-41130 | BLOCK | (5102)-@ | |
| 21 | 07042-80108 | PLUG | (5102)-@ | |
| 22 | 07000-72085 | O-RING (K2) | (5102)-@ | |
| 23 | 01010-81250 | BOLT | (5102)-@ | |
| 24 | 01643-31232 | WASHER | (5102)-@ | |
| 25 | 567-15-41530 | GASKET (K2) | 1001-@ | |
| 26 | 01010-81030 | BOLT | 1001-@ | |
| 27 | 01643-31032 | WASHER | 1001-@ |
