| Item | Part No. | Part Name | Qty | Serial No. |

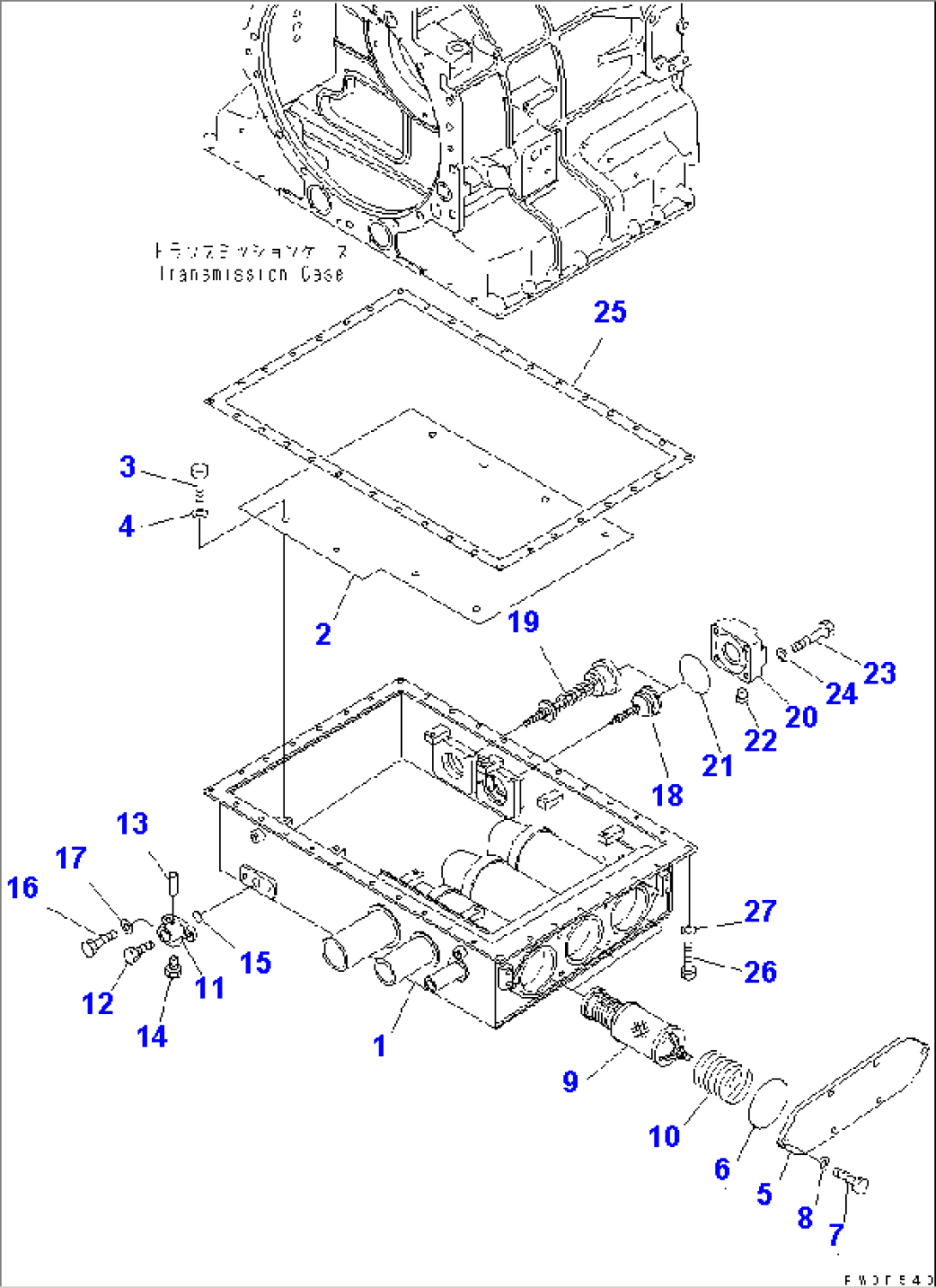

| (569-15-51000) | TRANSMISSION ASS'Y | 7001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3320-51A0 TO F3320-62A0. | ||||
| 569-15-51503 | TANK ASS'Y | 7113- | ||
| \0\569-15-51502 | TANK ASS'Y | 7001-7112 | ||
| 1 | 569-15-51552 | TANK | 7001- | |
| 2 | 569-15-51581 | BUFFLE | 7001- | |
| 3 | 01010-81020 | BOLT | 7001- | |
| 4 | 01643-31032 | WASHER | 7001- | |
| 5 | 569-15-51590 | COVER | 7001- | |
| 6 | 07000-72105 | O-RING (K2) | 7001- | |
| 7 | 01010-81025 | BOLT | 7001- | |
| 8 | 01643-31032 | WASHER | 7001- | |
| 9 | 569-15-51510 | MAGNET ASS'Y | 7113- | |
| 14X-49-12310 | MAGNET ASS'Y | 7001-7112 | ||
| 10 | 14X-49-12320 | SPRING | 7001- | |
| 6693-22-5600 | VALVE ASS'Y | 7001- | ||
| 11 | 6693-22-5610 | BODY,BODY | 7001- | |
| 12 | 6693-22-5620 | VALVE | 7001- | |
| 13 | 04020-00514 | PIN,DOWEL | 7001- | |
| 14 | 07040-12412 | PLUG | 7001- | |
| 15 | 07000-73028 | O-RING (K2) | 7001- | |
| 16 | 01010-81025 | BOLT | 7001- | |
| 17 | 01643-31032 | WASHER | 7001- | |
| 18 | 566-60-41300 | VALVE ASS'Y | 7001- | |
| 19 | 566-60-41401 | VALVE ASS'Y | 7001- | |
| 20 | 566-15-41560 | BLOCK | 7001- | |
| 21 | 07000-72085 | O-RING (K2) | 7001- | |
| 22 | 07043-A0108 | PLUG | 7001- | |
| 23 | 01010-81250 | BOLT | 7001- | |
| 24 | 01643-31232 | WASHER | 7001- | |
| 25 | 569-15-51430 | GASKET (K2) | 7001- | |
| 26 | 01010-81030 | BOLT | 7001- | |
| 27 | 01643-31032 | WASHER | 7001- |
