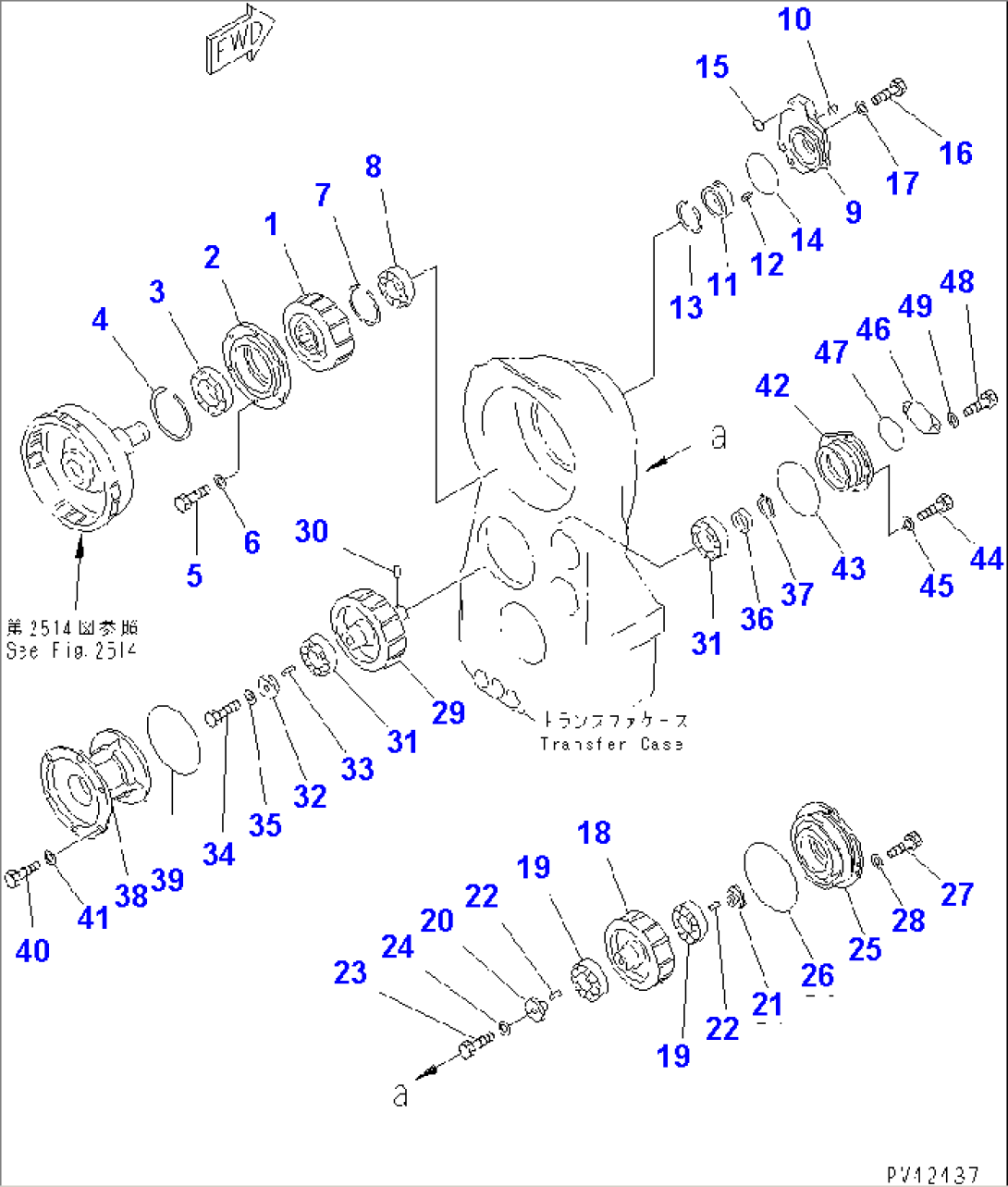

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| (427-15-01001) | TORQFLOW ASS'Y | (1045)-(1100) | ||
| (\0\427-15-01000) | TORQFLOW ASS'Y | 10001-(1044) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2301 TO 2524. | ||||
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (427-15-00013) | TRANSMISSION ASS'Y | (1144)- | ||
| (\0\427-15-00012) | TRANSMISSION ASS'Y | (1101)-(1143) | ||
| (427-15-00011) | TRANSMISSION ASS'Y | 10001-(1100) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2524. | ||||
| 1 | 427-15-13210 | GEAR | 10001- | |
| 2 | 427-15-13130 | CAGE | 10001- | |
| 3 | 06032-00224 | BEARING | 10001- | |
| 4 | 130-09-15550 | RING,SNAP | 10001- | |
| 5 | 01010-81240 | BOLT | 10001- | |
| 6 | 01643-31232 | WASHER | 10001- | |
| 7 | 04071-00180 | RING,SNAP | 10001- | |
| 8 | 427-15-19460 | BEARING | 10001- | |
| 427-15-00160 | COVER ASS'Y | 10001- | ||
| 9 | \6\ | COVER | 10001- | |
| 10 | 145-14-11320 | PLUG | 10001- | |
| 11 | 427-15-13350 | BUSHING | 10001- | |
| 12 | 04025-00620 | PIN,SPRING | 10001- | |
| 13 | 04077-00140 | RING,SNAP | 10001- | |
| 14 | 07000-05170 | O-RING (K3) | 10001- | |
| 15 | 07000-73035 | O-RING (K3) | 10001- | |
| 16 | 01010-81240 | BOLT | 10001- | |
| 17 | 01643-31232 | WASHER | 10001- | |
| 18 | 427-15-13720 | GEAR | (1144)- | |
| 427-15-13221 | GEAR | 10001-(1143) | ||
| 19 | 140-09-13131 | BEARING | 10001- | |
| 20 | 427-15-13541 | HOLDER | 10001-(1143) | |
| 21 | 427-15-13450 | HOLDER | 10001-(1143) | |
| 22 | 04020-01024 | PIN,DOWEL | 10001-(1143) | |
| 23 | 427-15-13490 | BOLT | 10001-(1143) | |
| 24 | 01643-32460 | WASHER | 10001-(1143) | |
| 25 | 427-15-13150 | CASE | 10001- | |
| 26 | 07000-05310 | O-RING (K3) | 10001- | |
| 27 | 01010-81240 | BOLT | 10001- | |
| 28 | 01643-31232 | WASHER | 10001- | |
| 29 | 427-15-13730 | GEAR | (1144)- | |
| 427-15-13232 | GEAR | 10001-(1143) | ||
| 30 | 04020-00616 | PIN,DOWEL | 10001-(1143) | |
| 31 | 140-09-13131 | BEARING | 10001- | |
| 32 | 427-15-13541 | HOLDER | 10001-(1143) | |
| 33 | 04020-01024 | PIN,DOWEL | 10001-(1143) | |
| 34 | 01051-32450 | BOLT | 10001-(1143) | |
| 35 | 01643-32460 | WASHER | 10001-(1143) | |
| 36 | 427-15-13610 | COLLAR | 10001-(1143) | |
| 37 | 04064-07025 | RING,SNAP | 10001-(1143) | |
| 38 | 427-15-13170 | CAGE | 10001- | |
| 39 | 07000-05320 | O-RING (K3) | 10001- | |
| 40 | 01010-81240 | BOLT | 10001- | |
| 41 | 01643-31232 | WASHER | 10001- | |
| 42 | 427-15-13160 | CAGE | 10001- | |
| 43 | 07000-05210 | O-RING (K3) | 10001- | |
| 44 | 01010-81240 | BOLT | 10001- | |
| 45 | 01643-31232 | WASHER | 10001- | |
| 46 | 425-15-13190 | PLATE | 10001- | |
| 47 | 07000-02135 | O-RING (K3) | 10001- | |
| 48 | 01010-51635 | BOLT | 10001- | |
| 49 | 01643-31645 | WASHER | 10001- |
