| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (714-13-10001) | TORQFLOW ASS'Y | (77880)- | ||
| (714-13-10000) | TORQFLOW ASS'Y | 53001-(77879) | ||

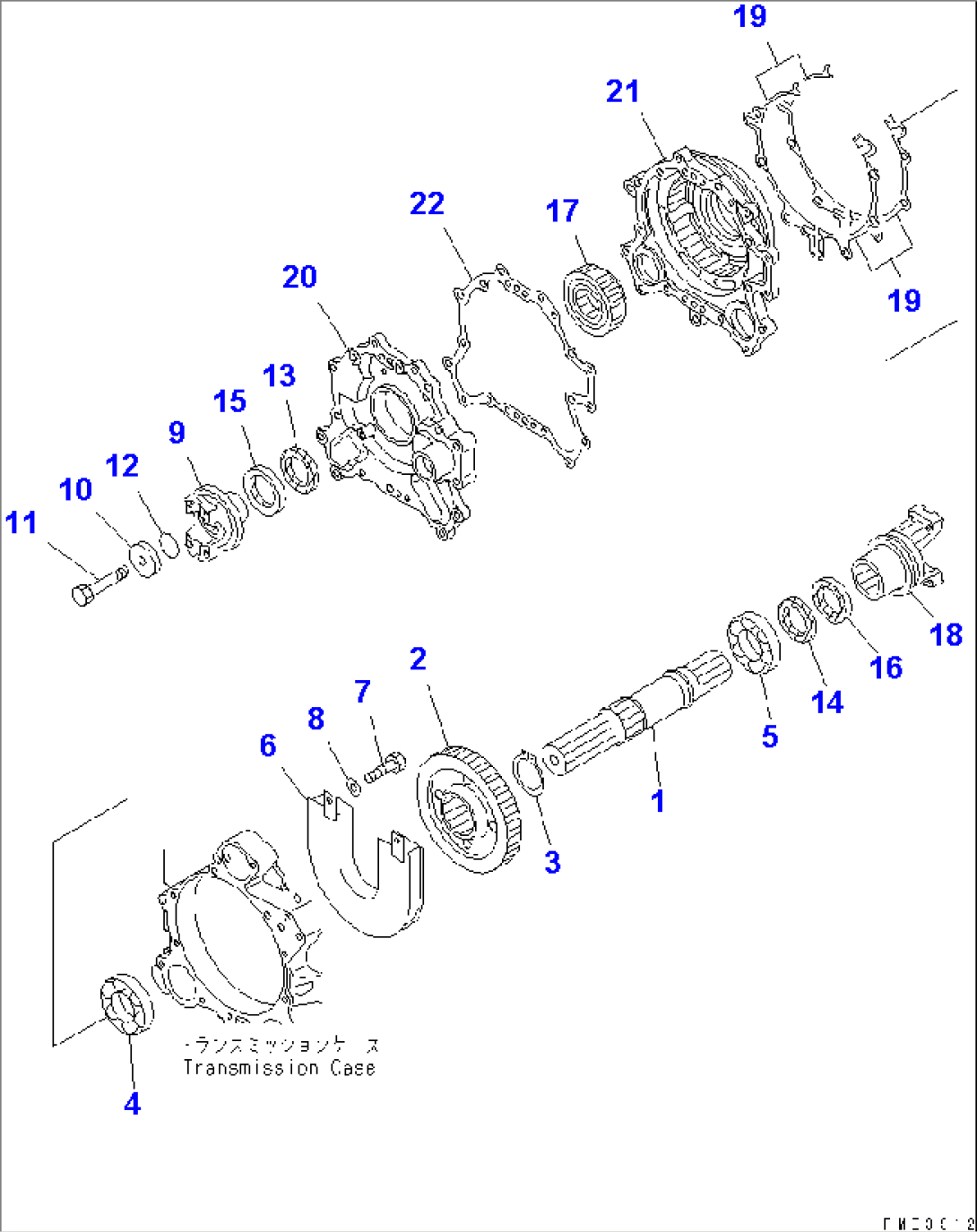

| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-69A0. | ||||
| 1 | 714-13-14520 | SHAFT,OUTPUT | 53001- | |
| 2 | 714-13-14620 | GEAR, 37 TEETH,OUTPUT | 53001- | |
| 3 | 04064-07025 | RING,SNAP | 53001- | |
| 4 | 06002-30212 | BEARING | 53001- | |
| 5 | 06002-32013 | BEARING | 53001- | |
| 6 | 419-15-13711 | COVER,GEAR | 53001- | |
| 7 | 01010-81225 | BOLT | 53001- | |
| 8 | 01643-31232 | WASHER | 53001- | |
| 9 | 714-13-14110 | COUPLING,FRONT | 53001- | |
| 9 | 714-13-14320 | DEFLECTOR | 53001- | |
| 10 | 423-22-11240 | HOLDER | 53001- | |
| 11 | 01011-61610 | BOLT | 53001- | |
| 12 | 07000-32055 | O-RING (K1) | 53001- | |
| 13 | 419-15-13650 | SEAL,OIL (K1) | 53001- | |
| 14 | 419-15-13650 | SEAL,OIL (K1) | 53001- | |
| 15 | 419-15-13660 | SEAL,DUST (K1) | 53001- | |
| 16 | 419-15-13660 | SEAL,DUST (K1) | 53001- | |
| 17 | 714-13-18610 | HUB,SPLINE | 53001- | |
| 18 | 714-13-14121 | COUPLING,REAR | 54116- | |
| 18 | 714-13-14120 | COUPLING,REAR | 53001-54115 | |
| 18 | 714-11-14320 | DEFLECTOR | 53001- | |
| 19 | 714-13-14271 | SHIM, 0.05MM | 53001- | |
| 19 | 714-13-14291 | SHIM, 0.20MM | 53001- | |
| 19 | 714-13-14280 | SHIM, 0.50MM | 53001- | |
| 19 | 714-13-14370 | SHIM, 0.05MM | 53001- | |
| 19 | 714-13-14390 | SHIM, 0.20MM | 53001- | |
| 19 | 714-13-14380 | SHIM, 0.50MM | 53001- | |
| 20 | 714-13-18311 | COVER | 53001- | |
| 21 | 714-13-18321 | RETAINER | 53001- | |
| 22 | 714-13-18691 | GASKET (K1) | 53001- |
