| Item | Part No. | Part Name | Qty | Serial No. |
| (415-15-11001) | TRANSMISSION ASS'Y | 10001-11999 | ||

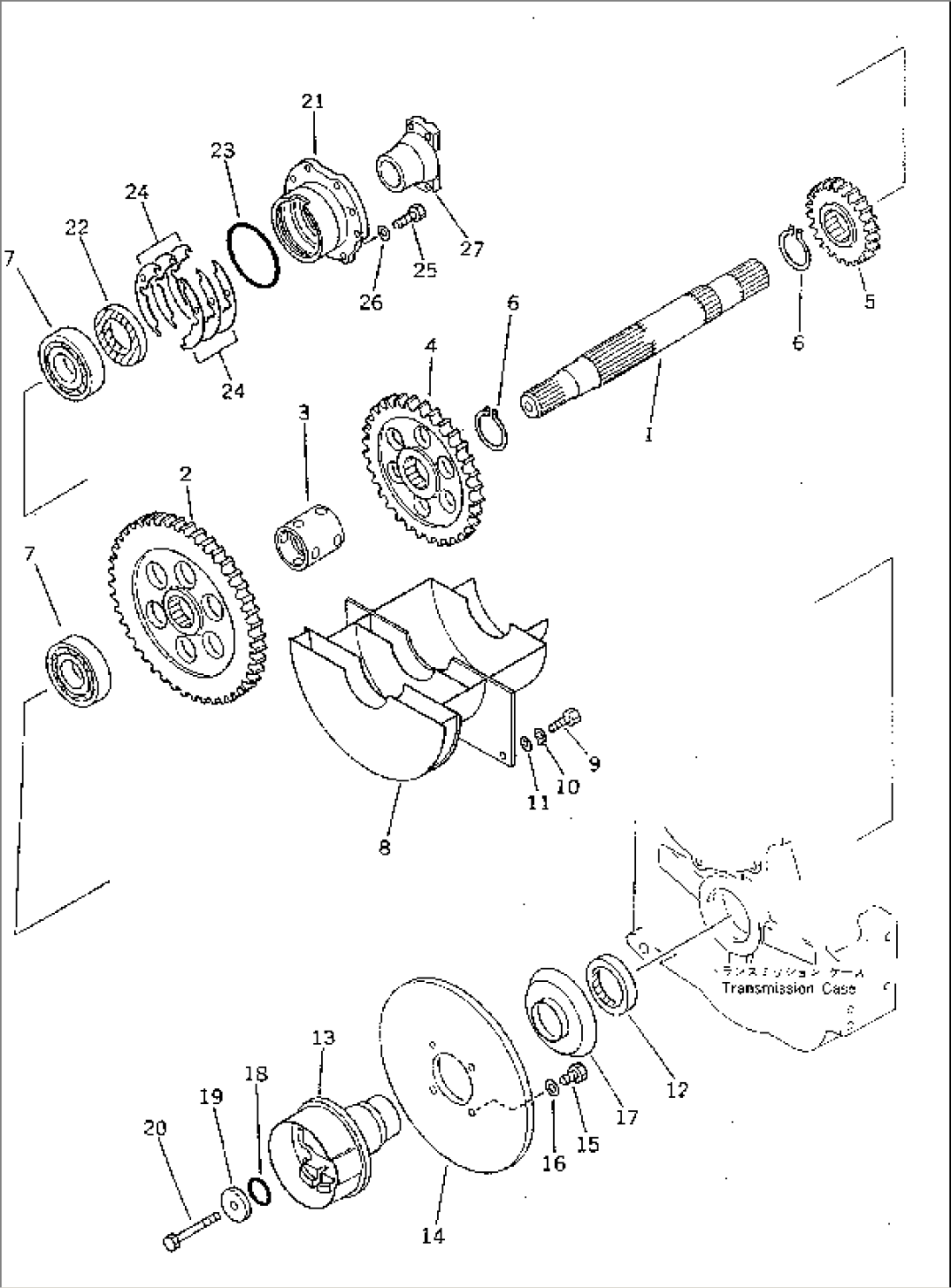

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2111 TO 2142. | ||||
| 1 | 415-15-13510 | SHAFT,OUTPUT | 10001-11999 | |
| 2 | 415-15-13851 | GEAR, 61 TEETH | 12001-@ | |
| 2 | \0\415-15-13850 | GEAR | 10001-11999 | |
| 3 | 415-15-13912 | COLLAR | 10001-11999 | |
| 4 | 415-15-13831 | GEAR, 48 TEETH | 12001-@ | |
| 4 | \0\415-15-13830 | GEAR | 10001-11999 | |
| 5 | 415-15-13810 | GEAR, 27 TEETH | 10001-@ | |
| 6 | 04064-05020 | RING,SNAP | 10001-11999 | |
| 7 | 06030-06308 | BEARING | 10001-@ | |
| 8 | 415-15-13952 | SHROUD | 10001-@ | |
| 9 | 01010-31025 | BOLT | 10001-@ | |
| 10 | 01650-21012 | WASHER | 10001-11999 | |
| 11 | 01643-31032 | WASHER | 10001-@ | |
| 12 | 415-15-13561 | SEAL,OIL (K1) | .-@ | |
| 12 | \0\415-15-13560 | SEAL,OIL (K1) | 10001-. | |
| 415-15-13611 | COUPLING ASS'Y | 10001-11999 | ||
| 13 | 415-15-13650 | COUPLING | 10001-11999 | |
| 14 | 415-15-13671 | DISC | 10001-@ | |
| 15 | 01010-31230 | BOLT | 10001-@ | |
| 16 | 01643-31232 | WASHER | 10001-@ | |
| 17 | 415-15-13630 | PROTECTOR | 10001-@ | |
| 18 | 07000-03032 | O-RING (K1) | 10001-@ | |
| 19 | 415-22-11240 | HOLDER | 10001-@ | |
| 20 | 01010-31275 | BOLT | 10001-@ | |
| 21 | 415-15-13551 | COVER | 10001-11999 | |
| 22 | 415-15-13561 | SEAL,OIL (K1) | .-@ | |
| 22 | \0\415-15-13560 | SEAL,OIL (K1) | 10001-. | |
| 23 | 07000-02085 | O-RING (K1) | 10001-11999 | |
| 24 | 415-15-13570 | SHIM, 0.2MM | 10001-11999 | |
| 24 | 415-15-13580 | SHIM, 0.3MM | 10001-11999 | |
| 24 | 415-15-13590 | SHIM, 1.0MM | 10001-11999 | |
| 25 | 01010-31030 | BOLT | 10001-11999 | |
| 26 | 01643-31032 | WASHER | 10001-11999 | |
| 27 | 415-15-13710 | COUPLING | 10001-11999 |
