| Item | Part No. | Part Name | Qty | Serial No. |

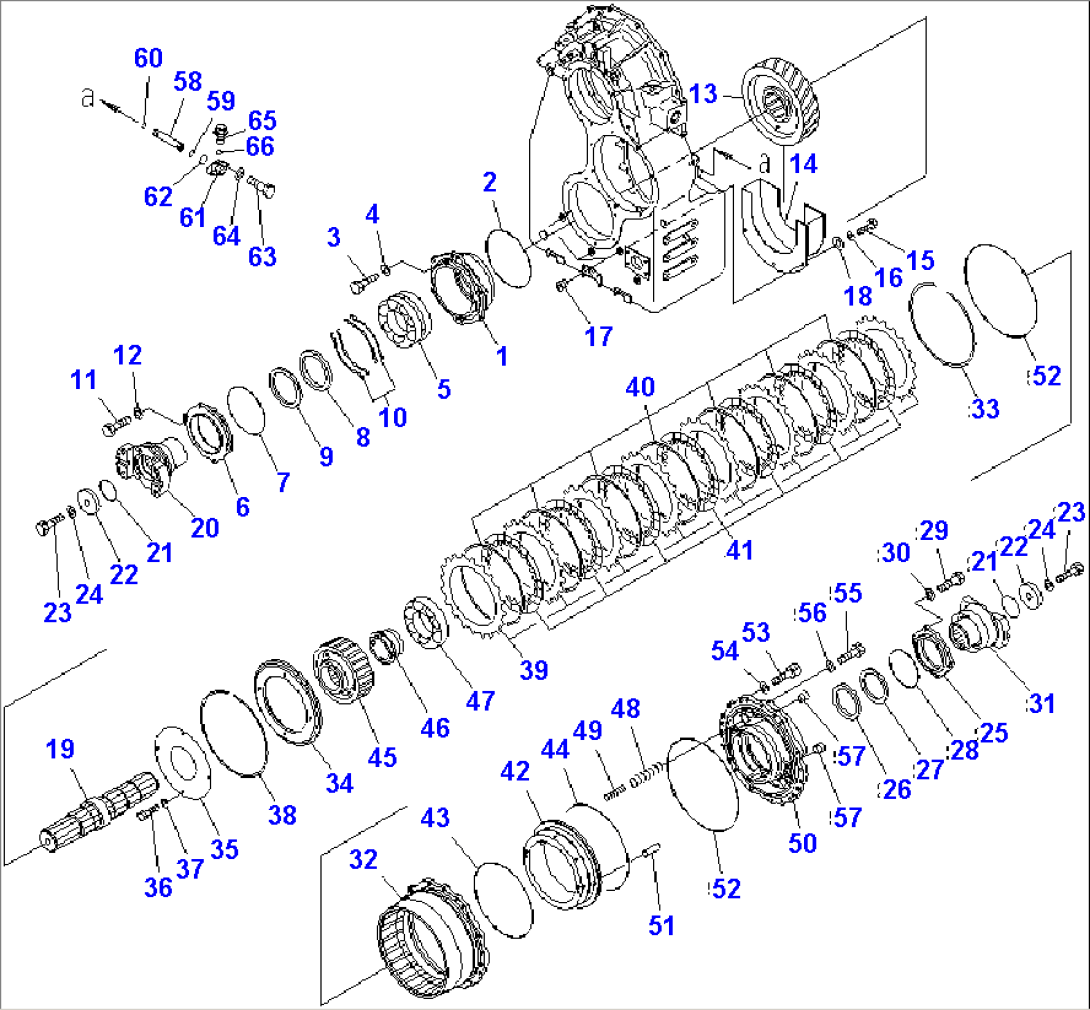

| (426-15-41002) | TRANSMISSION ASS'Y | 55001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-61A0. | ||||
| 1 | 426-15-43171 | CAGE | 55001- | |
| 2 | 07000-75220 | O-RING (K2) | 55001- | |
| 3 | 01010-81235 | BOLT | 55001- | |
| 4 | 01643-31232 | WASHER | 55001- | |
| 5 | 426-15-43340 | BEARING | 55001- | |
| 6 | 426-15-43160 | COVER | 55001- | |
| 7 | 07000-75180 | O-RING (K2) | 55001- | |
| 8 | 07012-50125 | OIL SEAL,OIL (K2) | 55001- | |
| 9 | 772-19-14280 | SEAL,DUST (K2) | 55001- | |
| 10 | 426-15-00480 | SHIM ASS'Y (K2) | 55001- | |
| 10 | 426-15-43571 | SHIM, 0.15MM | 55001- | |
| 10 | 426-15-43580 | SHIM, 0.2MM | 55001- | |
| 10 | 426-15-43590 | SHIM, 0.5MM | 55001- | |
| 11 | 01010-81030 | BOLT | 55001- | |
| 12 | 01643-31032 | WASHER | 55001- | |
| 13 | 426-15-43231 | GEAR | 55001- | |
| 14 | 426-15-43142 | BAFFLE | 55001- | |
| 15 | 01010-81030 | BOLT | 55001- | |
| 16 | 01643-31032 | WASHER | 55001- | |
| 17 | 07043-70211 | PLUG | 55001- | |
| 18 | 203-54-56970 | WASHER | 55001- | |
| 19 | 426-15-43322 | SHAFT | 55001- | |
| 20 | 426-15-43282 | COUPLING | 55001- | |
| 21 | 07000-75075 | O-RING (K2) | 55001- | |
| 22 | 426-15-13260 | HOLDER | 55001- | |
| 23 | 01051-52420 | BOLT | 55001- | |
| 24 | 01643-32460 | WASHER | 55001- | |
| 25 | 426-15-43181 | COVER | 55001- | |
| 26 | 07012-50105 | SEAL,OIL (K2) | 55001- | |
| 27 | 714-07-18541 | SEAL,DUST (K2) | 55001- | |
| 28 | 07000-75155 | O-RING (K2) | 55001- | |
| 29 | 01010-81030 | BOLT | 55001- | |
| 30 | 01643-31032 | WASHER | 55001- | |
| 31 | 426-15-43261 | COUPLING | 55001- | |
| 32 | 426-15-48321 | DRUM | 55001- | |
| 33 | 195-15-13380 | RING,SNAP | 55001- | |
| 34 | 426-15-43370 | PLATE | 55001- | |
| 35 | 426-15-43390 | PLATE | 55001- | |
| 36 | 01010-81020 | BOLT | 55001- | |
| 37 | 01643-31032 | WASHER | 55001- | |
| 38 | 42C-13-17270 | RING,SNAP | 55001- | |
| 39 | 42C-32-12680 | PLATE | 55001- | |
| 40 | 42C-32-18720 | SPRING | 55001- | |
| 41 | 42C-13-17240 | DISK | 55001- | |
| 42 | 426-15-43360 | PISTON | 55001- | |
| 43 | 232-15-19220 | RING,SEAL (K2) | 55001- | |
| 44 | 568-15-12850 | RING,SEAL | 55001- | |
| 45 | 426-15-48692 | HUB | 55001- | |
| 46 | 426-15-43353 | SPACER | 55001- | |
| 47 | 426-15-49310 | ROLLER | 55001- | |
| 48 | 714-07-27161 | SPRING | 55001- | |
| 49 | 714-07-27151 | SPRING | 55001- | |
| 50 | 426-15-43291 | HOUSING | 55001- | |
| 51 | 04020-01842 | PIN,DOWEL | 55001- | |
| 52 | 07000-75360 | O-RING (K2) | 55001- | |
| 53 | 01252-41245 | BOLT | 55001- | |
| 54 | 01643-31232 | WASHER | 55001- | |
| 55 | 01010-81255 | BOLT | 55001- | |
| 56 | 01643-31232 | WASHER | 55001- | |
| 57 | 07043-70312 | PLUG | 55001- | |
| 58 | 426-15-41320 | SLEEVE | 55001- | |
| 59 | 07000-72012 | O-RING (K2) | 55001- | |
| 60 | 07000-72010 | O-RING (K2) | 55001- | |
| 61 | 426-15-48750 | FLANGE | 55001- | |
| 62 | 07000-73028 | O-RING (K2) | 55001- | |
| 63 | 01010-81045 | BOLT | 55001- | |
| 64 | 01643-31032 | WASHER | 55001- | |
| 65 | 708-8E-16150 | PLUG | 55001- | |
| 66 | 07002-61023 | O-RING (K2) | 55001- |
