| Item | Part No. | Part Name | Qty | Serial No. |

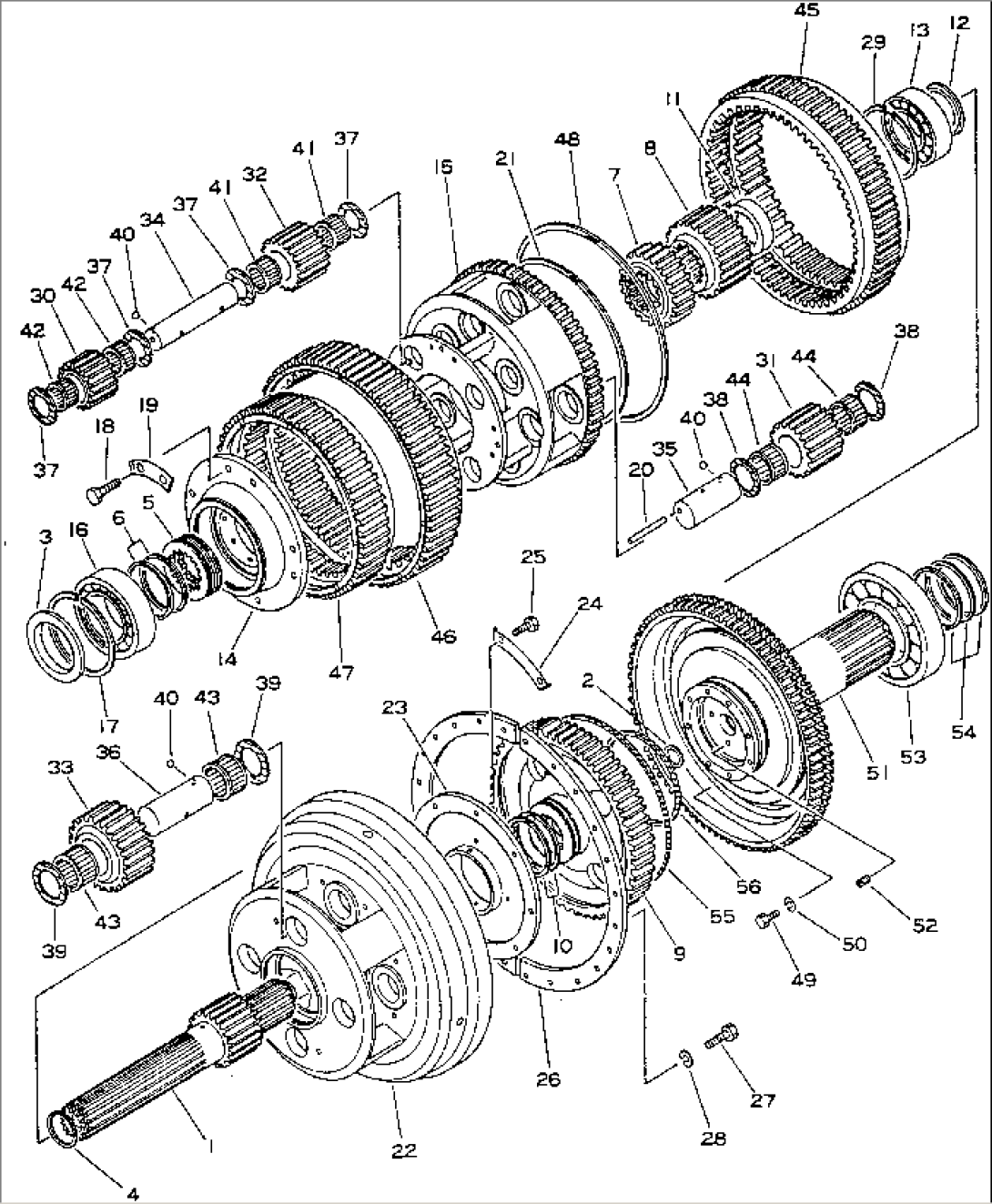

| (561-15-00010) | TRANSMISSION ASS'Y | 1002- | ||
| 1 | 561-15-12120 | SHAFT | 1002- | |
| 2 | 281-15-12890 | RING | 1002- | |
| 3 | 568-15-12260 | SPACER | 1002- | |
| 4 | 04064-06320 | RING | 1002- | |
| 5 | 568-15-12230 | COLLAR | 1002- | |
| 6 | 281-15-12841 | RING | 1002- | |
| 7 | 561-15-12240 | GEAR | 1002- | |
| 8 | 568-15-12250 | GEAR | 1002- | |
| 9 | 561-15-12270 | GEAR | 1002- | |
| 10 | 281-15-12841 | RING | 1002- | |
| 11 | 568-15-12280 | SPACER | 1002- | |
| 12 | 568-15-12290 | SPACER | 1002- | |
| 13 | 568-15-12930 | BEARING | 1002- | |
| 14 | 568-15-12340 | CAGE | 1002- | |
| 15 | 561-15-12350 | CARRIER | 1002- | |
| 16 | 06000-06216 | BEARING | 1002- | |
| 17 | 04077-00140 | RING | 1002- | |
| 18 | 01010-51022 | BOLT | 1002- | |
| 19 | 568-15-12470 | LOCK | 1002- | |
| 20 | 568-15-12590 | TUBE | 1002- | |
| 21 | 568-15-12950 | RING | 1002- | |
| 22 | 561-15-12360 | CARRIER | 1002- | |
| 23 | 561-15-12370 | CAGE | 1002- | |
| 24 | 568-15-12490 | LOCK | 1002- | |
| 25 | 01010-51020 | BOLT | 1002- | |
| 26 | 568-15-12390 | PLATE | 1002- | |
| 27 | 01010-51230 | BOLT | 1002- | |
| 28 | 01602-21236 | WASHER | 1002- | |
| 29 | 130-09-15450 | RING | 1002- | |
| 30 | 561-15-12420 | GEAR | 1002- | |
| 31 | 568-15-12430 | GEAR | 1002- | |
| 32 | 568-15-12440 | GEAR | 1002- | |
| 33 | 568-15-12450 | GEAR | 1002- | |
| 34 | 568-15-12520 | SHAFT | 1002- | |
| 35 | 568-15-12530 | SHAFT | 1002- | |
| 36 | 568-15-12540 | SHAFT | 1002- | |
| 37 | 568-15-12550 | WASHER | 1002- | |
| 38 | 566-15-12554 | WASHER | (1150)- | |
| \0\566-15-12553 | WASHER | 1002-(1149) | ||
| 39 | 566-15-12780 | WASHER | 1002- | |
| 40 | 04260-00635 | BALL | 1002- | |
| 41 | 09232-03832 | BEARING | 1002- | |
| 42 | 09232-03825 | BEARING | 1002- | |
| 43 | 568-15-19110 | BEARING | 1002- | |
| 44 | 568-15-12761 | BEARING | 1002- | |
| 45 | 561-15-12610 | GEAR | 1002- | |
| 46 | 561-15-12620 | GEAR | 1002- | |
| 47 | 561-15-12630 | GEAR | 1002- | |
| 48 | 568-15-12920 | RING | 1002- | |
| 49 | 01010-51025 | BOLT | 1002- | |
| 50 | 01602-21030 | WASHER | 1002- | |
| 561-15-00060 | SHAFT ASS'Y | 1002- | ||
| 51 | \6\ | SHAFT | 1002- | |
| 52 | 175-15-11230 | PLUG | 1002- | |
| 53 | 561-15-12910 | BEARING | 1002- | |
| 54 | 07018-21104 | RING | 1002- | |
| 55 | 562-15-19320 | RING | 1002- | |
| 56 | 562-15-19210 | RING | 1002- |
