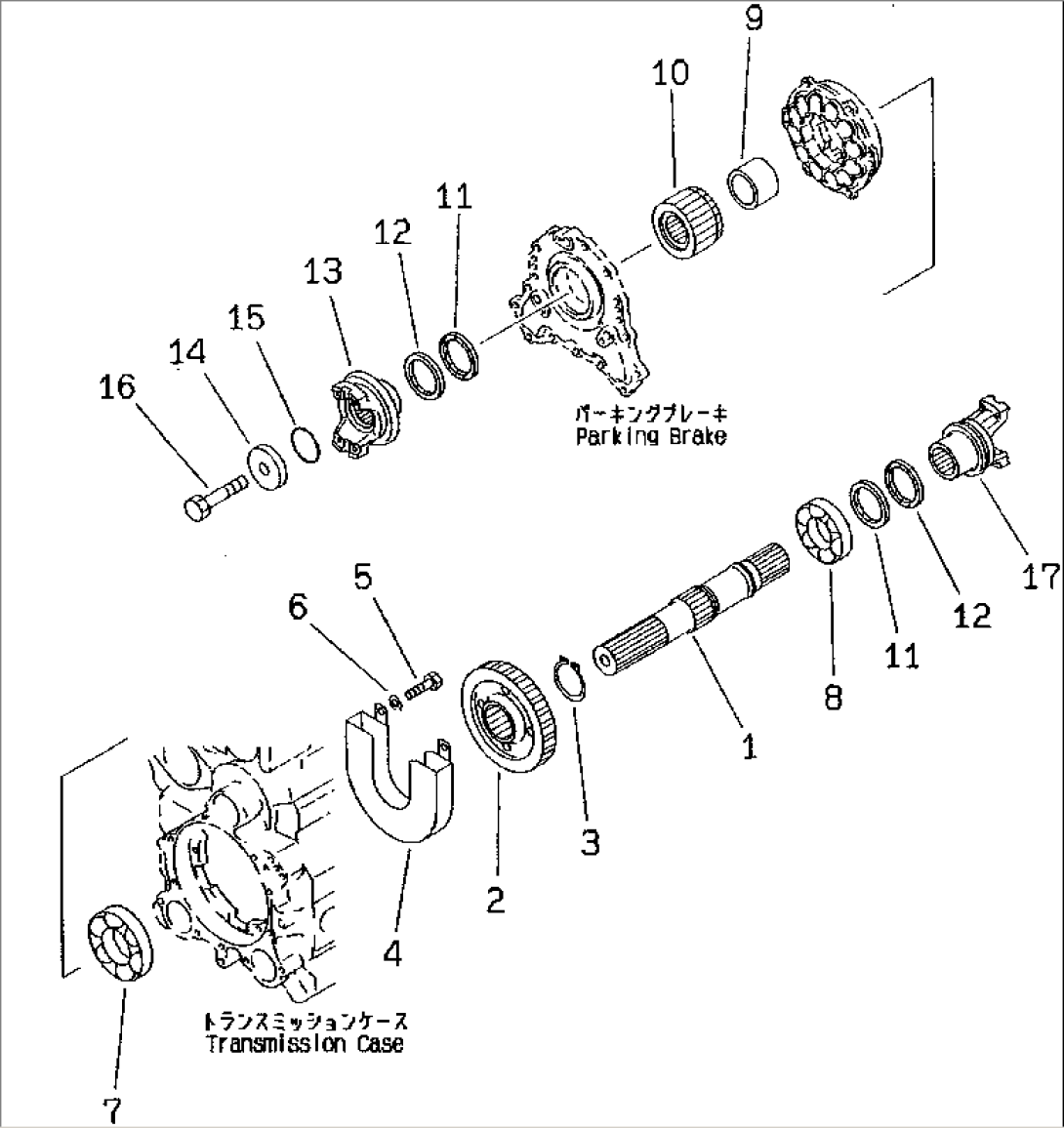

| Item | Part No. | Part Name | Qty | Serial No. |
| (714-16-10010) | TRANSMISSION ASS'Y | 50001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2201 TO 2271. | ||||
| 1 | 714-12-14520 | SHAFT,OUTPUT | 50001- | |
| 2 | 714-12-14620 | GEAR, 36 TEETH | 50001- | |
| 3 | 04064-07525 | RING,SNAP | 50001- | |
| 4 | 714-12-14910 | COVER,GEAR | 50001- | |
| 5 | 01010-61225 | BOLT | 50001- | |
| 6 | 01643-31232 | WASHER | 50001- | |
| 7 | 06002-30213 | BEARING | 50001- | |
| 8 | 06002-32013 | BEARING | 50001- | |
| 9 | 714-12-18680 | SPACER | 50001- | |
| 10 | 714-12-18610 | HUB | 50001- | |
| 11 | 714-12-19120 | SEAL,OIL (K1) | 50001- | |
| 12 | 714-12-19170 | SEAL,DUST (K1) | 50001- | |
| 13 | 714-16-14110 | COUPLING,FRONT | 50001- | |
| 13 | 423-20-15310 | DEFLECTOR | 50001- | |
| 14 | 423-22-21240 | WASHER | 50001- | |
| 15 | 07000-05055 | O-RING (K1) | 50001- | |
| 16 | 01011-62020 | BOLT | 50001- | |
| 17 | 714-16-14120 | COUPLING,REAR | 50001- | |
| 17 | 423-20-15310 | DEFLECTOR | 50001- |
