| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (425-15-31001) | TRANSMISSION ASS'Y | 55293- | ||
| (\0\425-15-31000) | TRANSMISSION ASS'Y | 55001-55292 | ||
| (425-15-31011) | TRANSMISSION ASS'Y,(WITH LOCK-UP) | 55293- | ||
| (\0\425-15-31010) | TRANSMISSION ASS'Y,(WITH LOCK-UP) | 55001-55292 | ||

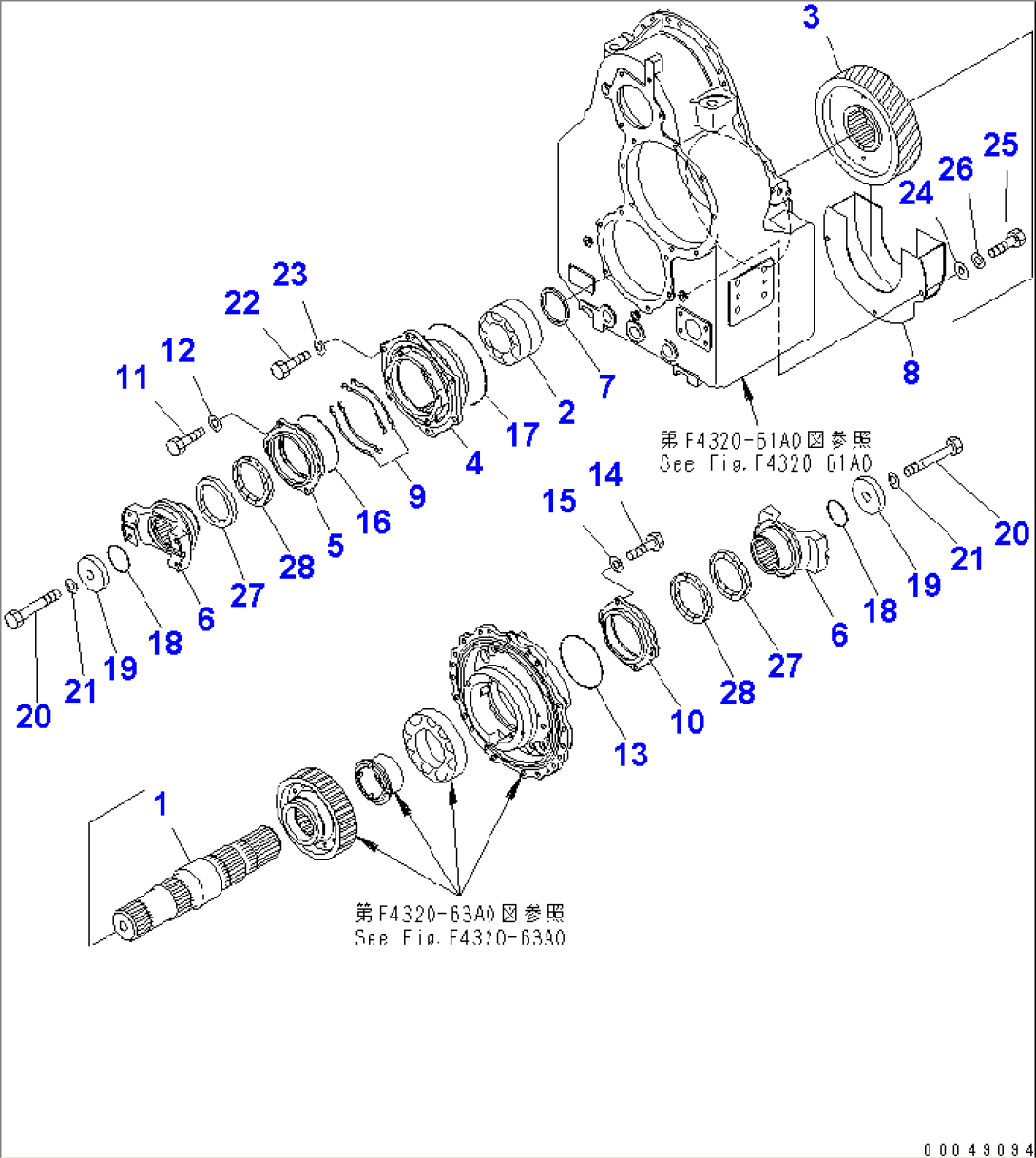

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-68A0. | ||||
| 1 | 425-15-33311 | SHAFT | 55001- | |
| 2 | 425-15-33391 | BEARING | (101043)- | |
| 2 | 425-15-33390 | BEARING | 55001-(101042) | |
| 3 | 425-15-33231 | GEAR | 55001- | |
| 4 | 425-15-33170 | CAGE | 55001- | |
| 5 | 425-15-33160 | COVER | 55001- | |
| 6 | 425-15-33651 | COUPLING | 55001- | |
| 7 | 425-15-33470 | SPACER | 55001- | |
| 8 | 425-15-33142 | BAFFLE | 55001- | |
| 9 | 425-15-33571 | SHIM (K2) | 55001- | |
| 9 | 425-15-33580 | SHIM (K2) | 55001- | |
| 9 | 425-15-33590 | SHIM (K2) | 55001- | |
| 10 | 426-15-43181 | COVER | 55001- | |
| 11 | 01010-81030 | BOLT | 55001- | |
| 12 | 01643-31032 | WASHER | 55001- | |
| 13 | 07000-75155 | O-RING (K2) | 55001- | |
| 14 | 01010-81030 | BOLT | 55001- | |
| 15 | 01643-31032 | WASHER | 55001- | |
| 16 | 07000-75150 | O-RING (K2) | 55001- | |
| 17 | 07000-75220 | O-RING (K2) | 55001- | |
| 18 | 07000-75075 | O-RING (K2) | 55001- | |
| 19 | 426-15-13260 | HOLDER | 55001- | |
| 20 | 01051-52420 | BOLT | 55001- | |
| 21 | 01643-32460 | WASHER | 55001- | |
| 22 | 01010-81235 | BOLT | 55001- | |
| 23 | 01643-31232 | WASHER | 55001- | |
| 24 | 203-54-56970 | WASHER | 55001- | |
| 25 | 01010-81030 | BOLT | 55001- | |
| 26 | 01643-31032 | WASHER | 55001- | |
| 27 | 714-07-18541 | SEAL,DUST (K2) | 55001- | |
| 28 | 07012-50105 | SEAL,OIL (K2) | 55001- |
