| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||

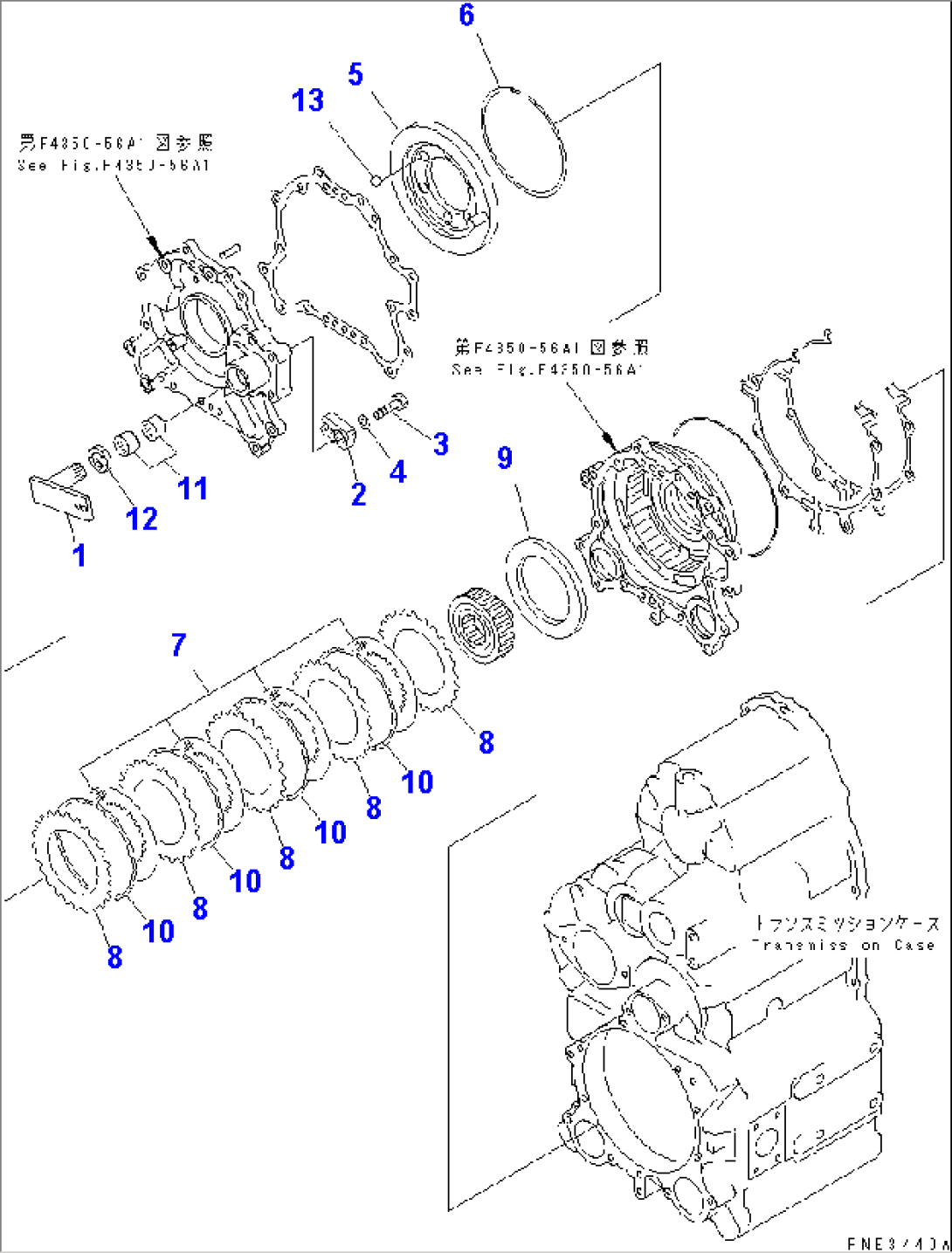

| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1 TO F4350-70A1. | ||||
| (714-13-10012) | TORQFLOW ASS'Y | 63473- | ||
| (714-13-10011) | TORQFLOW ASS'Y | 63001-63472 | ||
| (714-13-10210) | TORQFLOW ASS'Y | 64001- | ||
| 1 | 714-13-18513 | LEVER | 63001- | |
| 2 | 714-13-18651 | LEVER | 63001- | |
| 3 | 01010-81016 | BOLT | 63001- | |
| 4 | 417-43-16210 | WASHER | 63001- | |
| 5 | 714-13-18521 | PISTON,WITH PIN | 63001- | |
| 714-13-18331 | PISTON | 63001- | ||
| 714-13-18661 | PIN | 63001- | ||
| 6 | 714-07-12720 | RING,SNAP | 63001- | |
| 7 | 714-07-12670 | DISC | 63001- | |
| 8 | 714-07-12680 | PLATE,SEPARATE | 63001- | |
| 9 | 714-13-18630 | PLATE | 63001- | |
| 10 | 714-07-12691 | SPRING,WAVE | 64452- | |
| 714-07-12690 | SPRING,WAVE | 63001-64451 | ||
| 11 | 06120-03020 | BEARING,NEEDLE | 63001- | |
| 12 | 714-13-19810 | SEAL,OIL (K1) | 63001- | |
| 13 | 714-11-18340 | BALL | 63001- |
