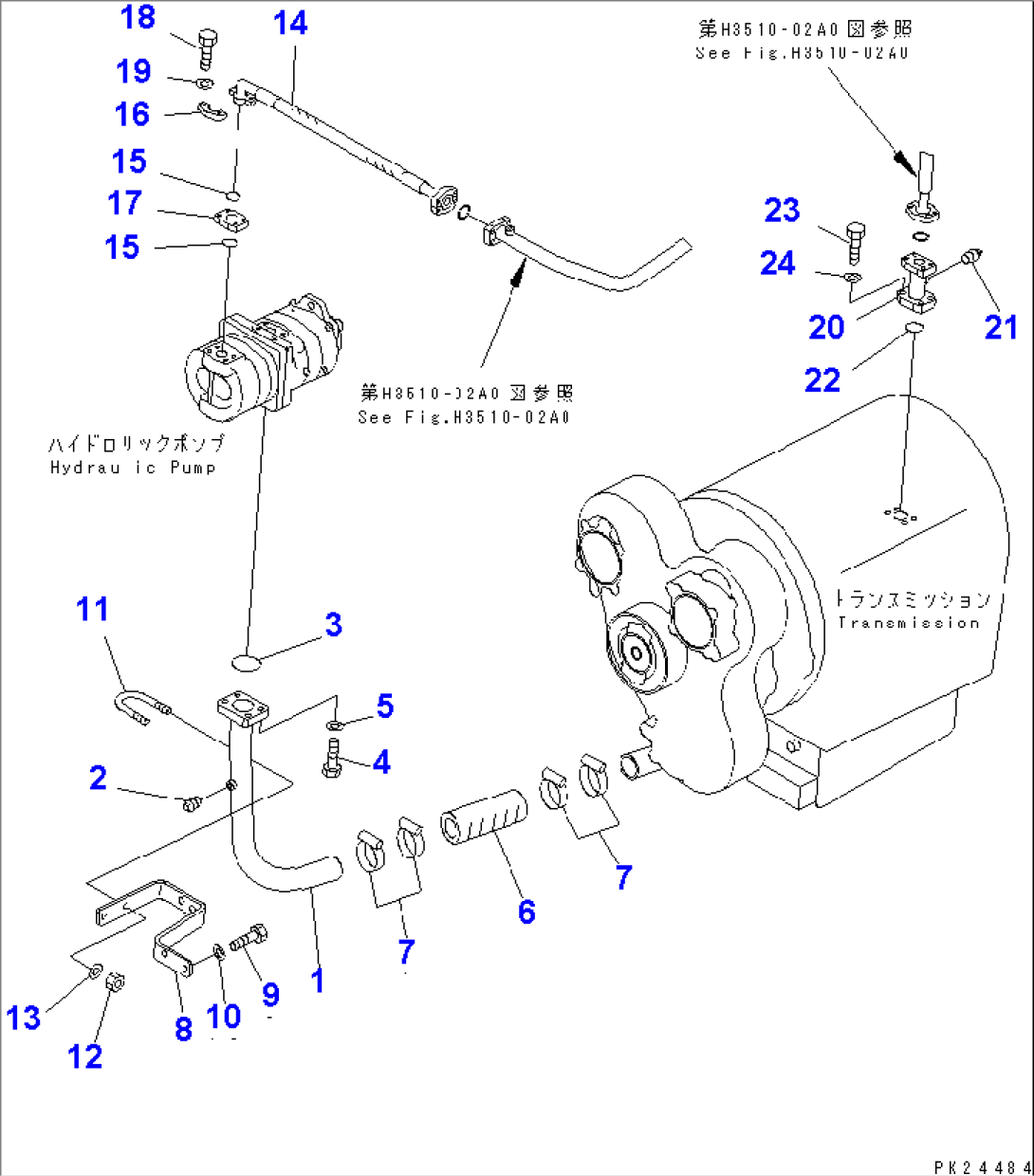

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-61-72110 | TUBE | 1001-1600 | |
| 2 | 07042-20108 | PLUG | 1001-1600 | |
| 3 | 07000-F2060 | O-RING | 1001-@ | |
| 4 | 07372-21235 | BOLT | 1001-@ | |
| 5 | 01643-51232 | WASHER | 1001-@ | |
| 6 | 07260-25822 | HOSE | 1001-1600 | |
| 7 | 07289-00080 | CLAMP | 1001-@ | |
| 8 | 567-61-72512 | BRACKET | 1001-1600 | |
| 9 | 01010-81230 | BOLT | 1001-@ | |
| 10 | 01643-31232 | WASHER | 1001-@ | |
| 11 | 07283-36155 | CLIP | 1001-@ | |
| 12 | 01599-01011 | NUT | 1001-1600 | |
| 13 | 01643-31032 | WASHER | 1001-1600 | |
| 14 | 07118-01005 | HOSE | 1001-@ | |
| 15 | 07000-F3032 | O-RING | 1001-@ | |
| 16 | 07371-31049 | FLANGE | 1001-@ | |
| 17 | 07373-31000 | SPACER | 1001-@ | |
| 18 | 07372-21040 | BOLT | 1001-@ | |
| 19 | 01643-51032 | WASHER | 1001-@ | |
| 20 | 567-61-72160 | TUBE | 1001-@ | |
| 21 | 07042-20108 | PLUG | 1001-1600 | |
| 22 | 07000-F3038 | O-RING | 1001-@ | |
| 23 | 07372-21040 | BOLT | 1001-@ | |
| 24 | 01643-51032 | WASHER | 1001-@ |
