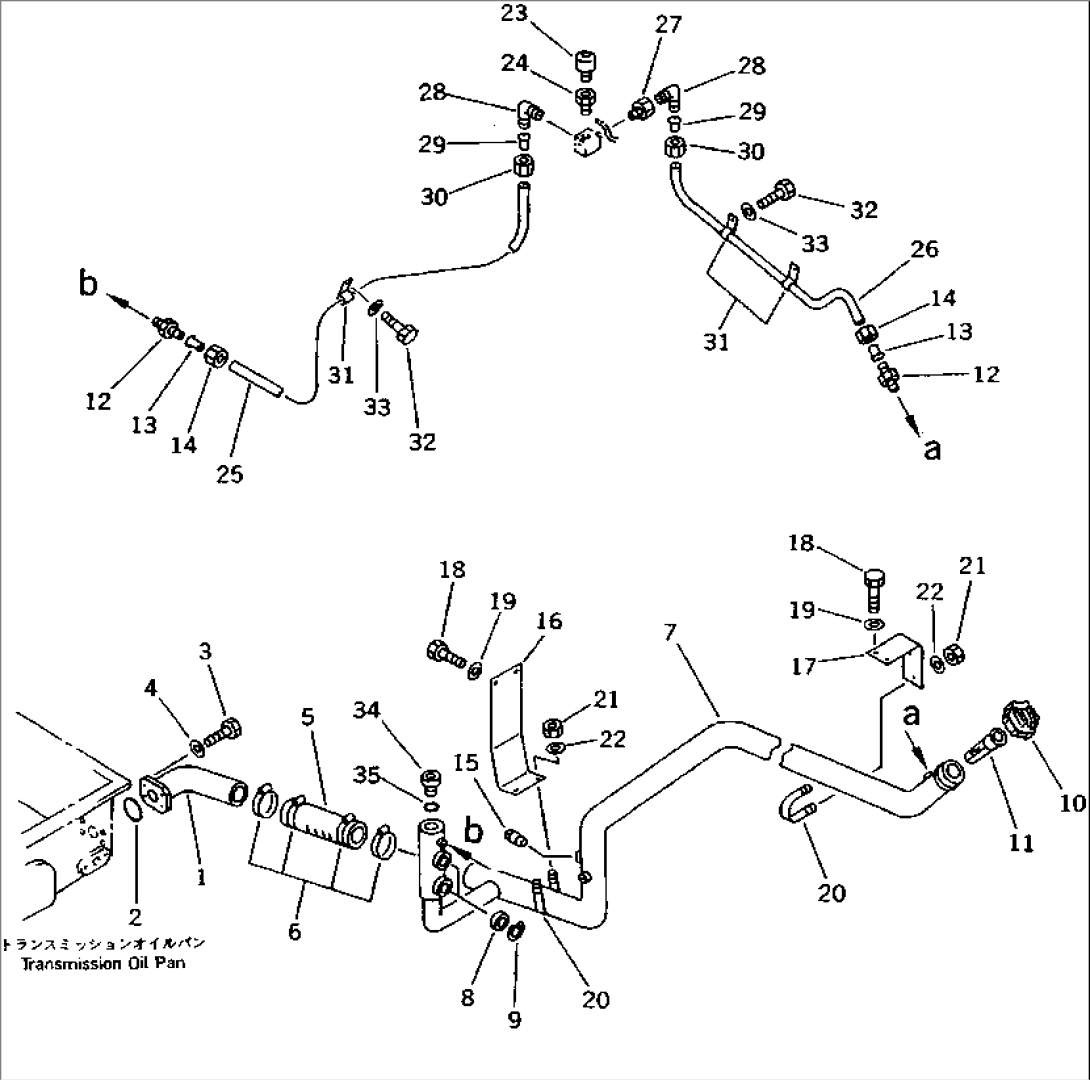

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-16-6A510 | TUBE | 2297-@ | |
| 561-16-61511 | TUBE | 2284-2296 | ||
| 561-16-6A510 | TUBE | 2282-2283 | ||
| 561-16-61511 | TUBE | 2001-2281 | ||
| 2 | 07000-22060 | O-RING | 2001-@ | |
| 3 | 07372-21240 | BOLT | 2001-2462 | |
| 4 | 01643-51232 | WASHER | 2001-@ | |
| 5 | 07260-25822 | HOSE | 2001-@ | |
| 6 | 205-09-61120 | CLAMP | 2002-@ | |
| 7 | 561-16-6A520 | TUBE | 2297-2462 | |
| 561-16-61522 | TUBE | 2284-2296 | ||
| 561-16-6A520 | TUBE | 2282-2283 | ||
| 561-16-61522 | TUBE | 2001-2281 | ||
| 8 | 07035-04010 | GAUGE | 2101-2462 | |
| 07035-14010 | GAUGE | 2001-2100 | ||
| 9 | 04065-04218 | RING,SNAP | 2001-2462 | |
| 10 | 07051-00000 | CAP | 2001-@ | |
| 11 | 07056-10045 | STRAINER | 2001-@ | |
| 12 | 07836-00817 | CONNECTOR | 2001-@ | |
| 13 | 07831-00813 | SLEEVE | 2001-@ | |
| 14 | 07832-00817 | NUT | 2001-@ | |
| 15 | 07042-20415 | PLUG | 2001-@ | |
| 16 | 561-16-61542 | BRACKET | 2297-@ | |
| 561-16-61541 | BRACKET | 2284-2296 | ||
| 561-16-61542 | BRACKET | 2282-2283 | ||
| 561-16-61541 | BRACKET | 2001-2281 | ||
| 17 | 561-16-61551 | BRACKET | 2001-@ | |
| 18 | 01010-51230 | BOLT | 2001-@ | |
| 19 | 01643-31232 | WASHER | 2001-@ | |
| 20 | 07283-26163 | CLIP | 2001-@ | |
| 21 | 01599-01011 | NUT | 2001-@ | |
| 22 | 01643-31032 | WASHER | 2001-@ | |
| 23 | 07030-10252 | BREATHER | 2001-@ | |
| 24 | 07326-10302 | ADAPTER | 2001-@ | |
| 25 | 07822-00816 | TUBE | 2001-@ | |
| 26 | 07822-00810 | TUBE | 2001-@ | |
| 27 | 582-01-12910 | NIPPLE | 2001-@ | |
| 28 | 07834-00817 | ELBOW | 2001-@ | |
| 29 | 07831-00813 | SLEEVE | 2001-@ | |
| 30 | 07832-00817 | NUT | 2001-@ | |
| 31 | 08036-01414 | CLIP | 2001-@ | |
| 32 | 01010-51020 | BOLT | 2001-@ | |
| 33 | 01643-31032 | WASHER | 2001-@ | |
| 34 | 07040-13618 | PLUG | 2001-@ | |
| 35 | 07002-23634 | O-RING | 2001-@ |
