| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-61-84661 | TUBE | 7169- | |
| 2 | 07000-F2060 | O-RING | 7169- | |
| 3 | 07372-21240 | BOLT | 7169- | |
| 4 | 01643-51232 | WASHER | 7169- | |
| 5 | 07040-11007 | PLUG | 7169- | |
| 6 | 07002-21023 | O-RING | 7169- | |
| 7 | 07296-020A7 | HOSE | 7169- | |
| 8 | 07371-32076 | FLANGE | 7169- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 7 s/n 7001 8172
- Torque converter and transmission
- Transmission piping(pump to brake)(#7169 )
Поиск по каталогу

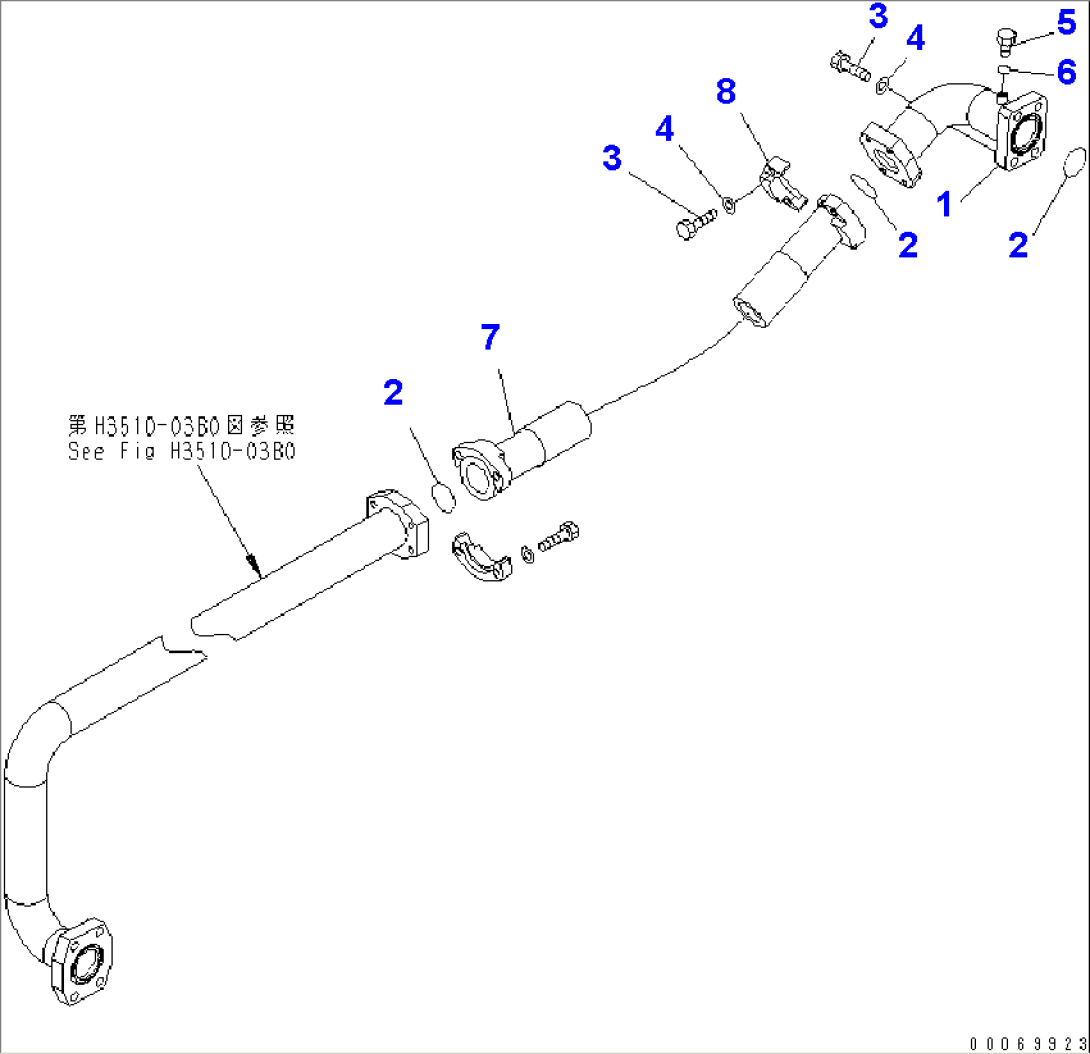

TRANSMISSION PIPING(PUMP TO BRAKE)(#7169-)
