| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (56B-13-20002) | TRANSMISSION ASS'Y | 2017- | ||
| (\0\56B-13-20001) | TRANSMISSION ASS'Y | (100120)-00002016 | ||
| (\0\56B-13-20000) | TRANSMISSION ASS'Y | 2001-(100119) | ||

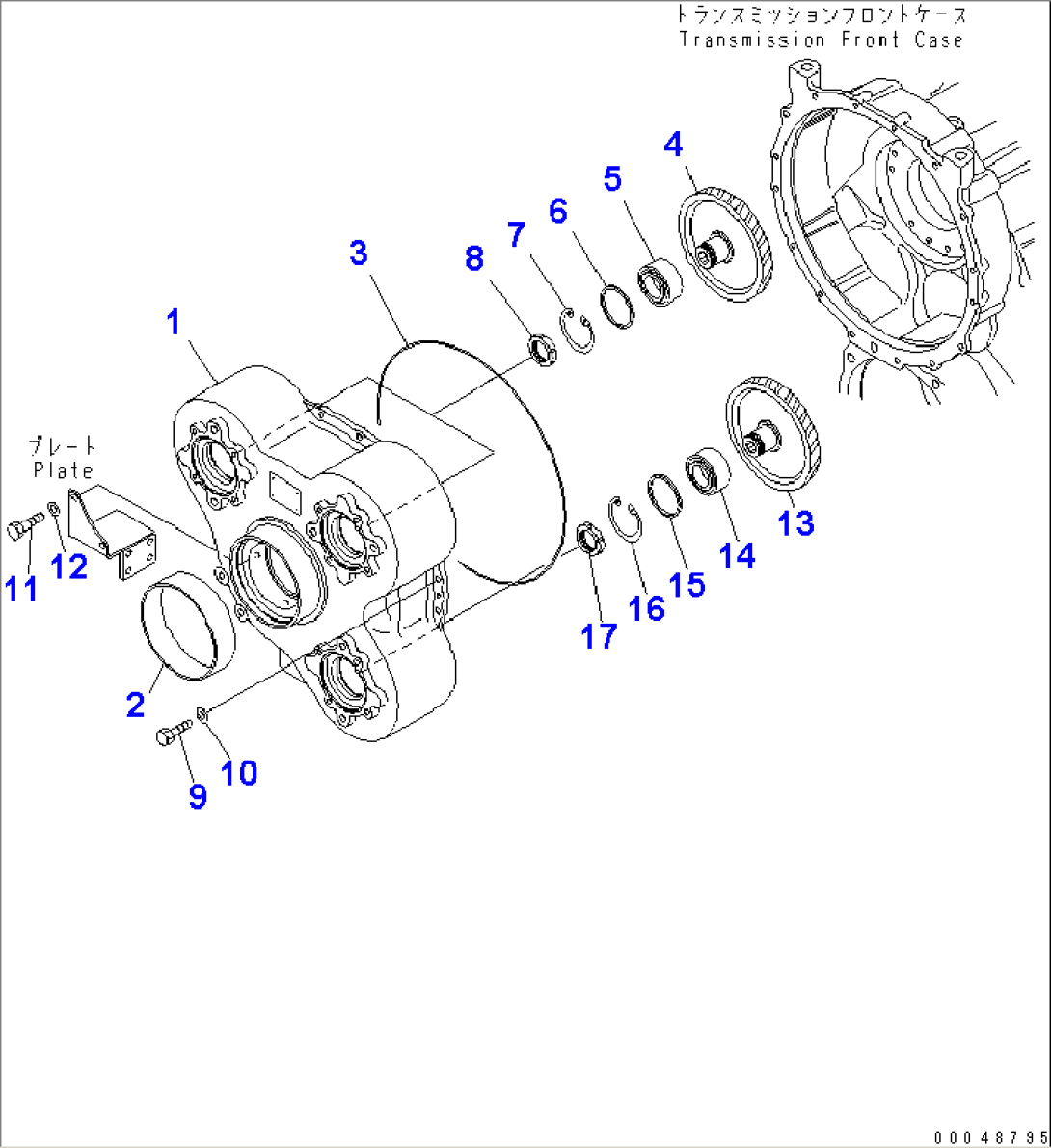

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F3300-51A0 TO F3300-64A0. | ||||
| 1 | 566-13-83131 | HOUSING | 2001- | |
| 2 | 566-13-83381 | BUSHING | 2001- | |
| 3 | 566-13-43140 | O-RING (K2) | 2001- | |
| 4 | 56B-13-14210 | GEAR | 2001- | |
| 5 | 711-35-14230 | BEARING | 2001- | |
| 6 | 711-35-14120 | PLATE | 2001- | |
| 7 | 04065-09530 | RING,SNAP | 2001- | |
| 8 | 01530-04812 | NUT | 2001- | |
| 9 | 01010-81235 | BOLT | 2001- | |
| 10 | 01643-31232 | WASHER | 2001- | |
| 11 | 01010-81245 | BOLT | 2001- | |
| 12 | 01643-31232 | WASHER | 2001- | |
| 13 | 56B-13-14210 | GEAR | 2001- | |
| 14 | 711-35-14230 | BEARING | 2001- | |
| 15 | 711-35-14120 | PLATE | 2001- | |
| 16 | 04065-09530 | RING,SNAP | 2001- | |
| 17 | 01530-04812 | NUT | 2001- |
