| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (416-15-21113) | TRANSMISSION ASS'Y | (52935)- | ||
| (\2\416-15-21112) | TRANSMISSION ASS'Y | ((52935)-00054253) | ||
| (416-15-21111) | TRANSMISSION ASS'Y | 53001-(52934) | ||

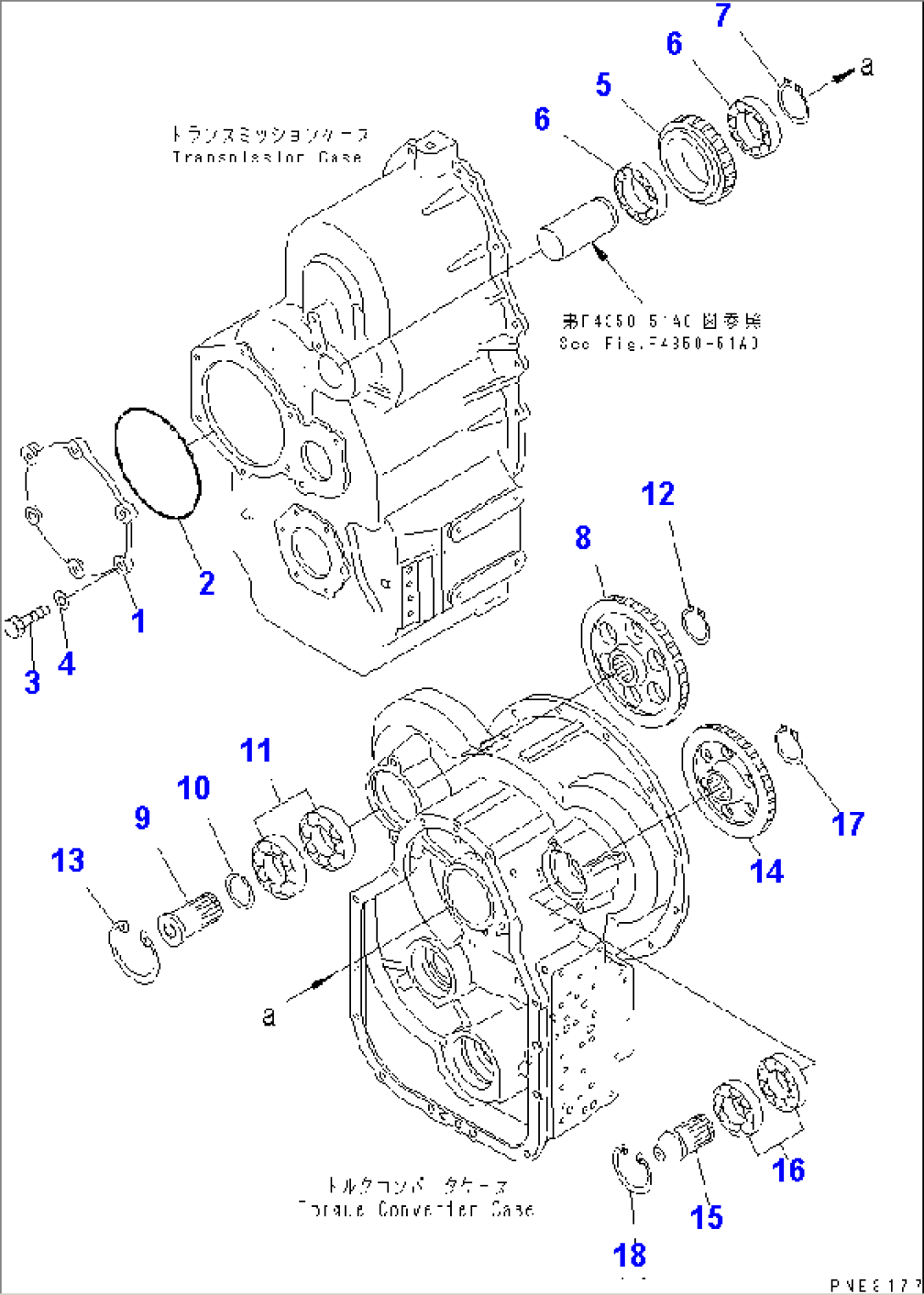

| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-68A0. | ||||
| 1 | 417-15-14140 | COVER | 53001- | |
| 2 | 07000-05200 | O-RING (K1) | 53001- | |
| 3 | 01010-81235 | BOLT | 53001- | |
| 4 | 01643-31232 | WASHER | 53001- | |
| 5 | 417-15-12823 | GEAR, 31 TEETH,IDLER | 53001- | |
| 6 | 06033-06211 | BEARING,BALL | 53001- | |
| 7 | 04064-05520 | RING,SNAP | 53001- | |
| 8 | 417-15-14130 | GEAR, 44 TEETH | 53001- | |
| 9 | 419-15-14111 | SHAFT | 53001- | |
| 10 | 419-15-14910 | RING,SNAP | 53001- | |
| 11 | 06030-06309 | BEARING | 53001- | |
| 12 | 04064-04518 | RING,SNAP | 53001- | |
| 13 | 04065-01030 | RING,SNAP | 53001- | |
| 14 | 419-15-14150 | GEAR, 39 TEETH | 53001- | |
| 15 | 417-15-14110 | SHAFT,PUMP | 53001- | |
| 16 | 06030-06009 | BEARING | 53001- | |
| 17 | 04064-04518 | RING,SNAP | 53001- | |
| 18 | 04065-07525 | RING | 53001- |
